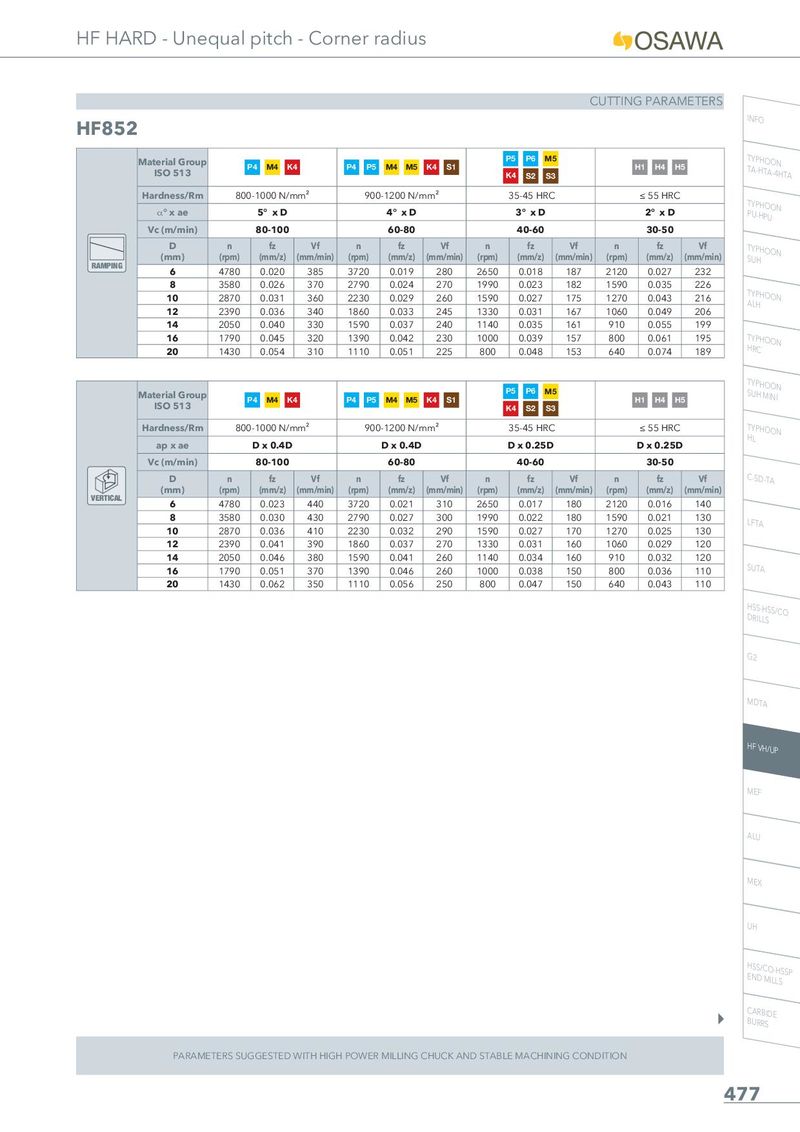

CUTTING PARAMETERS

HF852 INFO

	Material Group ISO 513		P4 M4 K	4	P4 P5	M4 M5	K4 S1		P5 P6 M5 K4 S2 S3			H1 H4 H5
	Hardness/Rm	800	-1000 N/m	m²	900	-1200 N/m	m²		35-45 HRC			≤ 55 HRC
	�° x ae		5° x D			4° x D			3° x D			2° x D
	Vc (m/min)		80-100			60-80			40-60			30-50
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
RAMPING	6	4780	0.020	385	3720	0.019	280	2650	0.018	187	2120	0.027	232
	8	3580	0.026	370	2790	0.024	270	1990	0.023	182	1590	0.035	226
	10	2870	0.031	360	2230	0.029	260	1590	0.027	175	1270	0.043	216
	12	2390	0.036	340	1860	0.033	245	1330	0.031	167	1060	0.049	206
	14	2050	0.040	330	1590	0.037	240	1140	0.035	161	910	0.055	199
	16	1790	0.045	320	1390	0.042	230	1000	0.039	157	800	0.061	195
	20	1430	0.054	310	1110	0.051	225	800	0.048	153	640	0.074	189
	Material Group ISO 513		P4 M4 K	4	P4 P5	M4 M5	K4 S1		P5 P6 M5 K4 S2 S3			H1 H4 H5
	Hardness/Rm	800	-1000 N/m	m²	900	-1200 N/m	m²		35-45 HRC			≤ 55 HRC
	ap x ae		D x 0.4D			D x 0.4D			D x 0.25D			D x 0.25D
	Vc (m/min)		80-100			60-80			40-60			30-50
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
VERTICAL	6	4780	0.023	440	3720	0.021	310	2650	0.017	180	2120	0.016	140
	8	3580	0.030	430	2790	0.027	300	1990	0.022	180	1590	0.021	130
	10	2870	0.036	410	2230	0.032	290	1590	0.027	170	1270	0.025	130
	12	2390	0.041	390	1860	0.037	270	1330	0.031	160	1060	0.029	120
	14	2050	0.046	380	1590	0.041	260	1140	0.034	160	910	0.032	120
	16	1790	0.051	370	1390	0.046	260	1000	0.038	150	800	0.036	110
	20	1430	0.062	350	1110	0.056	250	800	0.047	150	640	0.043	110
