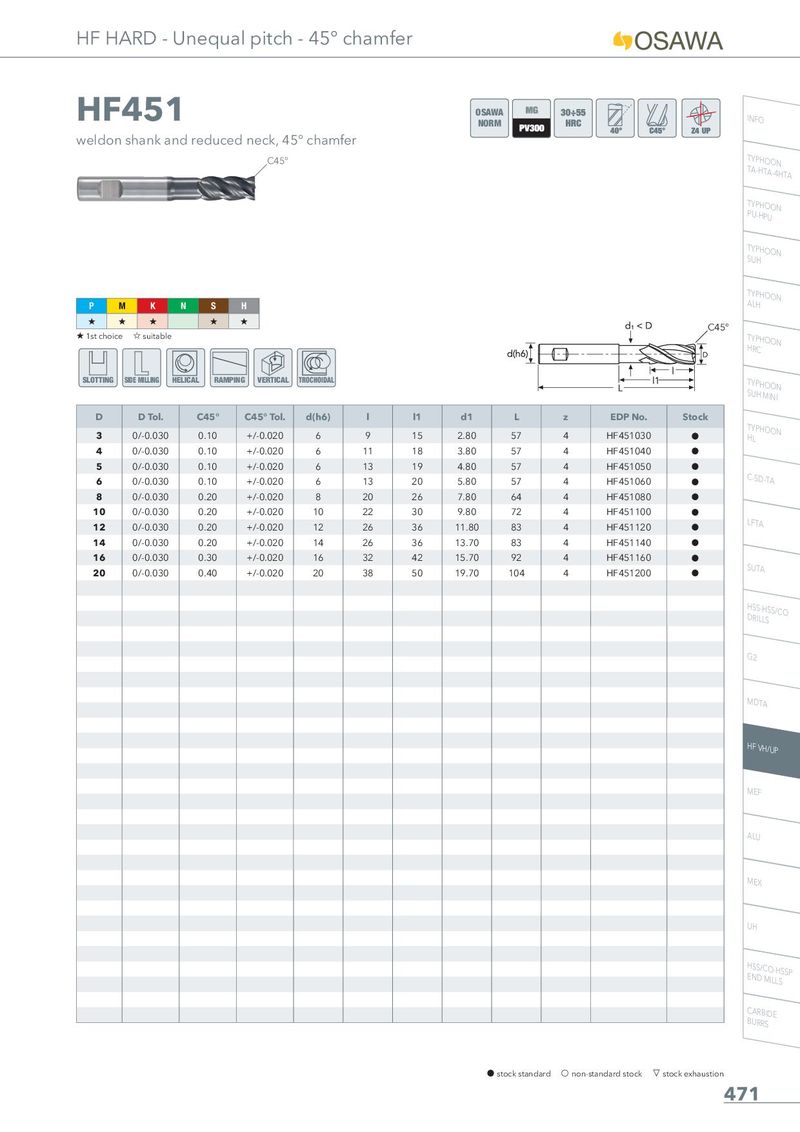

HF451
weldon shank and reduced neck, 45° chamfer
C45°
OSAWA NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P | M K | N S | H | ||||||||
| � | � � | � | � | ||||||||
| �1st choic SLOTTING | e�suitable SIDE MILLING | HELICAL RAM | PING VERTICAL | TROCHOIDAL | |||||||
| D | D Tol. | C45° | C45° Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 3 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 9 | 15 | 2.80 | 57 | 4 | HF451030 | h |
| 4 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 11 | 18 | 3.80 | 57 | 4 | HF451040 | h |
| 5 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 13 | 19 | 4.80 | 57 | 4 | HF451050 | h |
| 6 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 13 | 20 | 5.80 | 57 | 4 | HF451060 | h |
| 8 | 0/-0.030 | 0.20 | +/-0.020 | 8 | 20 | 26 | 7.80 | 64 | 4 | HF451080 | h |
| 10 | 0/-0.030 | 0.20 | +/-0.020 | 10 | 22 | 30 | 9.80 | 72 | 4 | HF451100 | h |
| 12 | 0/-0.030 | 0.20 | +/-0.020 | 12 | 26 | 36 | 11.80 | 83 | 4 | HF451120 | h |
| 14 | 0/-0.030 | 0.20 | +/-0.020 | 14 | 26 | 36 | 13.70 | 83 | 4 | HF451140 | h |
| 16 | 0/-0.030 | 0.30 | +/-0.020 | 16 | 32 | 42 | 15.70 | 92 | 4 | HF451160 | h |
| 20 | 0/-0.030 | 0.40 | +/-0.020 | 20 | 38 | 50 | 19.70 | 104 | 4 | HF451200 | h |
