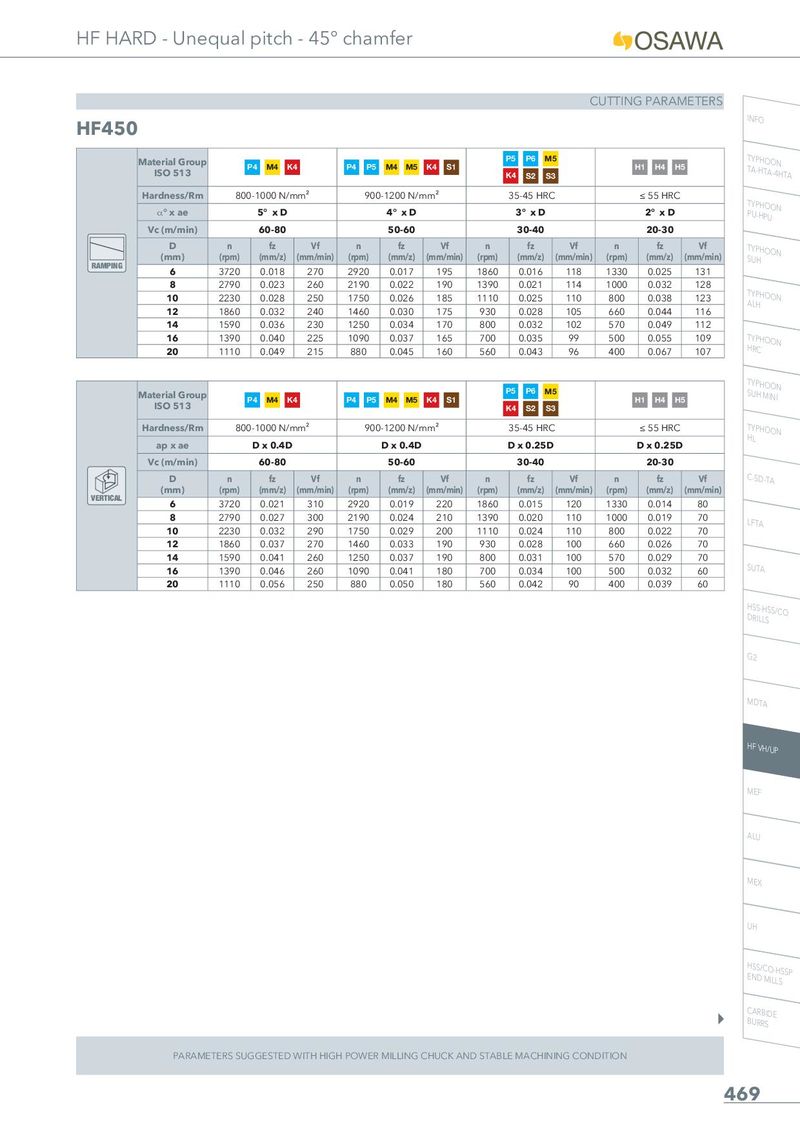

HF HARD - Unequal pitch - 45° chamfer CUTTING PARAMETERS HF450 INFO Material Group P5 P6 M5 TTYAP-HHTOAO-4NHTA ISO 513 P4 M4 K4 P4 P5 M4 M5 K4 S1 H1 H4 H5 K4 S2 S3 Hardness/Rm 800-1000 N/mm² 900-1200 N/mm² 35-45 HRC ≤ 55 HRC TPYUP-HHPOUON _° x ae 5° x D 4° x D 3° x D 2° x D Vc (m/min) 60-80 50-60 30-40 20-30 D n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) RAMPING 6 3720 0.018 270 2920 0.017 195 1860 0.016 118 1330 0.025 131 8 2790 0.023 260 2190 0.022 190 1390 0.021 114 1000 0.032 128 TAYLPHHOON 10 2230 0.028 250 1750 0.026 185 1110 0.025 110 800 0.038 123 12 1860 0.032 240 1460 0.030 175 930 0.028 105 660 0.044 116 14 1590 0.036 230 1250 0.034 170 800 0.032 102 570 0.049 112 16 1390 0.040 225 1090 0.037 165 700 0.035 99 500 0.055 109 THYRPCHOON 20 1110 0.049 215 880 0.045 160 560 0.043 96 400 0.067 107 Material Group P5 P6 M5 TSUYPHHMOIONIN ISO 513 P4 M4 K4 P4 P5 M4 M5 K4 S1 H1 H4 H5 K4 S2 S3 Hardness/Rm 800-1000 N/mm² 900-1200 N/mm² 35-45 HRC ≤ 55 HRC THYLPHOON ap x ae D x 0.4D D x 0.4D D x 0.25D D x 0.25D Vc (m/min) 60-80 50-60 30-40 20-30 D n fz Vf n fz Vf n fz Vf n fz Vf C-SD-TA (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) VERTICAL 6 3720 0.021 310 2920 0.019 220 1860 0.015 120 1330 0.014 80 8 2790 0.027 300 2190 0.024 210 1390 0.020 110 1000 0.019 70 LFTA 10 2230 0.032 290 1750 0.029 200 1110 0.024 110 800 0.022 70 12 1860 0.037 270 1460 0.033 190 930 0.028 100 660 0.026 70 14 1590 0.041 260 1250 0.037 190 800 0.031 100 570 0.029 70 16 1390 0.046 260 1090 0.041 180 700 0.034 100 500 0.032 60 SUTA 20 1110 0.056 250 880 0.050 180 560 0.042 90 400 0.039 60 HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION 469
