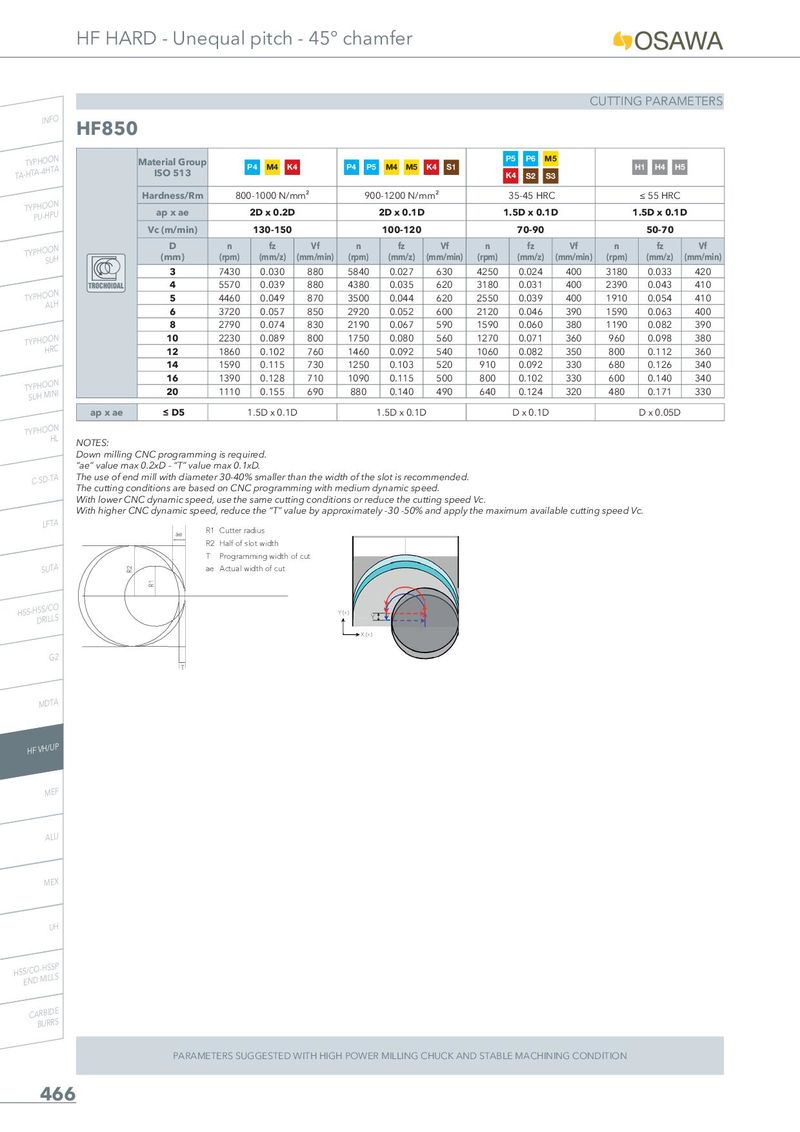

HF HARD - Unequal pitch - 45° chamfer CUTTING PARAMETERS INFO HF850 TA-THYTPAH-4OHOTNA Material Group P5 P6 M5 ISO 513 P4 M4 K4 P4 P5 M4 M5 K4 S1 H1 H4 H5 K4 S2 S3 Hardness/Rm 800-1000 N/mm² 900-1200 N/mm² 35-45 HRC ≤ 55 HRC TYPPHUO-HOPNU ap x ae 2D x 0.2D 2D x 0.1D 1.5D x 0.1D 1.5D x 0.1D Vc (m/min) 130-150 100-120 70-90 50-70 TYPHOSOUNH D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 3 7430 0.030 880 5840 0.027 630 4250 0.024 400 3180 0.033 420 TROCHOIDAL 4 5570 0.039 880 4380 0.035 620 3180 0.031 400 2390 0.043 410 TYPHOAOLNH 5 4460 0.049 870 3500 0.044 620 2550 0.039 400 1910 0.054 410 6 3720 0.057 850 2920 0.052 600 2120 0.046 390 1590 0.063 400 8 2790 0.074 830 2190 0.067 590 1590 0.060 380 1190 0.082 390 TYPHOHORNC 10 2230 0.089 800 1750 0.080 560 1270 0.071 360 960 0.098 380 12 1860 0.102 760 1460 0.092 540 1060 0.082 350 800 0.112 360 14 1590 0.115 730 1250 0.103 520 910 0.092 330 680 0.126 340 TSYUPHHOMOINNI 16 1390 0.128 710 1090 0.115 500 800 0.102 330 600 0.140 340 20 1110 0.155 690 880 0.140 490 640 0.124 320 480 0.171 330 ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D D x 0.1D D x 0.05D TYPHOOHNL NOTES: Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. C-SD-TA The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. LFTA R1 Cutter radius ae R2 Half of slot width T Programming width of cut SUTA R2 ae Actual width of cut R1 HSS-HDSSR/ILCLOS Y (+) Y X (+) G2 T MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION 466
