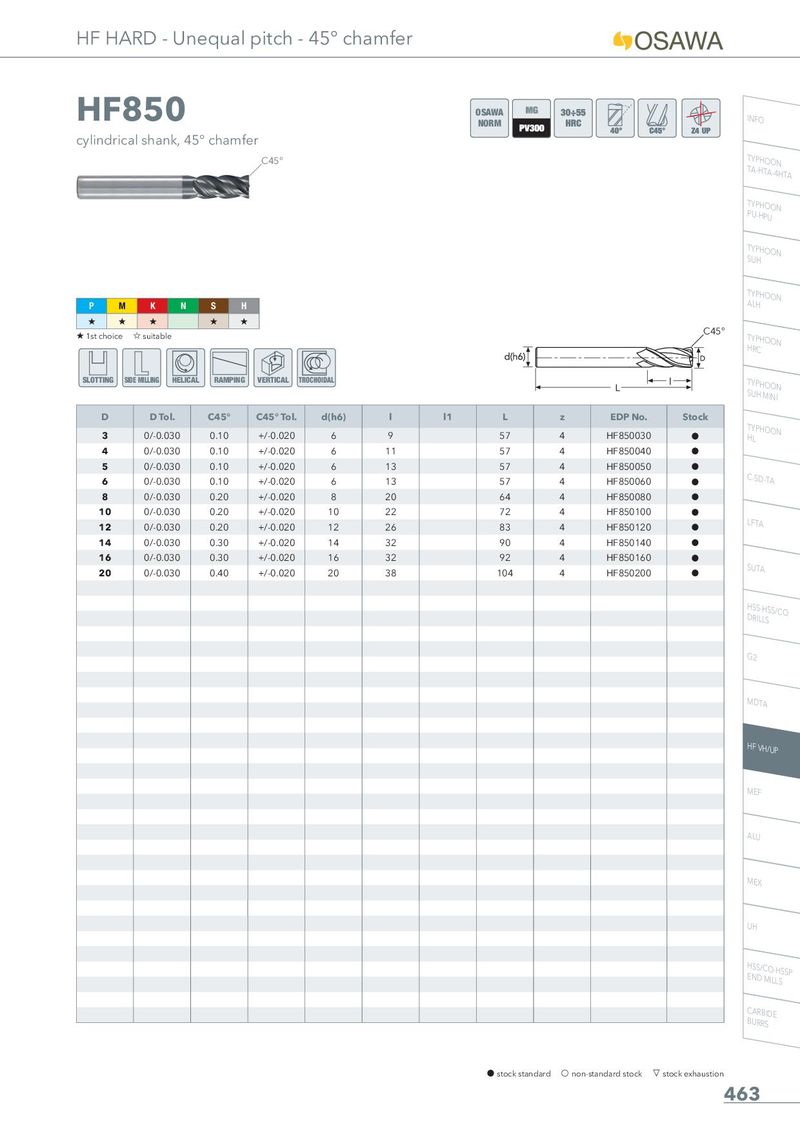

HF850
cylindrical shank, 45° chamfer
C45°
OSAWA NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | ||||||||
| � � | � | � � | ||||||||
| �1st choice | �suitable | |||||||||
| SLOTTING S | IDE MILLING HELICAL | RAMPING | VERTICAL | TROCHOIDAL | ||||||
| D | D Tol. | C45° | C45° Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 3 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 9 | 57 | 4 | HF850030 | h | |
| 4 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 11 | 57 | 4 | HF850040 | h | |
| 5 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 13 | 57 | 4 | HF850050 | h | |
| 6 | 0/-0.030 | 0.10 | +/-0.020 | 6 | 13 | 57 | 4 | HF850060 | h | |
| 8 | 0/-0.030 | 0.20 | +/-0.020 | 8 | 20 | 64 | 4 | HF850080 | h | |
| 10 | 0/-0.030 | 0.20 | +/-0.020 | 10 | 22 | 72 | 4 | HF850100 | h | |
| 12 | 0/-0.030 | 0.20 | +/-0.020 | 12 | 26 | 83 | 4 | HF850120 | h | |
| 14 | 0/-0.030 | 0.30 | +/-0.020 | 14 | 32 | 90 | 4 | HF850140 | h | |
| 16 | 0/-0.030 | 0.30 | +/-0.020 | 16 | 32 | 92 | 4 | HF850160 | h | |
| 20 | 0/-0.030 | 0.40 | +/-0.020 | 20 | 38 | 104 | 4 | HF850200 | h |
