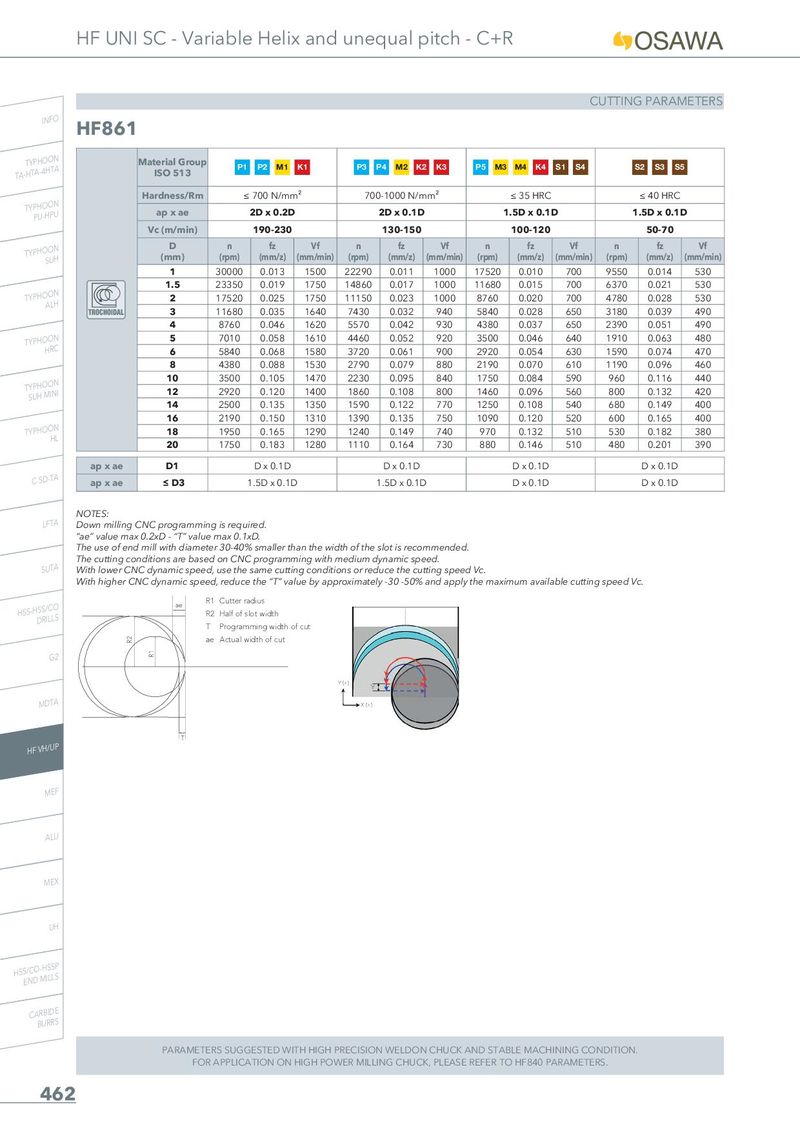

Общий каталог Osawa 2018 - страница 464

Предыдущая страница Следующая страница

Навигация

CUTTING PARAMETERS

INFO HF861

Material Group ISO 513P1P2 M1K1P3P4 M2 K2K3P5 M3M4 K4S1 S4S2 S3 S5
Hardness/Rm≤700 N/mm²700-1000 N/mm²≤ 35 HRC≤ 40 HRC
ap x ae2D x 0.2D2D x 0.1D1.5D x 0.1D1.5D x 0.1D
Vc (m/min)190-230130-150100-12050-70
D (mm)n (rpm)fz (mm/z)Vf (mm/min)n (rpm)fz (mm/z) (Vf mm/min)n (rpm)fz (mm/z)Vf (mm/min)n (rpm)fz (mm/z)Vf (mm/min)
1300000.0131500222900.0111000175200.01070095500.014530
1.5233500.0191750148600.0171000116800.01570063700.021530
2175200.0251750111500.023100087600.02070047800.028530
TROCHOIDAL3116800.035164074300.03294058400.02865031800.039490
487600.046162055700.04293043800.03765023900.051490
570100.058161044600.05292035000.04664019100.063480
658400.068158037200.06190029200.05463015900.074470
843800.088153027900.07988021900.07061011900.096460
1035000.105147022300.09584017500.0845909600.116440
1229200.120140018600.10880014600.0965608000.132420
1425000.135135015900.12277012500.1085406800.149400
1621900.150131013900.13575010900.1205206000.165400
1819500.165129012400.1497409700.1325105300.182380
2017500.183128011100.1647308800.1465104800.201390
ap x aeD1D x 0.1DD x 0.1DD x 0.1DD x 0.1D
ap x ae≤ D31.5D x 0.1D1.5D x 0.1DD x 0.1DD x 0.1D

PU-HPU

SUH

ALH

TYPHOON

SUH MINI

HL

NOTES: LFTA Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. SUTA With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. R1 Cutter radius ae HSS-HSS/CO R2 Half of slot width DRILLS T Programming width of cut ae Actual width of cut G2 Y (+) Y MDTA X (+)

T HF VH/UP

MEF

ALU

MEX

UH
