CUTTING PARAMETERS

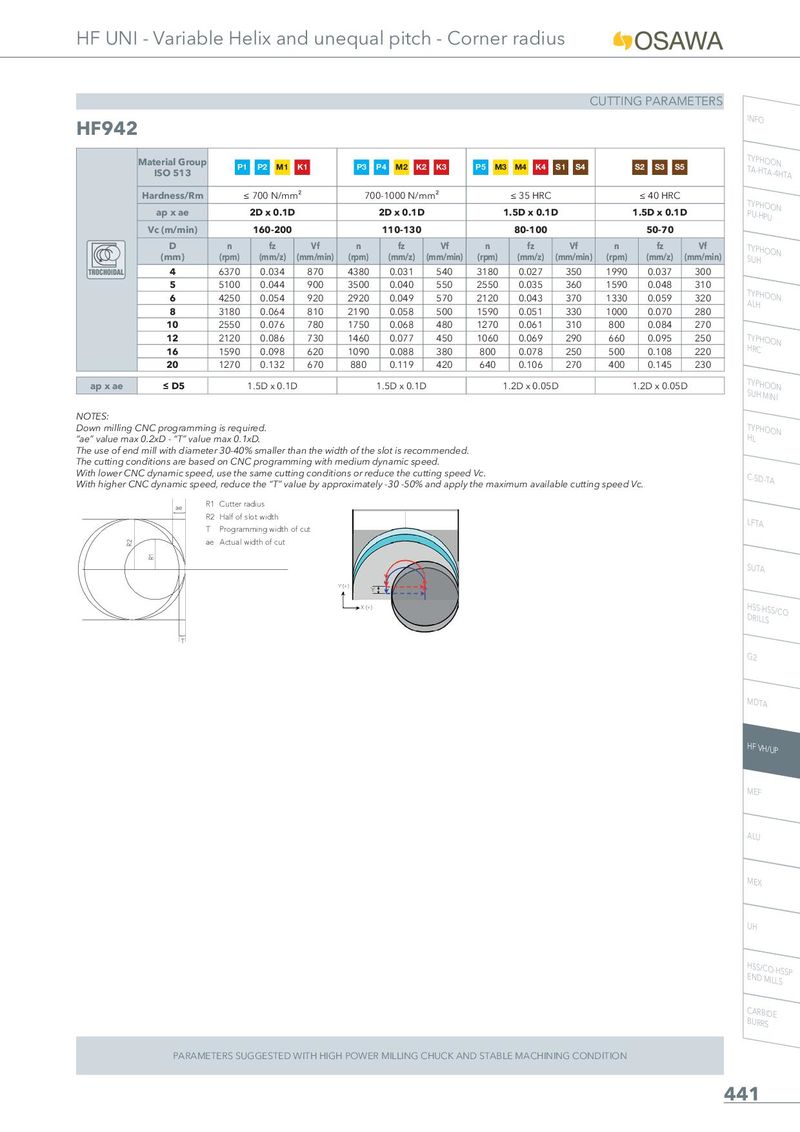

HF942 INFO

	Material Group ISO 513	P1	P2 M1	K1	P3	P4 M2 K2	K3	P5 M3	M4 K4	S1 S4		S2 S3 S5
	Hardness/Rm	≤	700 N/mm	²	70	0-1000 N/m	m²		≤ 35 HRC			≤ 40 HRC
	ap x ae		2D x 0.1D			2D x 0.1D			1.5D x 0.1D			1.5D x 0.1	D
	Vc (m/min)		160-200			110-130			80-100			50-70
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
TROCHOIDAL	4	6370	0.034	870	4380	0.031	540	3180	0.027	350	1990	0.037	300
	5	5100	0.044	900	3500	0.040	550	2550	0.035	360	1590	0.048	310
	6	4250	0.054	920	2920	0.049	570	2120	0.043	370	1330	0.059	320
	8	3180	0.064	810	2190	0.058	500	1590	0.051	330	1000	0.070	280
	10	2550	0.076	780	1750	0.068	480	1270	0.061	310	800	0.084	270
	12	2120	0.086	730	1460	0.077	450	1060	0.069	290	660	0.095	250
	16	1590	0.098	620	1090	0.088	380	800	0.078	250	500	0.108	220
	20	1270	0.132	670	880	0.119	420	640	0.106	270	400	0.145	230
ap x ae	≤ D5		1.5D x 0.1D			1.5D x 0.1D			1.2D x 0.05D		1	.2D x 0.05	D

TYPHOON

TYPHOON ALH

NOTES: Down milling CNC programming is required. “ae” value max 0.2xD - “T” value max 0.1xD. The use of end mill with diameter 30-40% smaller than the width of the slot is recommended. The cutting conditions are based on CNC programming with medium dynamic speed. With lower CNC dynamic speed, use the same cutting conditions or reduce the cutting speed Vc. With higher CNC dynamic speed, reduce the “T” value by approximately -30 -50% and apply the maximum available cutting speed Vc. R1 Cutter radius ae R2 Half of slot width T Programming width of cut ae Actual width of cut
