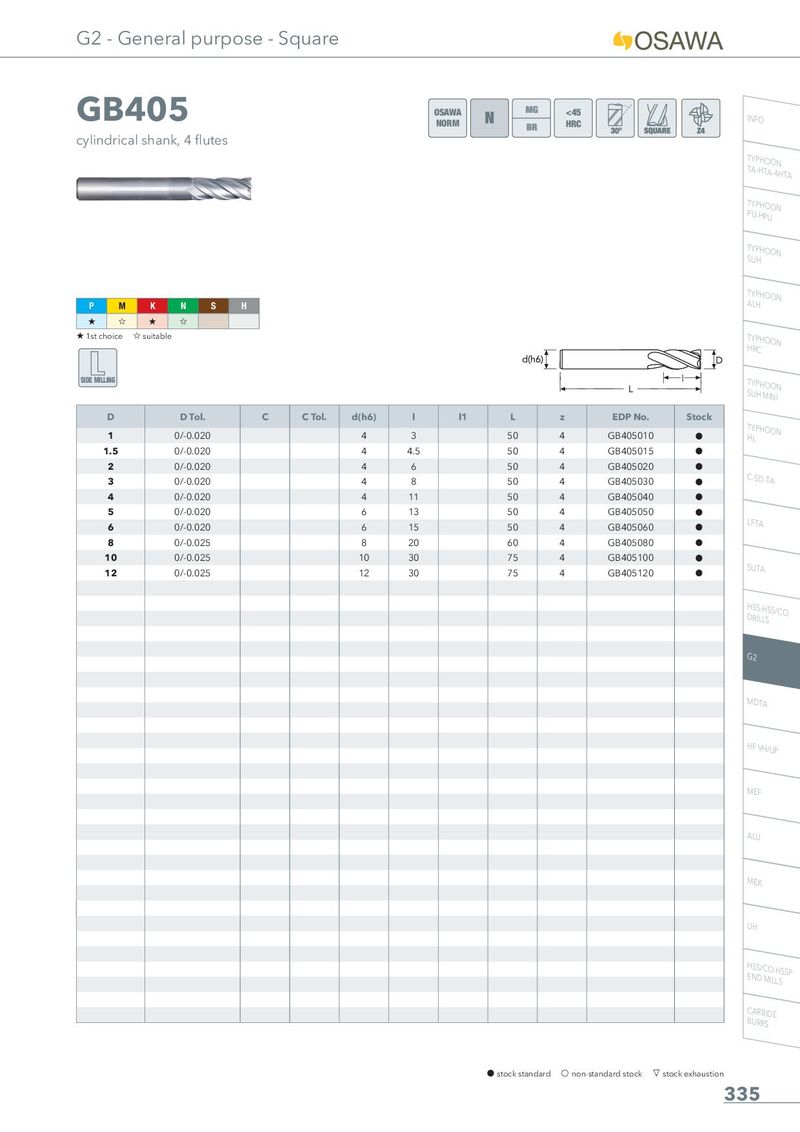

GB405
cylindrical shank, 4 flutes
OSAWA <45 NORM HRC
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N S | H | |||||||
| � � | � � | ||||||||
| �1st choice | �suitable | ||||||||
| SIDE MILLING | |||||||||
| D | D Tol. | C | C Tol. | d(h6) | l | l1 L | z | EDP No. | Stock |
| 1 | 0/-0.020 | 4 | 3 | 50 | 4 | GB405010 | h | ||
| 1.5 | 0/-0.020 | 4 | 4.5 | 50 | 4 | GB405015 | h | ||
| 2 | 0/-0.020 | 4 | 6 | 50 | 4 | GB405020 | h | ||
| 3 | 0/-0.020 | 4 | 8 | 50 | 4 | GB405030 | h | ||
| 4 | 0/-0.020 | 4 | 11 | 50 | 4 | GB405040 | h | ||
| 5 | 0/-0.020 | 6 | 13 | 50 | 4 | GB405050 | h | ||
| 6 | 0/-0.020 | 6 | 15 | 50 | 4 | GB405060 | h | ||
| 8 | 0/-0.025 | 8 | 20 | 60 | 4 | GB405080 | h | ||
| 10 | 0/-0.025 | 10 | 30 | 75 | 4 | GB405100 | h | ||
| 12 | 0/-0.025 | 12 | 30 | 75 | 4 | GB405120 | h |
