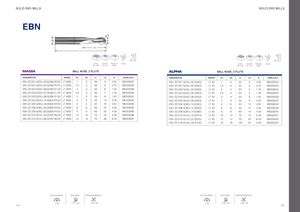

EBN
2fl 2fl 30° 35°
| COPY | RAMPING | EQUAL | COPY | RAMPING | EQUAL | ||
| MILLIMG | MILLING | DOWN | MILLIMG | MILLING | DOWN |
| B | ALL N | OSE, 2 | FLUTE | ||||
| DESIGNATION | GRADE | D1 | D2 | L1 | L2 | R | CATALOG # |
| EBN Z2 D01.0(03) L03.0(038) R0.50 | LT 4000 | 1 | 3 | 38 | 3 | 0.50 | M5003587 |
| EBN Z2 D01.5(03) L05.0(038) R0.75 | LT 4000 | 1.5 | 3 | 38 | 5 | 0.75 | M5003588 |
| EBN Z2 D02.0(03) L06.0(038) R1.00 | LT 4000 | 2 | 3 | 38 | 6 | 1.00 | M5003589 |
| EBN Z2 D02.5(03) L07.0(038) R1.25 | LT 4000 | 2.5 | 3 | 38 | 7 | 1.25 | M5003590 |
| EBN Z2 D03.0(03) L09.0(038) R1.50 | LT 4000 | 3 | 3 | 38 | 9 | 1.50 | M5003591 |
| EBN Z2 D04.0(04) L14.0(050) R2.00 | LT 4000 | 4 | 4 | 50 | 14 | 2.00 | M5003592 |
| EBN Z2 D05.0(05) L16.0(050) R2.50 | LT 4000 | 5 | 5 | 50 | 16 | 2.50 | M5003593 |
| EBN Z2 D06.0(06) L20.0(063) R3.00 | LT 4000 | 6 | 6 | 63 | 20 | 3.00 | M5003594 |
| EBN Z2 D08.0(08) L20.0(063) R4.00 | LT 4000 | 8 | 8 | 63 | 20 | 4.00 | M5003595 |
| EBN Z2 D10.0(10) L22.0(072) R5.00 | LT 4000 | 10 | 10 | 72 | 22 | 5.00 | M5003596 |
| EBN Z2 D12.0(12) L26.0(075) R6.00 | LT 4000 | 12 | 12 | 75 | 26 | 6.00 | M5003597 |
| BALL N | OSE, 2 | FLUTE | |||||
| DESIGNATION | GRADE | D1 | D2 | L1 | L2 | R | CATALOG # |
| EBN Z2 D01.0(04) L02.0(050) | LT 40 | 1 | 4 | 50 | 2 | 0.50 | M5005532 |
| EBN Z2 D01.5(04) L03.0(050) | LT 40 | 1.5 | 4 | 50 | 3 | 0.75 | M5005533 |
| EBN Z2 D02.0(04) L04.0(050) | LT 40 | 2 | 4 | 50 | 4 | 1.00 | M5005534 |
| EBN Z2 D02.5(04) L05.0(050) | LT 40 | 2.5 | 4 | 50 | 5 | 1.25 | M5005535 |
| EBN Z2 D03.0(04) L06.0(050) | LT 40 | 3 | 4 | 50 | 6 | 1.50 | M5005536 |
| EBN Z2 D04.0(04) L08.0(050) | LT 40 | 4 | 4 | 50 | 8 | 2.00 | M5005537 |
| EBN Z2 D05.0(06) L10.0(050) | LT 40 | 5 | 6 | 50 | 10 | 2.50 | M5005538 |
| EBN Z2 D06.0(06) L12.0(050) | LT 40 | 6 | 6 | 50 | 12 | 3.00 | M5005539 |
| EBN Z2 D08.0(08) L14.0(060) | LT 40 | 8 | 8 | 60 | 14 | 4.00 | M5005540 |
| EBN Z2 D10.0(10) L18.0(072) | LT 40 | 10 | 10 | 72 | 18 | 5.00 | M5005541 |
| EBN Z2 D12.0(12) L22.0(075) | LT 40 | 12 | 12 | 75 | 22 | 6.00 | M5005542 |
| EBN Z2 D16.0(16) L30.0(100) | LT 40 | 16 | 16 | 100 | 30 | 8.00 | M5005543 |
