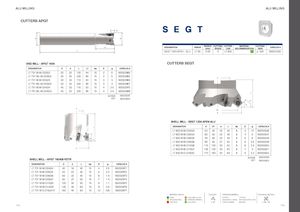

Общий каталог Lamina Technologies 2019 - 2020 - страница 91
Навигация
Общий каталог Lamina Technologies 2017 - 2018
ALU MILLING ALU MILLING
CUTTERS APGT
SEGT
Ap
d D
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SEGT 1204 AFEN - ALU | LT 05 | 0.84 | 4 | LT 600 | p. 324 | M0001008 |
END MILL - APGT 1604 CUTTERS SEGT
| DESIGNATION | D | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 731 W-W-D025/2 | 25 | 25 | 100 | 44 | 15 | 2 | 5 | M2002966 |
| LT 731 WL-W-D025/2 | 25 | 25 | 220 | 90 | 15 | 2 | 5 | M2002965 |
| LT 731 W-W-D032/3 | 32 | 32 | 110 | 50 | 15 | 3 | 3 | M2002968 |
| LT 731 WL-W-D032/3 | 32 | 32 | 220 | 90 | 15 | 3 | 3 | M2002967 |
| LT 731 W-W-D040/4 | 40 | 32 | 115 | 50 | 15 | 4 | 2.5 | M2002970 |
| LT 731 WL-W-D040/4 | 40 | 32 | 220 | 90 | 15 | 4 | 2.5 | M2002969 |
| SCREW KEY | M2000597 M2000602 |
d
d D1 D
SHELL MILL - SEGT 1204 AFEN-ALU
L
45° Ap
| DESIGNATION | D | D1 | d | L | Ap | Z | α | CATALOG # |
| LT 600 M-W-D040/3 | 53 | 40 | 16 | 40 | 6 | 3 | 10 | M2000546 |
| LT 600 M-W-D050/4 | 63 | 50 | 22 | 48 | 6 | 4 | 8 | M2000547 |
| LT 600 M-W-D063/5 | 76 | 63 | 22 | 48 | 6 | 5 | 6 | M2000548 |
| LT 600 M-W-D080/6 | 93 | 80 | 27 | 50 | 6 | 6 | 4.5 | M2000549 |
| LT 600 M-W-D100/6 | 113 | 100 | 32 | 50 | 6 | 6 | 3.5 | M2000550 |
| LT 600 M-W-D125/7 | 138 | 125 | 40 | 63 | 6 | 7 | 3 | M2000551 |
| LT 600 M-D-D160/8 | 173 | 160 | 40 | 63 | 6 | 8 | 2.2 | M2000552 |
| S | CREW KEY | M2000599 M2000603 |
L
90°
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 731 M-W-D040/4 | 40 | 16 | 40 | 15 | 4 | 2.5 | M2002971 |
| LT 731 M-W-D050/5 | 50 | 22 | 40 | 15 | 5 | 2.2 | M2002972 |
| LT 731 M-W-D063/6 | 63 | 22 | 40 | 15 | 6 | 1.8 | M2002973 |
| LT 731 M-W-D080/7 | 80 | 27 | 50 | 15 | 7 | 1.4 | M2002974 |
| LT 731 M-W-D100/8 | 100 | 32 | 50 | 15 | 8 | 1.1 | M2002975 |
| LT 731 M-W-D125/9 | 125 | 40 | 63 | 15 | 9 | 0.8 | M2002976 |
| LT 731 M-D-D160/10 | 160 | 40 | 63 | 15 | 10 | N/A | M2002977 |
