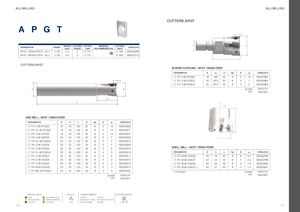

ALU MILLING ALU MILLING
CUTTERS APGT
APGT
Ap
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| APGT 100304 PDER - ALU | LT 05 | 0.4 | 2 | LT 741 | p. 324 | M0003089 | |
| APGT 160408 PDER - ALU | LT 05 | 0.8 | 2 | LT 731 | P. 324 | M0001010 |
L1
CUTTERS APGT
SCREW COUPLING - APGT 100304 PDER
| DESIGNATION | D | d | L1 | Ap | Z | α | CATALOG # |
| LT 741 S-W-D016/2 | 16 | M8 | 25 | 9 | 2 | 10 | M2002962 |
| LT 741 S-W-D020/3 | 20 | M10 | 30 | 9 | 3 | 7 | M2002963 |
| LT 741 S-W-D025/4 | 25 | M12 | 35 | 9 | 4 | 5 | M2002964 |
| SCREW KEY | M2002181 M2000601 |
L1 L d
END MILL - APGT 100304 PDER
| DESIGNATION | D | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 741 C-W-D016/2 | 16 | 16 | 100 | 25 | 9 | 2 | 12 | M2002806 |
| LT 741 CL-W-D016/2 | 16 | 16 | 150 | 35 | 9 | 2 | 12 | M2002817 |
| LT 741 C-W-D018/2 | 18 | 20 | 100 | 30 | 9 | 2 | 12 | M2002807 |
| LT 741 C-W-D020/3 | 20 | 20 | 100 | 30 | 9 | 3 | 7 | M2002808 |
| LT 741 CL-W-D020/3 | 20 | 20 | 150 | 35 | 9 | 3 | 7 | M2002818 |
| LT 741 C-W-D022/3 | 22 | 20 | 100 | 30 | 9 | 3 | 7 | M2002809 |
| LT 741 C-W-D025/3 | 25 | 25 | 120 | 30 | 9 | 3 | 5 | M2002810 |
| LT 741 CL-W-D025/4 | 25 | 25 | 200 | 40 | 9 | 4 | 5 | M2002819 |
| LT 741 C-W-D025/4 | 25 | 25 | 120 | 30 | 9 | 4 | 5 | M2002811 |
| LT 741 C-W-D028/4 | 28 | 25 | 120 | 30 | 9 | 4 | 2 | M2002812 |
| LT 741 C-W-D030/4 | 30 | 25 | 120 | 30 | 9 | 4 | 2 | M2002813 |
| LT 741 W-W-D032/5 | 32 | 32 | 120 | 30 | 9 | 5 | 3 | M2002814 |
| LT 741 WL-W-D032/4 | 32 | 32 | 200 | 40 | 9 | 4 | 3 | M2002820 |
| SCREW KEY | M2002181 M2000601 |
90° Ap
D
| DESIGNATION | D | d | L | Ap | Z | α | CATALOG # |
| LT 741 M-W-D040/6 | 40 | 16 | 40 | 9 | 6 | 2.5 | M2002798 |
| LT 741 M-W-D050/7 | 50 | 22 | 40 | 9 | 7 | 2.2 | M2002799 |
| LT 741 M-W-D063/8 | 63 | 22 | 40 | 9 | 8 | 1.8 | M2002800 |
| LT 741 M-W-D080/11 | 80 | 27 | 50 | 9 | 11 | 1.4 | M2002801 |
| On Request | SCREW KEY | M2002181 M2000601 |
