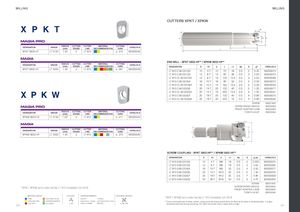

CUTTERS XPKT / XPKW
| P | K T | d | Ap D D1 | ||||||
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # | L | L1 |
| XPKT 0602-HF | LT 3130 | 1.20 | 2 | LT 910 | p. 310 | M0005548 | |||
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # | END MILL - XPKT 0602-HF / XPKW 0602-HF DESIGNATION D D1 d L | L1 Ap Z α° C |
| XPKT 0602-HF | LT 3000 | 1.20 | 2 | LT 910 | p. 261 | M0005549 |
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α° | CATALOG # |
| LT 910 C-W-D010/2 | 10 | 4.7 | 10 | 72 | 16 | 0.5 | 2 | 3.25 | M2005574 |
| LT 910 C-W-D012/3 | 12 | 6.7 | 12 | 80 | 26 | 0.5 | 3 | 2.50 | M2005573 |
| LT 910 CL-W-D012/3 | 12 | 6.7 | 10 | 120 | 13.5 | 0.5 | 3 | 2.50 | M2005568 |
| LT 910 C-W-D016/4 | 16 | 10.7 | 16 | 90 | 32 | 0.5 | 4 | 2.00 | M2005572 |
| LT 910 CL-W-D016/3 | 16 | 10.7 | 14 | 160 | 13.5 | 0.5 | 3 | 2.00 | M2005583 |
| LT 910 C-W-D020/5 | 20 | 14.7 | 20 | 100 | 40 | 0.5 | 5 | 1.25 | M2005571 |
| LT 910 CL-W-D020/4 | 20 | 14.7 | 18 | 200 | 13.5 | 0.5 | 4 | 1.25 | M2005581 |
| LT 910 C-W-D025/7 | 25 | 19.7 | 20 | 120 | 40 | 0.5 | 4 | 0.90 | M2005570 |
| LT 910 CL-W-D025/6 | 25 | 19.7 | 20 | 220 | 15 | 0.5 | 4 | 0.90 | M2005580 |
| SCREW | M2001640 | ||||||||
| SC | REW D | RIVER | HANDLE | M2002922 | |||||
| PR | ESET A | DAPTE TORX P | R 0.4NM LUS BIT | M2002923 M2003064 |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| XPKW 0602-HF | LT 3130 | 1.20 | 2 | LT 910 | p. 311 | M0005544 | |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| XPKW 0602-HF | LT 3000 | 1.20 | 2 | LT 910 | p. 273 | M0005545 |
Ap
d D1 D
L
SCREW COUPLING - XPKT 0602-HF** / XPKW 0602-HF**
| DESIGNATION | D | D1 | d | L1 | Ap | Z | αHF | CATALOG # |
| LT 910 S-W-D010/2 | 10 | 4.7 | M6 | 19 | 0.5 | 2 | 3.250 | M2005578 |
| LT 910 S-W-D012/3 | 12 | 6.7 | M6 | 19 | 0.5 | 3 | 2.50 | M2003088 |
| LT 910 S-W-D016/4 | 16 | 10.7 | M8 | 22 | 0.5 | 4 | 2.00 | M2005577 |
| LT 910 S-W-D020/5 | 20 | 14.7 | M10 | 25 | 0.5 | 5 | 1.25 | M2005576 |
| LT 910 S-W-D025/7 | 25 | 19.7 | M12 | 25 | 0.5 | 7 | 0.90 | M2005559 |
| LT 910 S-W-D032/8 | 32 | 26.7 | M16 | 30 | 0.5 | 8 | 0.70 | M2005558 |
| SCREW | M2001640 | |||||||
| SCREW | DRIVER | HANDLE | M2002922 | |||||
| PRESET | ADAPT | ER 0.4NM | M2002923 | |||||
| TORX | PLUS BIT | M2003064 |
| MATERIAL GROUP | COOLANT | ORDERING EXAMPLE | TECHNICAL SECTION | * XPKT, XPKW and cutter family LT 910 Available Q4 2019 | |||
| STAINLESS STEEL | HARDENED MATERIAL | DESIGNATION + GRADE | APKT 060204 PDTR LT 3000 | ** Due to the small size of these inserts, using a pre-set torque screw driver (0.4Nm) at all times is recommended. It is also | |||
| CAST IRON | ALU(>8%Si) | p. 357 | CATALOG NUMBER | M0004026 | p. 366 - 376 | recommended that during mounting, the insert should be held in place with a finger. |
