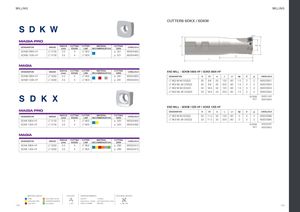

CUTTERS SDKX / SDKW
SDKW
Ap
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SDKW 0904-HF | LT 3130 | 2.0 | 4 | LT 902 | | p. 321 | M0004482 |
| SDKW 1205-HF | LT 3130 | 2.5 | 4 | LT 903 | | p. 321 | M0004483 |
L1 L
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SDKW 0904-HF | LT 3000 | 2.0 | 4 | LT 902 | | p. 291 | M0004263 |
| SDKW 1205-HF | LT 3000 | 2.5 | 4 | LT 903 | | p. 291 | M0004224 |
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 902 W-W-D025/2 | 25 | 9.6 | 25 | 120 | 60 | 1.5 | 2 | 2 | M2003351 |
| LT 902 WL-W-D025/2 | 25 | 9.6 | 25 | 200 | 60 | 1.5 | 2 | 2 | M2003350 |
| LT 902 W-W-D032/3 | 32 | 16.6 | 32 | 120 | 60 | 1.5 | 3 | 2 | M2003353 |
| LT 902 WL-W-D032/3 | 32 | 16.6 | 32 | 200 | 60 | 1.5 | 3 | 2 | M2003352 |
| | | | | | | S | CREW KEY | M2001420 M2000602 |
END MILL - SDKW 1205-HF / SDKX 1205 HF
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 903 W-W-D032/2 | 32 | 11.0 | 32 | 120 | 60 | 2 | 2 | 2 | M2003366 |
| LT 903 WL-W-D032/2 | 32 | 11.0 | 32 | 200 | 60 | 2 | 2 | 2 | M2003365 |
| | | | | | | S | CREW KEY | M2000597 M2000602 |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SDKX 0904-HF | LT 3130 | 2.0 | 4 | LT 902 | | p. 320 | M0004484 |
| SDKX 1205-HF | LT 3130 | 2.5 | 4 | LT 903 | | p. 320 | M0004485 |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SDKX 0904-HF | LT 3000 | 2.0 | 4 | LT 902 | | p. 292 | M0003412 |
| SDKX 1205-HF | LT 3000 | 2.5 | 4 | LT 903 | | p. 293 | M0003413 |
