Общий каталог Lamina Technologies 2017 - 2018

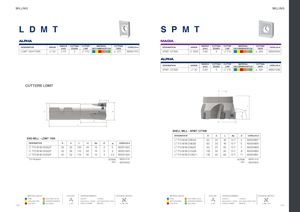

LDMT SPMT
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| LDMT 1504 PDSR | LT 30 | 0.74 | 2 | LT 770 | p. 277 | M0001772 |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SPMT 12T308 | LT 3000 | 0.80 | 4 | LT 710 | p. 304 | M0003420 |
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SPMT 12T308 | LT 30 | 0.80 | 4 | LT 710 | p. 304 | M0001226 |
CUTTERS LDMT
d
d
L1 L
Ap
D
SHELL MILL - SPMT 12T308
D
L
90°
Ap
| DESIGNATION | D | d | L | Ap | Z | CATALOG # |
| LT 710 M-W-D050/4 | 50 | 22 | 40 | 10.7 | 4 | M2004927 |
| LT 710 M-W-D063/5 | 63 | 22 | 40 | 10.7 | 5 | M2004928 |
| LT 710 M-W-D080/7 | 80 | 27 | 50 | 10.7 | 7 | M2004929 |
| LT 710 M-W-D100/9 | 100 | 32 | 50 | 10.7 | 9 | M2004930 |
| LT 710 M-W-D125/11 | 125 | 40 | 63 | 10.7 | 11 | M2004931 |
| SCREW KEY | M2001418 M2000602 |
END MILL - LDMT 1504
| DESIGNATION | D | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 770 W-W-D025/2 | 25 | 25 | 100 | 44 | 15 | 2 | 5 | M2001822 |
| LT 770 W-W-D032/3 | 32 | 35 | 110 | 50 | 15 | 3 | 3 | M2001823 |
| LT 770 W-W-D040/4 | 40 | 32 | 115 | 45 | 15 | 4 | 2.5 | M2001824 |
| On Request | SCREW KEY | M2001418 M2000602 |
