90° 4 FLUTE, LONG | LT 4000 - Ø 1 - 5 E90° 4 FLUTE WITH RADIUS 0.5 | LT 4000 - Ø 3 - 6, 8, 10, 12

Material	Lamina °	Material	Hardness	Profi	iling	Slotting		f	z [mm/tooth	]
Group	Gr. N	Examples		ap	ae	ap	Ø 1	Ø 2	Ø 3	Ø 4	Ø 5
		C35, Ck45,	125 HB
Non Alloyed	1	1020, 1045, 1060, 28Mn6	190 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.010	0.011	0.016	0.023	0.029
L Alld	2	42CrMo4, St50, Ck60,	180 HB 230 HB	15Ø	05Ø	1.0xØ	0.008	0.010	0.014	0.020	0.025
P ow oye		4140, 4340, 100Cr6	280 HB 350 HB	.x	.x	0.7xØ	0.007	0.008	0.011	0.016	0.020
Hih Alloed	3	X40CrMoV5, H13 M42 D3	220 HB 280 HB	15xØ	05xØ	1.0xØ	0.007	0.008	0.011	0.016	0.020
g y		, , , S6-5-2, 12Ni19	320 HB 350 HB	.	.	0.6xØ	0.005	0.006	0.008	0.011	0.014
Austenitic	4	304, 316, X5CrNi18-9	180 HB 240 HB	1.5xØ	0.5xØ	1.0xØ	0.006	0.007	0.010	0.015	0.019
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	1.5xØ	0.5xØ	1.0xØ	0.005	0.006	0.008	0.011	0.014
Ferritic & Martensitic	6	410, X6Cr17, 17-4PH, 430	200 HB 42 HRc	1.5xØ	0.5xØ	1.0xØ	0.005	0.005	0.008	0.011	0.014
K Grey	7	GG20, GG40, EN- GJL-250, N030B	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.009	0.011	0.015	0.022	0.027
Malleable & Nodular	8	GGG40, GGG70, 50005	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.009	0.010	0.014	0.021	0.026
S Fe, Ni & Co based	9	Incoloy 800 Inconel 700 Stellite 21	240 HB 250 HB 350 HB	1.5xØ	0.3xØ	1.0xØ	0.004	0.004	0.006	0.009	0.011
Ti based	10	T40 TiAl6V4	- -	1.5xØ	0.5xØ	1.0xØ	0.004	0.004	0.006	0.009	0.011
Steel	11	X100CrMo13, 440C, GX260NiC42	45 HRc 50 HRc	1.5xØ	0.3xØ	0.2xØ	0.003	0.004	0.006	0.008	0.010
H		-r	55 HRc		0.2xØ	0.1xØ	0.003	0.003	0.005	0.007	0.009
Chilled Cast Iron	12	Ni-Hard 2	400 HB	1.5xØ	0.2xØ	0.1xØ	0.003	0.003	0.005	0.007	0.009
White Cast Iron	13	G-X300CrMo15	55 HRc	1.5xØ	0.2xØ	0.1xØ	0.003	0.003	0.005	0.007	0.009
NF Aluminium	14	AlSi12	130 HB	1.5xØ	0.5xØ	1.0xØ	0.010	0.011	0.016	0.023	0.029

Material	Lamina	Material	Hardness	Proi	filing	Slotting			fz	[mm/toot	h]
Group	Gr. N°	Examples		ap	ae	ap	Ø 3	Ø 4	Ø 5	Ø 6	Ø 8	Ø 10	Ø 12
		C35, Ck45,	125 HB
Non Alloyed	1	1020, 1045, 1060, 28Mn6	190 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.017	0.024	0.030	0.040	0.055	0.065	0.077
		42CrMo4, St50, Ck60,	180 HB 230 HB			1.0xØ	0.160	0.025	0.030	0.039	0.053	0.063	0.074
P Low Alloyed	2	4140, 4340, 100Cr6	280 HB 350 HB	1.5xØ	0.5xØ	0.7xØ	0.014	0.020	0.024	0.032	0.043	0.052	0.062
Hih Alld	3	X40CrMoV5, H13 M42 D3	220 HB 280 HB	15Ø	05Ø	1.0xØ	0.015	0.021	0.026	0.033	0.046	0.055	0.064
g oye		, , , S6-5-2, 12Ni19	320 HB 350 HB	.x	.x	0.6xØ	0.011	0.016	0.020	0.025	0.035	0.041	0.049
Austenitic	4	304, 316, X5CrNi18-9	180 HB 240 HB	1.5xØ	0.5xØ	1.0xØ	0.012	0.017	0.022	0.028	0.038	0.045	0.053
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	1.5xØ	0.5xØ	1.0xØ	0.009	0.013	0.017	0.021	0.029	0.035	0.040
Ferritic & Martensitic	6	410, X6Cr17, 17-4PH, 430	200 HB 42 HRc	1.5xØ	0.5xØ	1.0xØ	0.009	0.013	0.017	0.021	0.029	0.035	0.040
Grey	7	GG20, GG40, EN- GJL-250, N030B	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.020	0.029	0.036	0.047	0.064	0.076	0.089
K Malleable & Nodular	8	GG20, GG70, 50005	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.017	0.025	0.031	0.040	0.055	0.066	0.077
S Fe, Ni & Co based	9	Incoloy 800 Inconel 700 Stellite 21	240 HB 250 HB 350 HB	1.5xØ	0.3xØ	1.0xØ	0.010	0.014	0.018	0.023	0.031	0.037	0.044
Ti based	10	TiAl6V4 T40	- -	1.5xØ	0.5xØ	1.0xØ	0.010	0.015	0.018	0.023	0.032	0.038	0.045
Steel	11	X100 CrMo13,	45 HRc 50 HRc	1.5xØ	0.3xØ	0.2xØ	0.007	0.011	0.013	0.017	0.023	0.028	0.032
H		440C, G-X260NiCr42	55 HRc		0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
Chilled Cast Iron	12	Ni-Hard 2	400 HB	1.5xØ	0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
White Cast Iron	13	G-X300CrMo15	55 HRc	1.5xØ	0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
NF Aluminium	14	AlSi12	130 HB	1.5xØ	0.5xØ	1.0xØ	0.018	0.027	0.033	0.042	0.058	0.069	0.081

90° 4 FLUTE, LONG | LT 4000 - Ø 6, 8, 10, 12, 16 E90° 4 FLUTE WITH RADIUS 1.0 | LT 4000 - Ø 3 - 6, 8, 10, 12

Material	Lamina °	Material	Hardness	Profi	iling	Slotting		f	z [mm/tooth	]
Group	Gr. N	Examples		ap	ae	ap	Ø 6	Ø 8	Ø 10	Ø 12	Ø 16
		C35, Ck45,	125 HB
Non Alloyed	1	1020, 1045, 1060, 28Mn6	190 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.036	0.050	0.059	0.070	0.090
L Alld	2	42CrMo4, St50, Ck60,	180 HB 230 HB	1.5xØ	0.5xØ	1.0xØ	0.032	0.044	0.053	0.062	0.088
P ow oye		4140, 4340, 100Cr6	280 HB 350 HB	1.5xØ	0.5xØ	0.7xØ	0.026	0.035	0.042	0.049	0.069
Hih Alloed	3	X40CrMoV5, H13 M42 D3	220 HB 280 HB	1.5xØ	0.5xØ	1.0xØ	0.026	0.035	0.042	0.049	0.069
g y		, , , S6-5-2, 12Ni19	320 HB 350 HB	1.5xØ	0.5xØ	0.6xØ	0.018	0.025	0.030	0.035	0.050
Austenitic	4	304, 316, X5CrNi18-9	180 HB 240 HB	1.5xØ	0.5xØ	1.0xØ	0.024	0.032	0.039	0.045	0.064
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	1.5xØ	0.5xØ	1.0xØ	0.018	0.025	0.030	0.035	0.050
Ferritic & Martensitic	6	410, X6Cr17, 17-4PH, 430	200 HB 42 HRc	1.5xØ	0.5xØ	1.0xØ	0.017	0.024	0.029	0.033	0.048
K Grey	7	GG20, GG40, EN- GJL-250, N030B	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.035	0.047	0.056	0.066	0.094
Malleable & Nodular	8	GGG40, GGG70, 50005	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.033	0.045	0.053	0.063	0.089
S Fe, Ni & Co based	9	Incoloy 800 Inconel 700 Stellite 21	240 HB 250 HB 350 HB	1.5xØ	0.3xØ	1.0xØ	0.015	0.020	0.024	0.028	0.040
Ti based	10	T40 TiAl6V4	- -	1.5xØ	0.5xØ	1.0xØ	0.015	0.020	0.024	0.028	0.040
Steel	11	X100CrMo13, 440C,	45 HRc 50 HRc	1.5xØ	0.3xØ	0.2xØ	0.013	0.017	0.021	0.024	0.035
H		G-X260NiCr42	55 HRc	1.5xØ	0.2xØ	0.1xØ	0.011	0.015	0.018	0.021	0.030
Chilled Cast Iron	12	Ni-Hard 2	400 HB	1.5xØ	0.2xØ	0.1xØ	0.011	0.015	0.018	0.021	0.030
White Cast Iron	13	G-X300CrMo15	55 HRc	1.5xØ	0.2xØ	0.1xØ	0.011	0.015	0.018	0.021	0.030
NF Aluminium	14	AlSi12	130 HB	1.5xØ	0.5xØ	1.0xØ	0.036	0.050	0.059	0.070	0.099

Material G	Lamina G N°	Material El	Hardness	Profi	iling	Slotting			fz	[mm/toot	h]
roup	r.	xampes		ap	ae	ap	Ø 3	Ø 4	Ø 5	Ø 6	Ø 8	Ø 10	Ø 12
		C35, Ck45,	125 HB
Non Alloyed	1	1020, 1045, 1060, 28Mn6	190 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.017	0.024	0.030	0.040	0.055	0.065	0.077
L Alld	2	42CrMo4, St50, Ck60,	180 HB 230 HB	15Ø	05Ø	1.0xØ	0.160	0.025	0.030	0.039	0.053	0.063	0.074
P ow oye		4140, 4340, 100Cr6	280 HB 350 HB	.x	.x	0.7xØ	0.014	0.020	0.024	0.032	0.043	0.052	0.062
Hih Alloed	3	X40CrMoV5, H13 M42 D3	220 HB 280 HB	15xØ	05xØ	1.0xØ	0.015	0.021	0.026	0.033	0.046	0.055	0.064
g y		, , , S6-5-2, 12Ni19	320 HB 350 HB	.	.	0.6xØ	0.011	0.016	0.020	0.025	0.035	0.041	0.049
Austenitic	4	304, 316, X5CrNi18-9	180 HB 240 HB	1.5xØ	0.5xØ	1.0xØ	0.012	0.017	0.022	0.028	0.038	0.045	0.053
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	1.5xØ	0.5xØ	1.0xØ	0.009	0.013	0.017	0.021	0.029	0.035	0.040
Ferritic & Martensitic	6	410, X6Cr17, 17-4PH, 430	200 HB 42 HRc	1.5xØ	0.5xØ	1.0xØ	0.009	0.013	0.017	0.021	0.029	0.035	0.040
K Grey	7	GG20, GG40, EN- GJL-250, N030B	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.020	0.029	0.036	0.047	0.064	0.076	0.089
Malleable & Nodular	8	GGG40, GGG70, 50005	150 HB 200 HB 250 HB	1.5xØ	0.5xØ	1.0xØ	0.017	0.025	0.031	0.040	0.055	0.066	0.077
S Fe, Ni & Co based	9	Incoloy 800 Inconel 700 Stellite 21	240 HB 250 HB 350 HB	1.5xØ	0.3xØ	1.0xØ	0.010	0.014	0.018	0.023	0.031	0.037	0.044
Ti based	10	T40 TiAl6V4	- -	1.5xØ	0.5xØ	1.0xØ	0.010	0.015	0.018	0.023	0.032	0.038	0.045
Steel	11	X100CrMo13, 440C, GX260NiC42	45 HRc 50 HRc	1.5xØ	0.3xØ	0.2xØ	0.007	0.011	0.013	0.017	0.023	0.028	0.032
H		-r	55 HRc		0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
Chilled Cast Iron	12	Ni-Hard 2	400 HB	1.5xØ	0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
White Cast Iron	13	G-X300CrMo15	55 HRc	1.5xØ	0.2xØ	0.1xØ	0.005	0.008	0.010	0.013	0.017	0.021	0.024
NF Aluminium	14	AlSi12	130 HB	1.5xØ	0.5xØ	1.0xØ	0.018	0.027	0.033	0.042	0.058	0.069	0.081

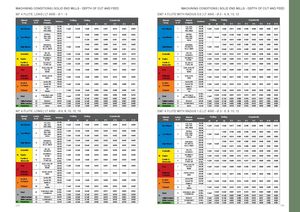

Общий каталог Lamina Technologies 2019 - 2020 - страница 169
