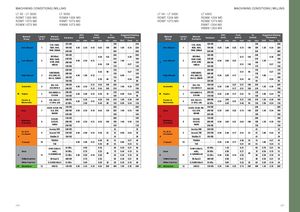

MACHINING CONDITIONS | MILLING MACHINING CONDITIONS | MILLING

LT 30 - LT 3000	LT 3000	LT 30 - LT 3000	LT 3000
RDMT 1003 M0	RDMX 1003 M0	RDMT 1204 M0	RDMX 1204 M0
RDMT 10T3 M0	RXMT 10T3 M0	RDMT 12T3 M0	RDMX 12T3 M0
RDMX 10T3 M0	RXMX 10T3 M0		RXMT 1204 M0

RXMX 1204 M0

Material	Lamina	Material	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
Group	Gr. N°	Examples		min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	2.50	0.18	0.64	190	300	1.00	0.34	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				050	150	240		030	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	250	015	.		210	100	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.44	130	170		0.27	140
			220 HB				044	90	150		027	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	180	012	.		130	080	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.36	60	90		0.24	80
Atiti	4	304, 316,	180 HB	050	250	0.15	0.50	190	250	100	030	220
usenc		X5CrNi18-9	240 HB	.	.	0.12	0.44	160	210	.	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.00	0.12	0.36	70	130 120	0.80	0.24	100 90
Ferritic &		410, X6Cr17,	200 HB		2.50		0.50	150	210	1.00	0.30	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	2.00	0.15	0.40	90	150	0.80	0.24	130
		GG20, GG40, EN-	150 HB						240			200
Grey	7	GJL-250,	200 HB	0.50	2.50	0.18	0.64	150	220	1.00	0.34	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	2.50	0.15	0.56	100	180	1.00	0.30	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	2.00	0.12	0.36	25	45	0.80	0.24	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.40	30	55		0.27	40
Ti based	10	T40	-	0.50	2.00	0.12	0.36	40	65	0.80	0.24	55
		X100 CrMo13	45 HRc		0.90		0.36		80	0.50	0.21	60
Steel		, 440C,	50 HRc		0.70		0.32		70	0.40	0.19	55
H	11	G-X260NiCr42	55 HRc	0.30	0.60	0.10	0.28	40	60	0.30	0.18	50
Chilled Cast Iron		Ni-Hard 2	400 HB		0.70		0.36		80	0.40	0.21	50
White Cast Iron		G-X300CrMo15	55 HRc		0.60		0.28	30	60	0.30	0.18	40
NF Aluminium	12	AlSi12	130 HB	0.50	2.50	0.18	0.64	200	400	1.00	0.38	280

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
				min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	3.00	0.25	0.74	190	300	1.30	0.34	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				057	150	240		030	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	300	021	.		210	130	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.51	130	170		0.27	140
			220 HB				051	90	150		027	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	220	017	.		130	100	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.41	60	90		0.24	80
Atiti	4	304, 316,	180 HB	00	300	0.21	0.57	190	250	130	030	220
usenc		X5CrNi18-9	240 HB	.5	.	0.17	0.51	160	210	.	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.40	0.17	0.41	70	130 120	1.00	0.24	100 90
Ferritic &		410, X6Cr17,	200 HB		3.00		0.57	150	210	1.30	0.30	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	2.40	0.21	0.46	90	150	1.00	0.24	130
		GG20 GG40 EN-	150 HB						240			200
Grey	7	, , GJL-250,	200 HB	0.50	3.00	0.25	0.74	150	220	1.30	0.34	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	3.00	0.21	0.64	100	180	1.30	0.30	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	2.40	0.17	0.41	25	45	1.00	0.24	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.46	30	55		0.27	40
Ti based	10	T40	-	0.50	2.40	0.17	0.41	40	65	1.00	0.24	55
		X100 CrMo13	45 HRc		1.10		0.41		80	0.70	0.21	60
Steel		, 440C,	50 HRc		0.90		0.37		70	0.50	0.19	55
H	11	G-X260NiCr42	55 HRc	0.30	0.80	0.14	0.32	40	60	0.30	0.18	50
Chilled Cast Iron		Ni-Hard 2	400 HB		0.90		0.41		80	0.50	0.21	50
White Cast Iron		G-X300CrMo15	55 HRc		0.80		0.32	30	60	0.30	0.18	40
NF Aluminium	12	AlSi12	130 HB	0.50	3.00	0.25	0.74	200	400	1.30	0.38	280
