RDMT 0702 M0 RDMT 0803 M0

Material	Lamina	Material	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
Group	Gr. N°	Examples		min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	1.80	0.18	0.54	190	300	0.80	0.32	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				043	150	240		028	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	180	015	.		210	080	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.37	130	170		0.25	140
			220 HB				037	90	150		025	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	130	012	.		130	060	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.31	60	90		0.22	80
Atiti	4	304, 316,	180 HB	050	180	0.15	0.43	190	250	080	028	220
usenc		X5CrNi18-9	240 HB	.	.	0.12	0.37	160	210	.	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	1.40	0.12	0.31	70	130 120	0.60	0.22	100 90
Ferritic &		410, X6Cr17,	200 HB		1.80		0.43	150	210	0.80	0.28	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	1.40	0.15	0.34	90	150	0.60	0.22	130
		GG20, GG40, EN-	150 HB						240			200
Grey	7	GJL-250,	200 HB	0.50	1.80	0.18	0.54	150	220	0.80	0.32	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	1.80	0.15	0.48	100	180	0.80	0.28	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	1.40	0.12	0.31	25	45	0.60	0.22	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.34	30	55		0.25	40
Ti based	10	T40	-	0.50	1.40	0.12	0.31	40	65	0.60	0.22	55
		X100 CrMo13	45 HRc		0.60		0.31		80	0.40	0.20	60
Steel		, 440C,	50 HRc				0.27		70		0.18	55
H	11	G-X260NiCr42	55 HRc	0.30		0.10	0.24	40	60		0.17	50
Chilled Cast Iron		Ni-Hard 2	400 HB		0.50		0.31		80	0.30	0.20	50
White Cast Iron		G-X300CrMo15	55 HRc				0.24	30	60		0.17	40
NF Aluminium	12	AlSi12	130 HB	0.50	1.80	0.18	0.54	200	400	0.80	0.35	280

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
				min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	2.00	0.18	0.58	190	300	0.80	0.34	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				045	150	240		030	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	200	015	.		210	080	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.40	130	170		0.27	140
			220 HB				040	90	150		027	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	140	012	.		130	060	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.32	60	90		0.24	80
Atiti	4	304, 316,	180 HB	050	200	0.15	0.45	190	250	080	030	220
usenc		X5CrNi18-9	240 HB	.	.	0.12	0.40	160	210	.	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	1.50	0.12	0.32	70	130 120	0.60	0.24	100 90
Ferritic &		410, X6Cr17,	200 HB		2.00		0.45	150	210	0.80	0.30	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	1.50	0.15	0.36	90	150	0.60	0.24	130
		GG20 GG40 EN-	150 HB						240			200
Grey	7	, , GJL-250,	200 HB	0.50	2.00	0.18	0.58	150	220	0.80	0.34	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	2.00	0.15	0.50	100	180	0.80	0.30	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	1.50	0.12	0.32	25	45	0.60	0.24	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.36	30	55		0.27	40
Ti based	10	T40	-	0.50	1.50	0.12	0.32	40	65	0.60	0.24	55
		X100 CrMo13	45 HRc		0.70		0.32		80	0.40	0.21	60
Steel		, 440C,	50 HRc		0.60		0.29		70		0.19	55
H	11	G-X260NiCr42	55 HRc	0.30	0.50	0.10	0.25	40	60		0.18	50
Chilled Cast Iron		Ni-Hard 2	400 HB		0.60		0.32		80	0.30	0.21	50
White Cast Iron		G-X300CrMo15	55 HRc		0.50		0.25	30	60		0.18	40
NF Aluminium	12	AlSi12	130 HB	0.50	2.00	0.18	0.58	200	400	0.80	0.38	280

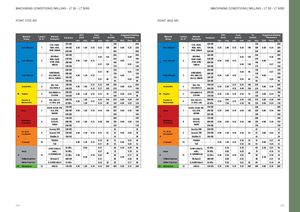

Общий каталог Lamina Technologies 2019 - 2020 - страница 144
