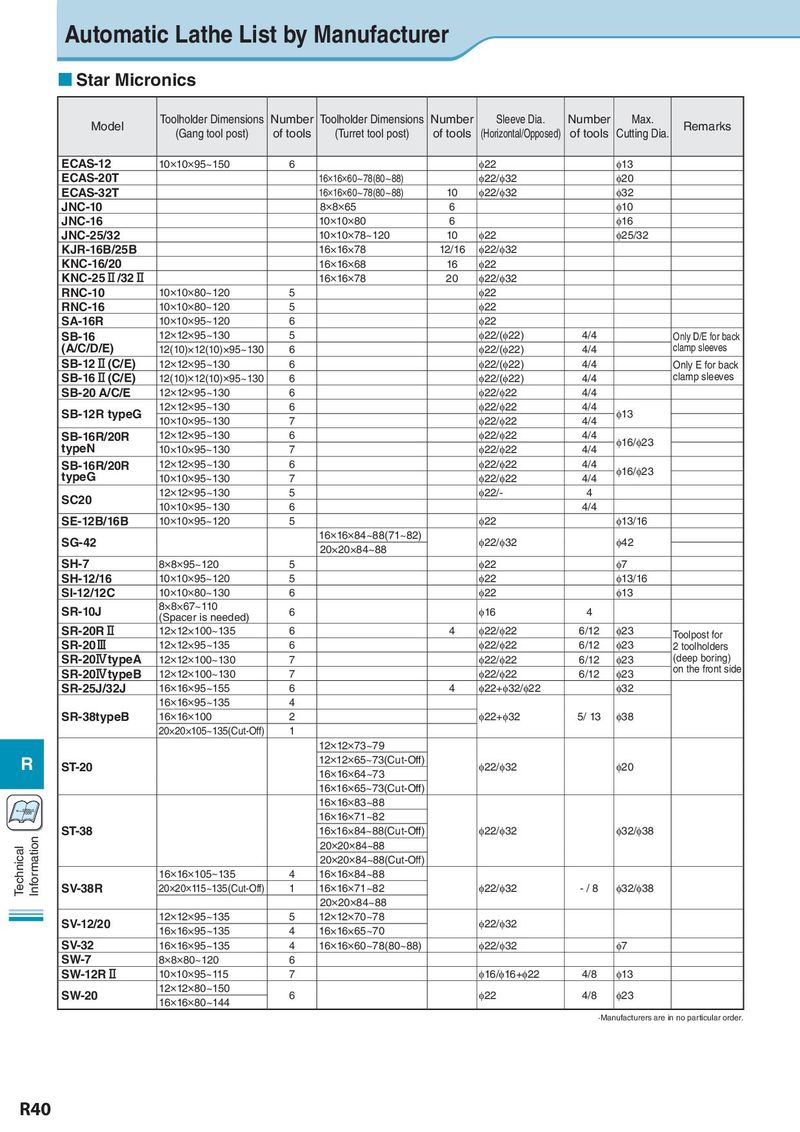

Automatic Lathe List by Manufacturer  Star Micronics Model Toolholder Dimensions Number Toolholder Dimensions Number Sleeve Dia. Number Max. Remarks (Gang tool post) of tools (Turret tool post) of tools (Horizontal/Opposed) of tools Cutting Dia. ECAS-12 10×10×95~150 6 φ22 φ13 ECAS-20T 16×16×60~78(80~88) φ22/φ32 φ20 ECAS-32T 16×16×60~78(80~88) 10 φ22/φ32 φ32 JNC-10 8×8×65 6 φ10 JNC-16 10×10×80 6 φ16 JNC-25/32 10×10×78~120 10 φ22 φ25/32 KJR-16B/25B 16×16×78 12/16 φ22/φ32 KNC-16/20 16×16×68 16 φ22 KNC-25Ⅱ/32Ⅱ 16×16×78 20 φ22/φ32 RNC-10 10×10×80~120 5 φ22 RNC-16 10×10×80~120 5 φ22 SA-16R 10×10×95~120 6 φ22 SB-16 12×12×95~130 5 φ22/(φ22) 4/4 Only D/E for back (A/C/D/E) 12(10)×12(10)×95~130 6 φ22/(φ22) 4/4 clamp sleeves SB-12Ⅱ(C/E) 12×12×95~130 6 φ22/(φ22) 4/4 Only E for back SB-16Ⅱ(C/E) 12(10)×12(10)×95~130 6 φ22/(φ22) 4/4 clamp sleeves SB-20 A/C/E 12×12×95~130 6 φ22/φ22 4/4 SB-12R typeG 12×12×95~130 6 φ22/φ22 4/4 φ13 10×10×95~130 7 φ22/φ22 4/4 SB-16R/20R 12×12×95~130 6 φ22/φ22 4/4 φ16/φ23 typeN 10×10×95~130 7 φ22/φ22 4/4 SB-16R/20R 12×12×95~130 6 φ22/φ22 4/4 φ16/φ23 typeG 10×10×95~130 7 φ22/φ22 4/4 SC20 12×12×95~130 5 φ22/- 4 10×10×95~130 6 4/4 SE-12B/16B 10×10×95~120 5 φ22 φ13/16 SG-42 16×16×84~88(71~82) φ22/φ32 φ42 20×20×84~88 SH-7 8×8×95~120 5 φ22 φ7 SH-12/16 10×10×95~120 5 φ22 φ13/16 SI-12/12C 10×10×80~130 6 φ22 φ13 SR-10J 8×8×67~110 6 φ16 4 (Spacer is needed) SR-20RⅡ 12×12×100~135 6 4 φ22/φ22 6/12 φ23 Toolpost for SR-20Ⅲ 12×12×95~135 6 φ22/φ22 6/12 φ23 2 toolholders SR-20ⅣtypeA 12×12×100~130 7 φ22/φ22 6/12 φ23 (deep boring) SR-20ⅣtypeB 12×12×100~130 7 φ22/φ22 6/12 φ23 on the front side SR-25J/32J 16×16×95~155 6 4 φ22+φ32/φ22 φ32 16×16×95~135 4 SR-38typeB 16×16×100 2 φ22+φ32 5/ 13 φ38 20×20×105~135(Cut-Off) 1 12×12×73~79 R ST-20 12×12×65~73(Cut-Off) φ22/φ32 φ20 16×16×64~73 16×16×65~73(Cut-Off) 16×16×83~88 Vc= π×Dm×n 16×16×71~82 Information ST-38 16×16×84~88(Cut-Off) φ22/φ32 φ32/φ38 Technical 20×20×84~88 20×20×84~88(Cut-Off) 16×16×105~135 4 16×16×84~88 SV-38R 20×20×115~135(Cut-Off) 1 16×16×71~82 φ22/φ32 -/8 φ32/φ38 20×20×84~88 SV-12/20 12×12×95~135 5 12×12×70~78 φ22/φ32 16×16×95~135 4 16×16×65~70 SV-32 16×16×95~135 4 16×16×60~78(80~88) φ22/φ32 φ7 SW-7 8×8×80~120 6 SW-12RⅡ 10×10×95~115 7 φ16/φ16+φ22 4/8 φ13 SW-20 12×12×80~150 6 φ22 4/8 φ23 16×16×80~144 ·Manufacturers are in no particular order. R40
