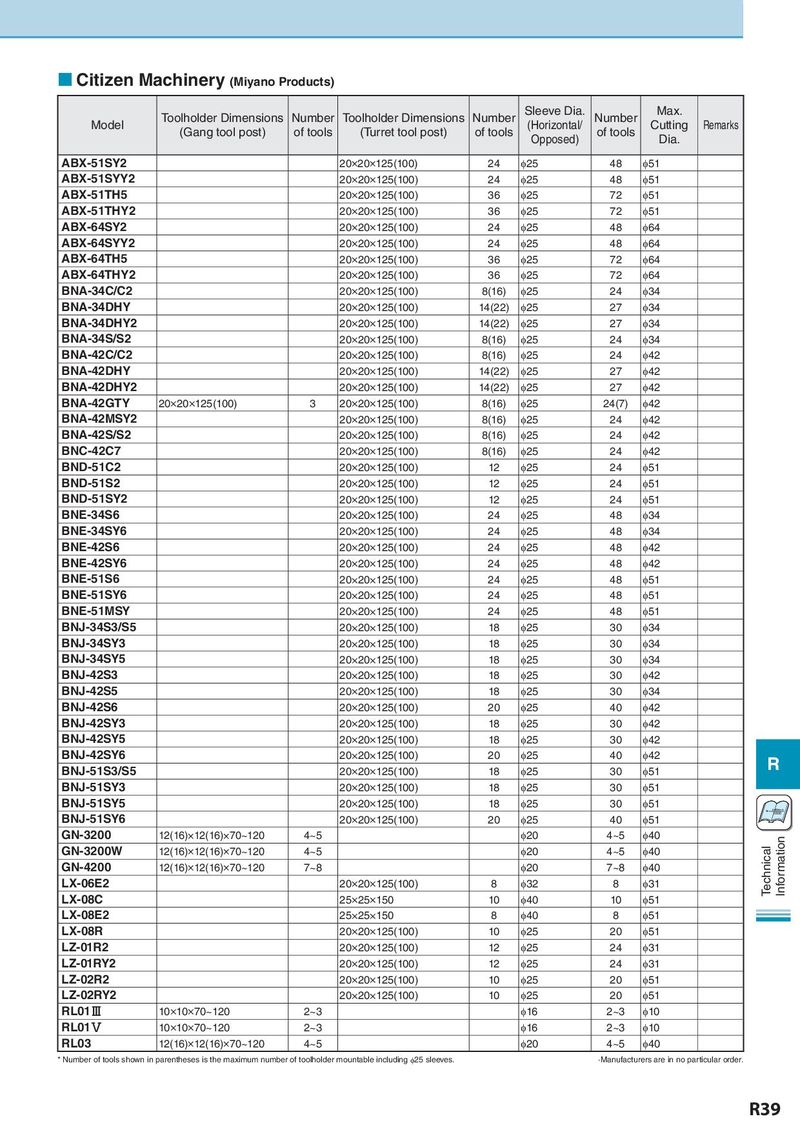

 Citizen Machinery (Miyano Products) Toolholder Dimensions Number Toolholder Dimensions Number Sleeve Dia. Number Max. Model (Gang tool post) of tools (Turret tool post) of tools (Horizontal/ of tools Cutting Remarks Opposed) Dia. ABX-51SY2 20×20×125(100) 24 φ25 48 φ51 ABX-51SYY2 20×20×125(100) 24 φ25 48 φ51 ABX-51TH5 20×20×125(100) 36 φ25 72 φ51 ABX-51THY2 20×20×125(100) 36 φ25 72 φ51 ABX-64SY2 20×20×125(100) 24 φ25 48 φ64 ABX-64SYY2 20×20×125(100) 24 φ25 48 φ64 ABX-64TH5 20×20×125(100) 36 φ25 72 φ64 ABX-64THY2 20×20×125(100) 36 φ25 72 φ64 BNA-34C/C2 20×20×125(100) 8(16) φ25 24 φ34 BNA-34DHY 20×20×125(100) 14(22) φ25 27 φ34 BNA-34DHY2 20×20×125(100) 14(22) φ25 27 φ34 BNA-34S/S2 20×20×125(100) 8(16) φ25 24 φ34 BNA-42C/C2 20×20×125(100) 8(16) φ25 24 φ42 BNA-42DHY 20×20×125(100) 14(22) φ25 27 φ42 BNA-42DHY2 20×20×125(100) 14(22) φ25 27 φ42 BNA-42GTY 20×20×125(100) 3 20×20×125(100) 8(16) φ25 24(7) φ42 BNA-42MSY2 20×20×125(100) 8(16) φ25 24 φ42 BNA-42S/S2 20×20×125(100) 8(16) φ25 24 φ42 BNC-42C7 20×20×125(100) 8(16) φ25 24 φ42 BND-51C2 20×20×125(100) 12 φ25 24 φ51 BND-51S2 20×20×125(100) 12 φ25 24 φ51 BND-51SY2 20×20×125(100) 12 φ25 24 φ51 BNE-34S6 20×20×125(100) 24 φ25 48 φ34 BNE-34SY6 20×20×125(100) 24 φ25 48 φ34 BNE-42S6 20×20×125(100) 24 φ25 48 φ42 BNE-42SY6 20×20×125(100) 24 φ25 48 φ42 BNE-51S6 20×20×125(100) 24 φ25 48 φ51 BNE-51SY6 20×20×125(100) 24 φ25 48 φ51 BNE-51MSY 20×20×125(100) 24 φ25 48 φ51 BNJ-34S3/S5 20×20×125(100) 18 φ25 30 φ34 BNJ-34SY3 20×20×125(100) 18 φ25 30 φ34 BNJ-34SY5 20×20×125(100) 18 φ25 30 φ34 BNJ-42S3 20×20×125(100) 18 φ25 30 φ42 BNJ-42S5 20×20×125(100) 18 φ25 30 φ34 BNJ-42S6 20×20×125(100) 20 φ25 40 φ42 BNJ-42SY3 20×20×125(100) 18 φ25 30 φ42 BNJ-42SY5 20×20×125(100) 18 φ25 30 φ42 BNJ-42SY6 20×20×125(100) 20 φ25 40 φ42 R BNJ-51S3/S5 20×20×125(100) 18 φ25 30 φ51 BNJ-51SY3 20×20×125(100) 18 φ25 30 φ51 BNJ-51SY5 20×20×125(100) 18 φ25 30 φ51 π×Dm×n Vc= BNJ-51SY6 20×20×125(100) 20 φ25 40 φ51 GN-3200 12(16)×12(16)×70~120 4~5 φ20 4~5 φ40 Information GN-3200W 12(16)×12(16)×70~120 4~5 φ20 4~5 φ40 Technical GN-4200 12(16)×12(16)×70~120 7~8 φ20 7~8 φ40 LX-06E2 20×20×125(100) 8 φ32 8 φ31 LX-08C 25×25×150 10 φ40 10 φ51 LX-08E2 25×25×150 8 φ40 8 φ51 LX-08R 20×20×125(100) 10 φ25 20 φ51 LZ-01R2 20×20×125(100) 12 φ25 24 φ31 LZ-01RY2 20×20×125(100) 12 φ25 24 φ31 LZ-02R2 20×20×125(100) 10 φ25 20 φ51 LZ-02RY2 20×20×125(100) 10 φ25 20 φ51 RL01Ⅲ 10×10×70~120 2~3 φ16 2~3 φ10 RL01Ⅴ 10×10×70~120 2~3 φ16 2~3 φ10 RL03 12(16)×12(16)×70~120 4~5 φ20 4~5 φ40 * Number of tools shown in parentheses is the maximum number of toolholder mountable including φ25 sleeves. ·Manufacturers are in no particular order. R39
