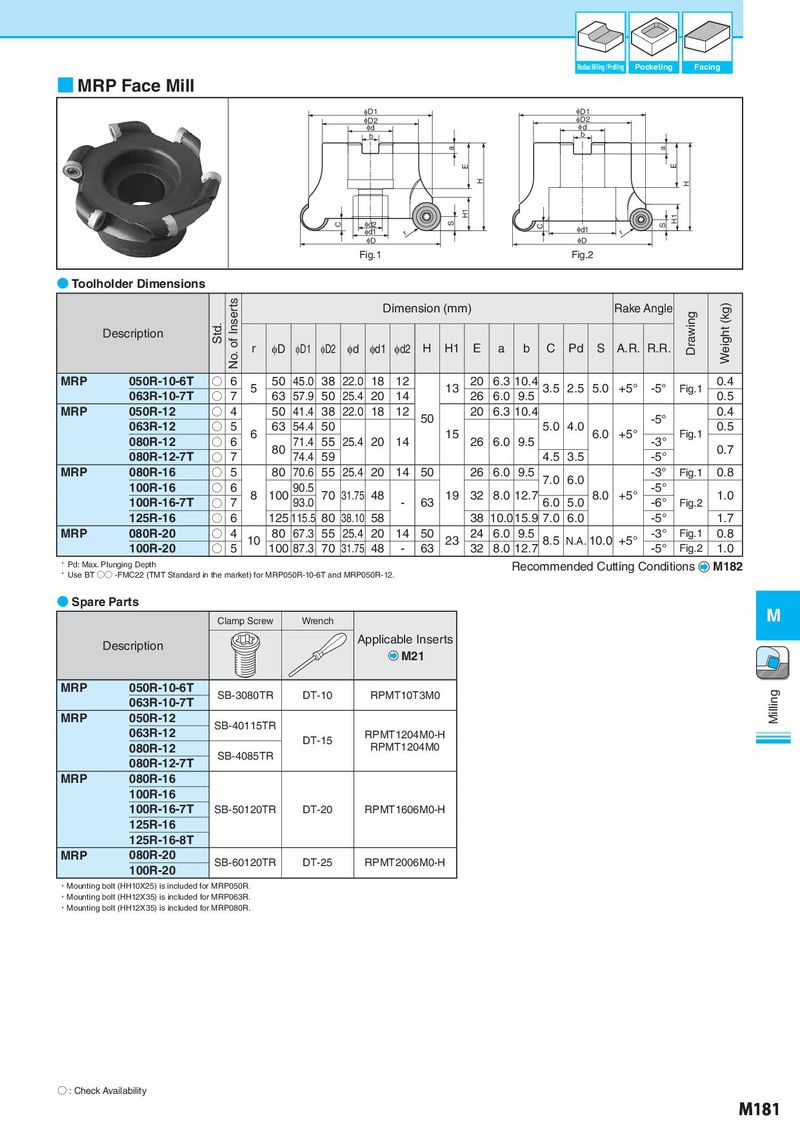

Radius Milling / Profiling Pocketing Facing ■ MRP Face Mill φD1 φD1 φD2 φD2 φd φd b b a a E E H H H1 H1 C φd2 S C S φd1 r φd1 r φD φD Fig.1 Fig.2 ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Angle Drawing Weight (kg) Description Std. r φD φD1 φD2 φd φd1 φd2 H H1 E a b C Pd S A.R. R.R. MRP 050R-10-6T ○ 6 5 50 45.0 38 22.0 18 12 13 20 6.3 10.4 3.5 2.5 5.0 +5° -5° Fig.1 0.4 063R-10-7T ○ 7 63 57.9 50 25.4 20 14 26 6.0 9.5 0.5 MRP 050R-12 ○ 4 50 41.4 38 22.0 18 12 50 20 6.3 10.4 -5° 0.4 063R-12 ○ 5 6 63 54.4 50 15 5.0 4.0 6.0 +5° Fig.1 0.5 080R-12 ○ 6 80 71.4 55 25.4 20 14 26 6.0 9.5 -3° 0.7 080R-12-7T ○ 7 74.4 59 4.5 3.5 -5° MRP 080R-16 ○ 5 80 70.6 55 25.4 20 14 50 26 6.0 9.5 7.0 6.0 -3° Fig.1 0.8 100R-16 ○ 6 8 100 90.5 70 31.75 48 19 32 8.0 12.7 8.0 +5° -5° 1.0 100R-16-7T ○ 7 93.0 - 63 6.0 5.0 -6° Fig.2 125R-16 ○ 6 125 115.5 80 38.10 58 38 10.0 15.9 7.0 6.0 -5° 1.7 MRP 080R-20 ○ 4 10 80 67.3 55 25.4 20 14 50 23 24 6.0 9.5 8.5 N.A. 10.0 +5° -3° Fig.1 0.8 100R-20 ○ 5 100 87.3 70 31.75 48 - 63 32 8.0 12.7 -5° Fig.2 1.0 ・ Pd: Max. Plunging Depth Recommended Cutting Conditions M182 ・ Use BT ○○ -FMC22 (TMT Standard in the market) for MRP050R-10-6T and MRP050R-12. ● Spare Parts Clamp Screw Wrench M Description Applicable Inserts M21 MRP 050R-10-6T SB-3080TR DT-10 RPMT10T3M0 Milling 063R-10-7T MRP 050R-12 SB-40115TR 063R-12 DT-15 RPMT1204M0-H 080R-12 SB-4085TR RPMT1204M0 080R-12-7T MRP 080R-16 100R-16 100R-16-7T SB-50120TR DT-20 RPMT1606M0-H 125R-16 125R-16-8T MRP 080R-20 SB-60120TR DT-25 RPMT2006M0-H 100R-20 ・Mounting bolt (HH10X25) is included for MRP050R. ・Mounting bolt (HH12X35) is included for MRP063R. ・Mounting bolt (HH12X35) is included for MRP080R. ○ : Check Availability M181
