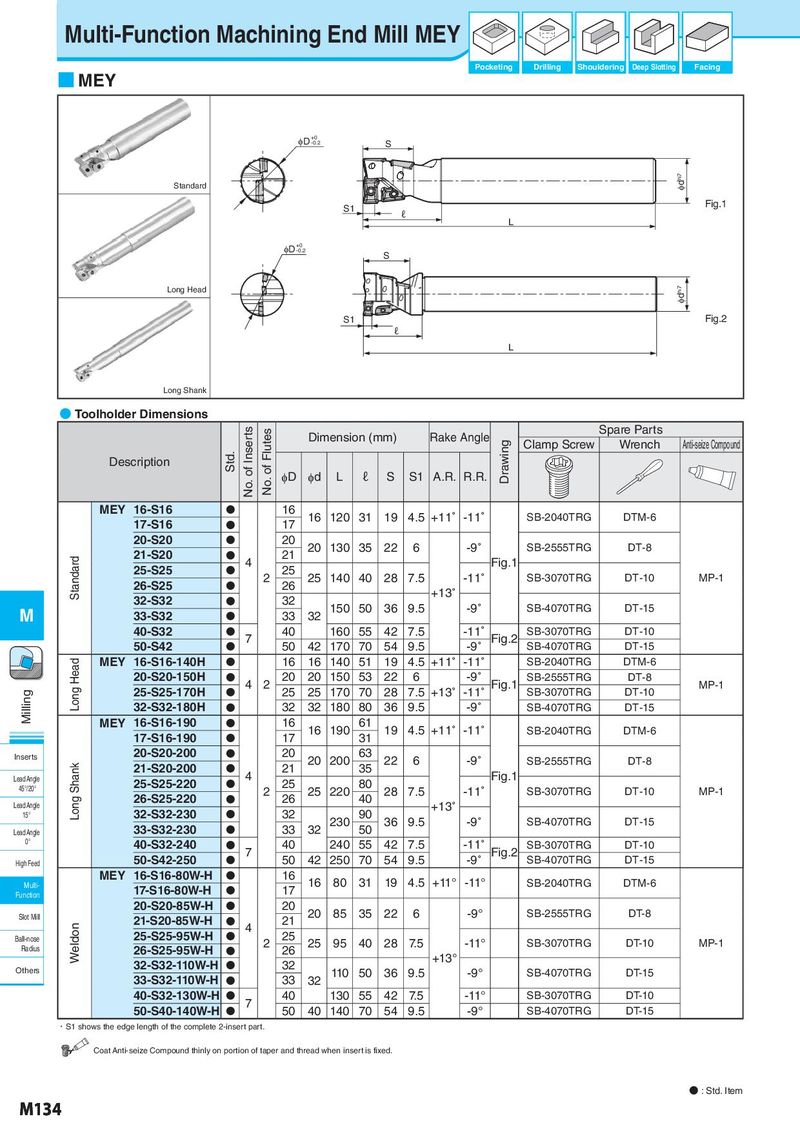

Multi-Function Machining End Mill MEY Pocketing Drilling Shouldering Deep Slotting Facing ■ MEY φD +0 -0.2 S Standard φdh7 S1 Fig.1 ℓ L φD +0 -0.2 S Long Head φdh7 S1 Fig.2 ℓ L Long Shank ● Toolholder Dimensions No. of Inserts No. of Flutes Dimension (mm) Rake Angle Spare Parts Std. Drawing Clamp Screw Wrench Anti-seize Compound Description φD φd L ℓ S S1 A.R. R.R. MEY 16-S16 ● 16 16 120 31 19 4.5 +11ﾟ -11ﾟ SB-2040TRG DTM-6 17-S16 ● 17 20-S20 ● 20 20 130 35 22 6 -9ﾟ SB-2555TRG DT-8 Standard 21-S20 ● 4 21 Fig.1 25-S25 ● 2 25 25 140 40 28 7.5 -11ﾟ SB-3070TRG DT-10 MP-1 26-S25 ● 26 +13ﾟ 32-S32 ● 32 150 50 36 9.5 -9ﾟ SB-4070TRG DT-15 M 33-S32 ● 33 32 40-S32 ● 7 40 160 55 42 7.5 -11ﾟ Fig.2 SB-3070TRG DT-10 50-S42 ● 50 42 170 70 54 9.5 -9ﾟ SB-4070TRG DT-15 Long Head MEY 16-S16-140H ● 16 16 140 51 19 4.5 +11ﾟ -11ﾟ SB-2040TRG DTM-6 20-S20-150H ● 4 2 20 20 150 53 22 6 -9ﾟ Fig.1 SB-2555TRG DT-8 MP-1 Milling 25-S25-170H ● 25 25 170 70 28 7.5 +13ﾟ -11ﾟ SB-3070TRG DT-10 32-S32-180H ● 32 32 180 80 36 9.5 -9ﾟ SB-4070TRG DT-15 MEY 16-S16-190 ● 16 16 190 61 19 4.5 +11ﾟ -11ﾟ SB-2040TRG DTM-6 17-S16-190 ● 17 31 Inserts 20-S20-200 ● 20 20 200 63 22 6 -9ﾟ SB-2555TRG DT-8 Long Shank 21-S20-200 ● 4 21 35 Fig.1 Lead Angle 25-S25-220 ● 25 80 45°/20° 2 25 220 28 7.5 -11ﾟ SB-3070TRG DT-10 MP-1 Lead Angle 26-S25-220 ● 26 40 +13ﾟ 15° 32-S32-230 ● 32 230 90 36 9.5 -9ﾟ SB-4070TRG DT-15 Lead Angle 33-S32-230 ● 33 32 50 0° 40-S32-240 ● 40 240 55 42 7.5 -11ﾟ SB-3070TRG DT-10 50-S42-250 ● 7 50 42 250 70 54 9.5 -9ﾟ Fig.2 SB-4070TRG DT-15 High Feed MEY 16-S16-80W-H ● 16 16 80 31 19 4.5 +11° -11° SB-2040TRG DTM-6 Multi- 17-S16-80W-H ● 17 Function 20-S20-85W-H ● 20 20 85 35 22 6 -9° SB-2555TRG DT-8 Slot Mill 21-S20-85W-H ● 21 Weldon 25-S25-95W-H ● 4 25 Ball-nose 2 25 95 40 28 7.5 -11° SB-3070TRG DT-10 MP-1 Radius 26-S25-95W-H ● 26 32-S32-110W-H ● 32 +13° Others 110 50 36 9.5 -9° SB-4070TRG DT-15 33-S32-110W-H ● 33 32 40-S32-130W-H ● 7 40 130 55 42 7.5 -11° SB-3070TRG DT-10 50-S40-140W-H ● 50 40 140 70 54 9.5 -9° SB-4070TRG DT-15 ・S1 shows the edge length of the complete 2-insert par t. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. ● : Std. Item M134
