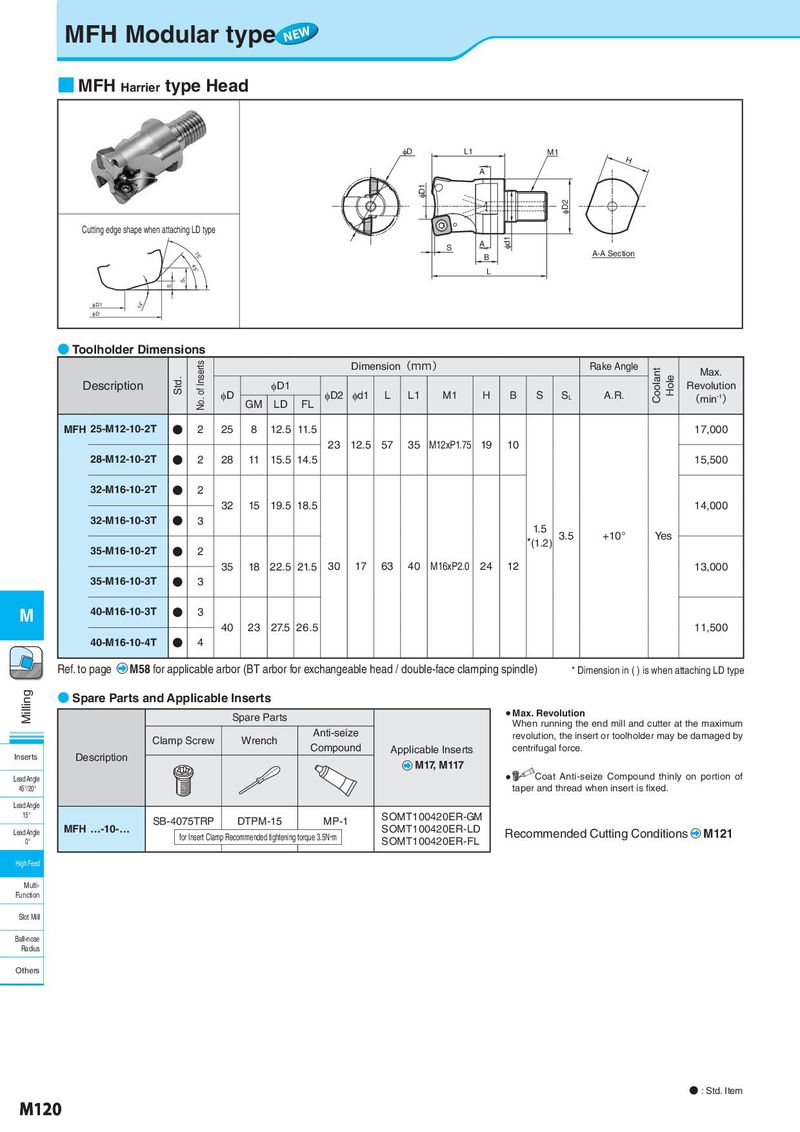

MFH Modular type NEW ■ MFH Harrier type Head φD L1 M1 H A φD1 φD2 Cutting edge shape when attaching LD type S A φd1 75° B A-A Section 45° L SL S φ D1 14° φD ● Toolholder Dimensions No. of Inserts Dimension（ｍｍ） Rake Angle Coolant Max. Description Std. φD1 Hole Revolution φD φD2 φd1 L L1 M1 H B S SL A.R. （min-1） GM LD FL MFH 25-M12-10-2T ● 2 25 8 12.5 11.5 17,000 23 12.5 57 35 M12xP1.75 19 10 28-M12-10-2T ● 2 28 11 15.5 14.5 15,500 32-M16-10-2T ● 2 32 15 19.5 18.5 14,000 32-M16-10-3T ● 3 1.5 *(1.2) 3.5 +10° Yes 35-M16-10-2T ● 2 35 18 22.5 21.5 30 17 63 40 M16xP2.0 24 12 13,000 35-M16-10-3T ● 3 M 40-M16-10-3T ● 3 40 23 27.5 26.5 11,500 40-M16-10-4T ● 4 Ref. to page M58 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) * Dimension in ( ) is when attaching LD type Milling ● Spare Parts and Applicable Inserts Spare Parts ● Max. Revolution When running the end mill and cutter at the maximum Clamp Screw Wrench Anti-seize revolution, the insert or toolholder may be damaged by Compound Applicable Inserts centrifugal force. Inserts Description M17, M117 Lead Angle ● Coat Anti-seize Compound thinly on portion of 45°/20° taper and thread when insert is fixed. Lead Angle 15° SB-4075TRP DTPM-15 MP-1 SOMT100420ER-GM Lead Angle MFH …-10-… for Insert Clamp Recommended tightening torque 3.5N・m SOMT100420ER-LD Recommended Cutting Conditions M121 0° SOMT100420ER-FL High Feed Multi- Function Slot Mill Ball-nose Radius Others ● : Std. Item M120
