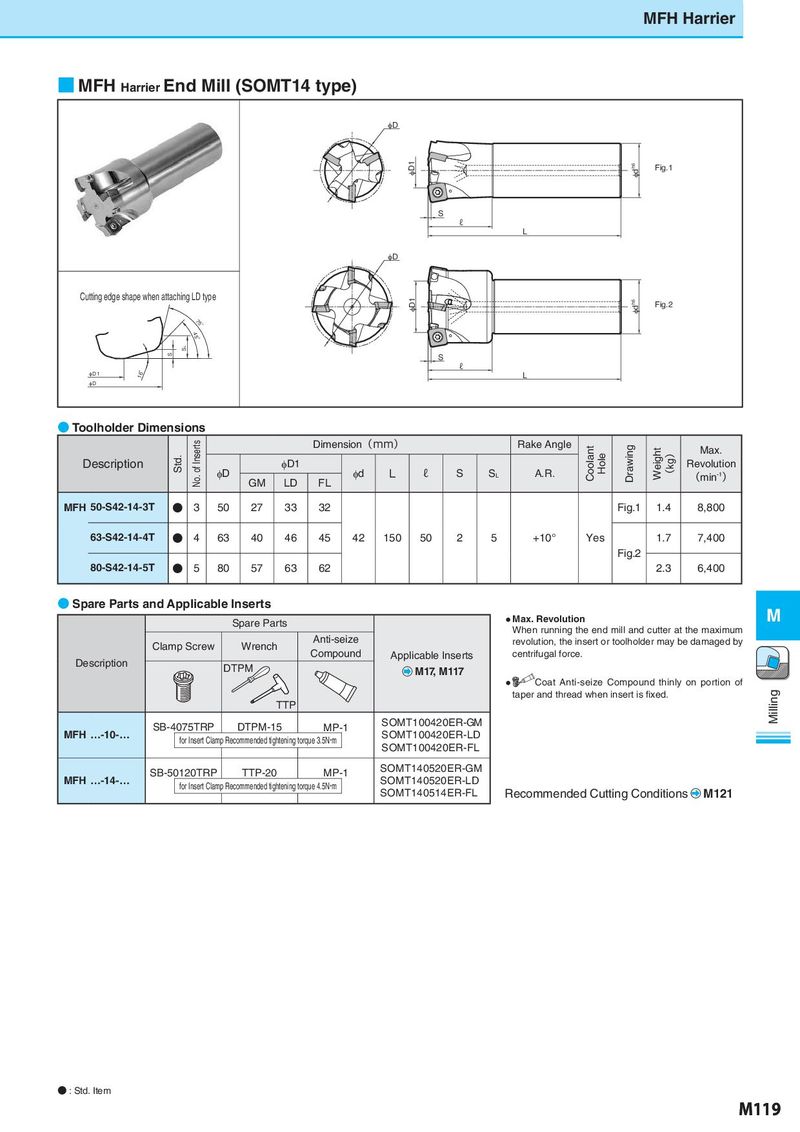

MFH Harrier ■ MFH Harrier End Mill (SOMT14 type) φD φD1 φdh6 Fig.1 S ℓ L φD Cutting edge shape when attaching LD type φD1 φdh6 Fig.2 75° 45° SL S S 16° ℓ φD1 L φD ● Toolholder Dimensions No. of Inserts Dimension（ｍｍ） Rake Angle Coolant Drawing Weight Max. Description Std. φD1 Hole kg） Revolution φD φd Ｌ ℓ S SL A.R. （ （min-1） GM LD FL MFH 50-S42-14-3T ● 3 50 27 33 32 Fig.1 1.4 8,800 63-S42-14-4T ● 4 63 40 46 45 42 150 50 2 5 +10° Yes 1.7 7,400 Fig.2 80-S42-14-5T ● 5 80 57 63 62 2.3 6,400 ● Spare Parts and Applicable Inserts M Spare Parts ● Max. Revolution When running the end mill and cutter at the maximum Clamp Screw Wrench Anti-seize revolution, the insert or toolholder may be damaged by Compound Applicable Inserts centrifugal force. Description DTPM M17, M117 ● Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Milling TTP SB-4075TRP DTPM-15 MP-1 SOMT100420ER-GM MFH …-10-… for Insert Clamp Recommended tightening torque 3.5N・m SOMT100420ER-LD SOMT100420ER-FL SB-50120TRP TTP-20 MP-1 SOMT140520ER-GM MFH …-14-… for Insert Clamp Recommended tightening torque 4.5N・m SOMT140520ER-LD SOMT140514ER-FL Recommended Cutting Conditions M121 ● : Std. Item M119
