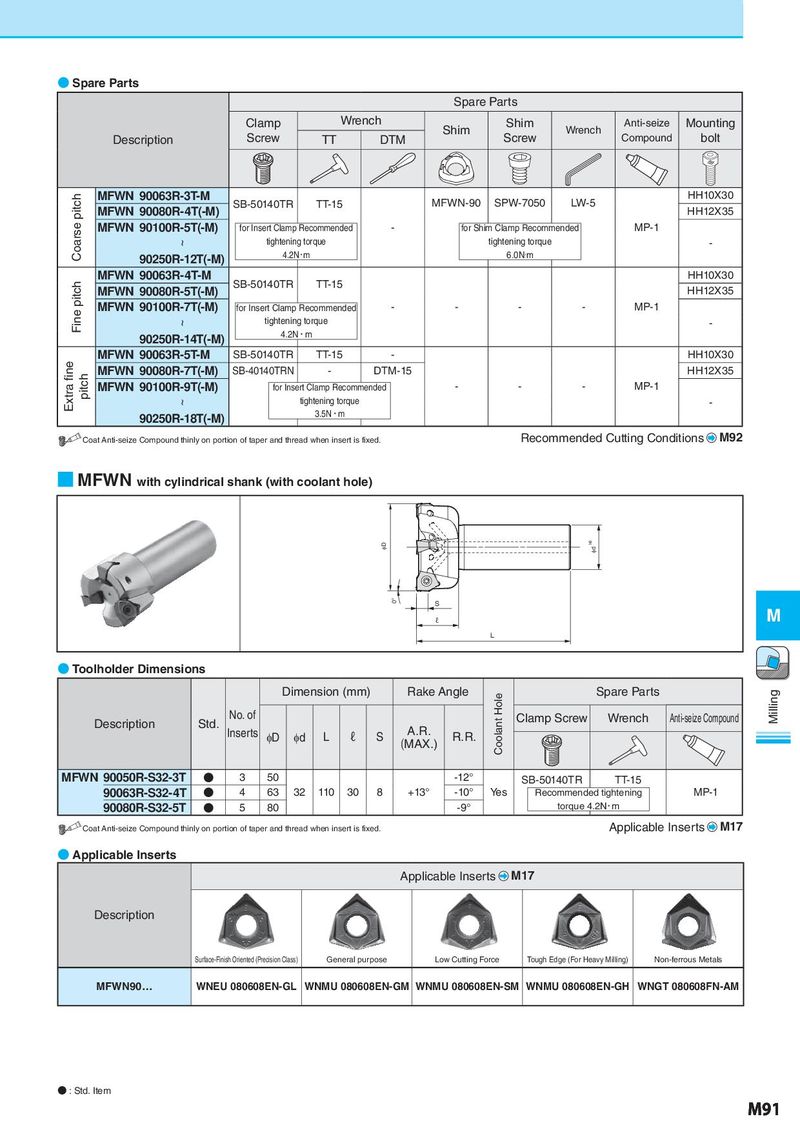

● Spare Parts Spare Parts Clamp Wrench Shim Shim Wrench Anti-seize Mounting Description Screw TT DTM Screw Compound bolt Coarse pitch MFWN 90063R-3T-M SB-50140TR TT-15 MFWN-90 SPW-7050 LW-5 HH10X30 MFWN 90080R-4T(-M) HH12X35 MFWN 90100R-5T(-M) for Insert Clamp Recommended - for Shim Clamp Recommended MP-1 ~ tightening torque tightening torque - 90250R-12T(-M) 4.2N･m 6.0N･m MFWN 90063R-4T-M SB-50140TR TT-15 HH10X30 Fine pitch MFWN 90080R-5T(-M) HH12X35 MFWN 90100R-7T(-M) for Insert Clamp Recommended - - - - MP-1 ~ tightening torque - 90250R-14T(-M) 4.2N・m MFWN 90063R-5T-M SB-50140TR TT-15 - HH10X30 Extra fine pitch MFWN 90080R-7T(-M) SB-40140TRN - DTM-15 HH12X35 MFWN 90100R-9T(-M) for Insert Clamp Recommended - - - MP-1 ~ tightening torque - 90250R-18T(-M) 3.5N・m Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions M92 ■ MFWN with cylindrical shank (with coolant hole) φD φd h6 0° S ℓ M L ● Toolholder Dimensions Dimension (mm) Rake Angle Coolant Hole Spare Parts Milling Description Std. No. of Clamp Screw Wrench Anti-seize Compound Inserts φD φd L ℓ S A.R. R.R. (MAX.) MFWN 90050R-S32-3T ● 3 50 -12° SB-50140TR TT-15 90063R-S32-4T ● 4 63 32 110 30 8 +13° -10° Yes Recommended tightening MP-1 90080R-S32-5T ● 5 80 -9° torque 4.2N･m Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Applicable Inserts M17 ● Applicable Inserts Applicable Inserts M17 Description Surface-Finish Oriented (Precision Class) General purpose Low Cutting Force Tough Edge (For Heavy Milling) Non-ferrous Metals MFWN90… WNEU 080608EN-GL WNMU 080608EN-GM WNMU 080608EN-SM WNMU 080608EN-GH WNGT 080608FN-AM ● : Std. Item M91
