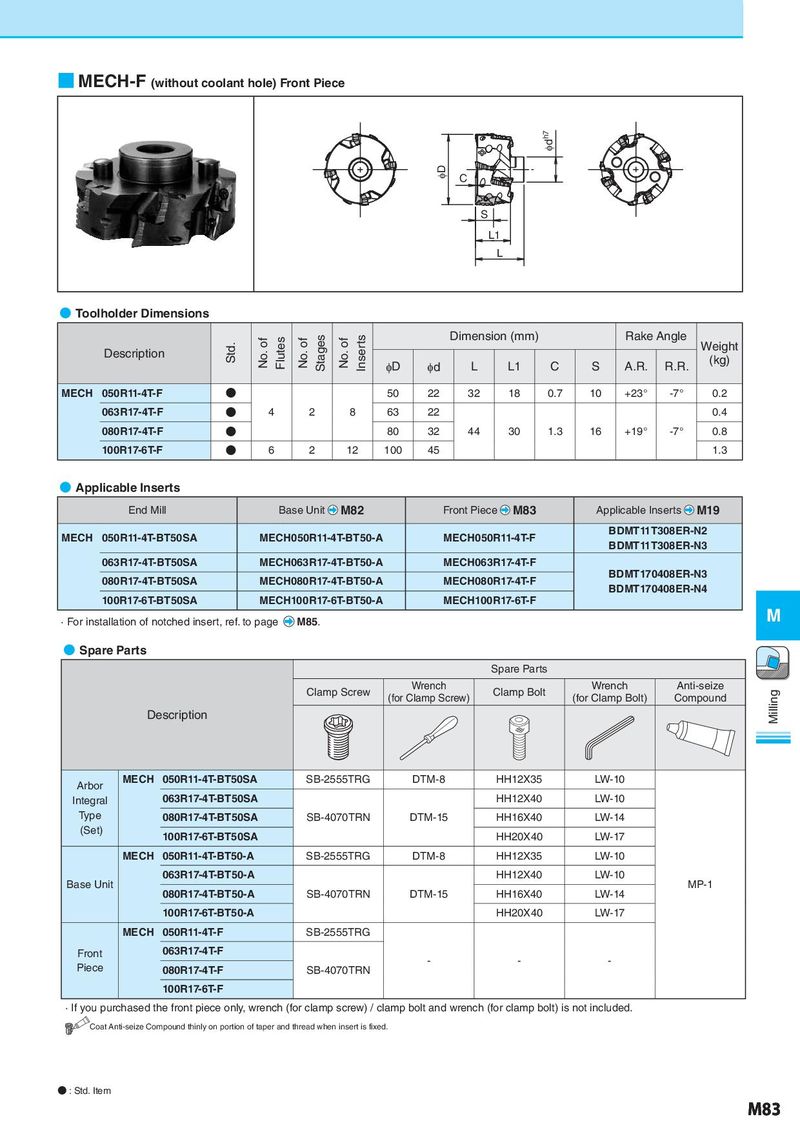

■ MECH-F (without coolant hole) Front Piece φdh7 φD C S L1 L ● Toolholder Dimensions Std. No. of Flutes No. of Stages No. of Inserts Dimension (mm) Rake Angle Weight Description (kg) φD φd L L1 C S A.R. R.R. MECH 050R11-4T-F N 50 22 32 18 0.7 10 +23° -7° 0.2 063R17-4T-F N 4 2 8 63 22 0.4 080R17-4T-F N 80 32 44 30 1.3 16 +19° -7° 0.8 100R17-6T-F N 6 2 12 100 45 1.3 ● Applicable Inserts End Mill Base Unit M82 Front Piece M83 Applicable Inserts M19 MECH 050R11-4T-BT50SA MECH050R11-4T-BT50-A MECH050R11-4T-F BDMT11T308ER-N2 BDMT11T308ER-N3 063R17-4T-BT50SA MECH063R17-4T-BT50-A MECH063R17-4T-F 080R17-4T-BT50SA MECH080R17-4T-BT50-A MECH080R17-4T-F BDMT170408ER-N3 BDMT170408ER-N4 100R17-6T-BT50SA MECH100R17-6T-BT50-A MECH100R17-6T-F · For installation of notched insert, ref. to page M85. M ● Spare Parts Spare Parts Clamp Screw Wrench Clamp Bolt Wrench Anti-seize Milling (for Clamp Screw) (for Clamp Bolt) Compound Description Arbor MECH 050R11-4T-BT50SA SB-2555TRG DTM-8 HH12X35 LW-10 Integral 063R17-4T-BT50SA HH12X40 LW-10 Type 080R17-4T-BT50SA SB-4070TRN DTM-15 HH16X40 LW-14 (Set) 100R17-6T-BT50SA HH20X40 LW-17 MECH 050R11-4T-BT50-A SB-2555TRG DTM-8 HH12X35 LW-10 Base Unit 063R17-4T-BT50-A HH12X40 LW-10 MP-1 080R17-4T-BT50-A SB-4070TRN DTM-15 HH16X40 LW-14 100R17-6T-BT50-A HH20X40 LW-17 MECH 050R11-4T-F SB-2555TRG Front 063R17-4T-F - - - Piece 080R17-4T-F SB-4070TRN 100R17-6T-F · If you purchased the front piece only, wrench (for clamp screw) / clamp bolt and wrench (for clamp bolt) is not included. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. ● : Std. Item M83
