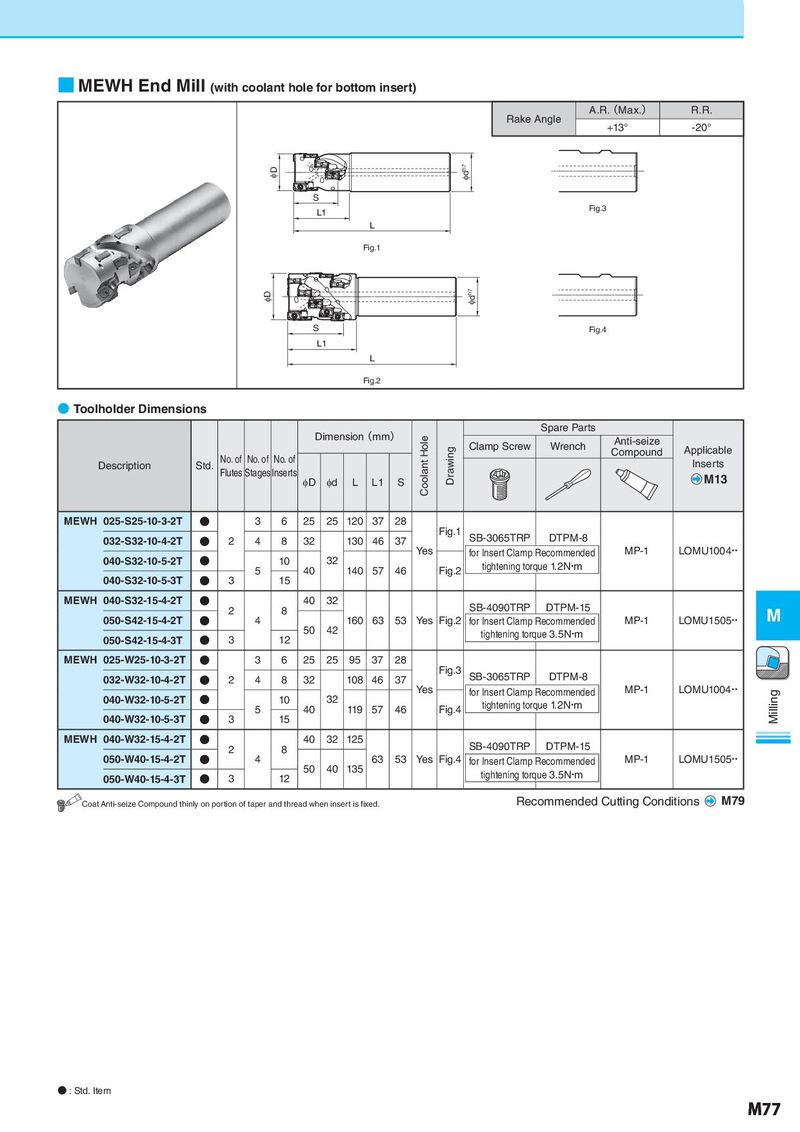

■ MEWH End Mill (with coolant hole for bottom insert) Rake Angle A.R.（Max.） R.R. +13° -20° φD φdｈ7 S L1 Fig.3 L Fig.1 φD φdｈ7 S Fig.4 L1 L Fig.2 ● Toolholder Dimensions Dimension（mm） Spare Parts Coolant Hole Drawing Clamp Screw Wrench Anti-seize Applicable No. of No. of No. of Compound Description Std. Flutes StagesInserts Inserts φD φd L L1 S M13 MEWH 025-S25-10-3-2T ● 3 6 25 25 120 37 28 Fig.1 SB-3065TRP DTPM-8 032-S32-10-4-2T ● 2 4 8 32 130 46 37 LOMU1004・・ Yes for Insert Clamp Recommended MP-1 040-S32-10-5-2T ● 10 32 tightening torque 1.2N・m 5 40 140 57 46 Fig.2 040-S32-10-5-3T ● 3 15 MEWH 040-S32-15-4-2T ● 40 32 SB-4090TRP DTPM-15 2 8 LOMU1505・・ M 050-S42-15-4-2T ● 4 160 63 53 Yes Fig.2 for Insert Clamp Recommended MP-1 50 42 tightening torque 3.5N・m 050-S42-15-4-3T ● 3 12 MEWH 025-W25-10-3-2T ● 3 6 25 25 95 37 28 Fig.3 SB-3065TRP DTPM-8 032-W32-10-4-2T ● 2 4 8 32 108 46 37 LOMU1004・・ Yes for Insert Clamp Recommended MP-1 Milling 040-W32-10-5-2T ● 10 32 tightening torque 1.2N・m 5 40 119 57 46 Fig.4 040-W32-10-5-3T ● 3 15 MEWH 040-W32-15-4-2T ● 40 32 125 SB-4090TRP DTPM-15 2 8 LOMU1505・・ 050-W40-15-4-2T ● 4 63 53 Yes Fig.4 for Insert Clamp Recommended MP-1 50 40 135 tightening torque 3.5N・m 050-W40-15-4-3T ● 3 12 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions M79 ● : Std. Item M77
