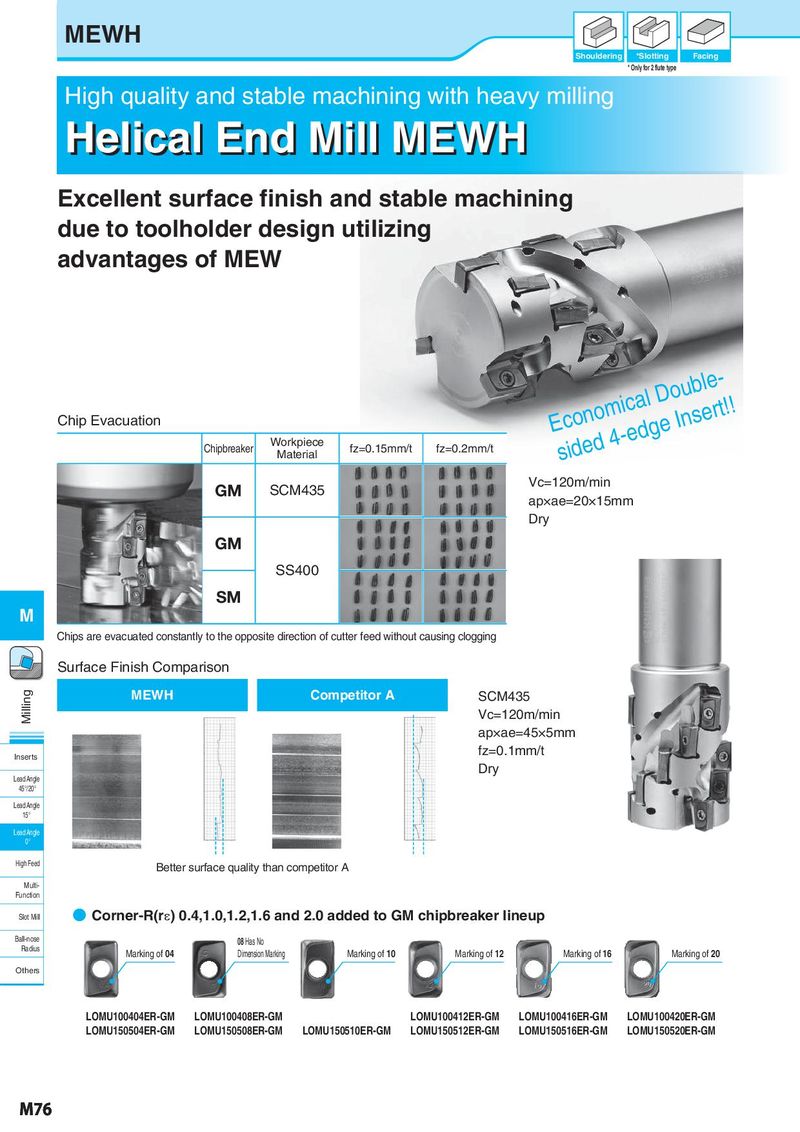

MEWH Shouldering *Slotting Facing * Only for 2 flute type High quality and stable machining with heavy milling Helical End Mill MEWH Excellent surface finish and stable machining due to toolholder design utilizing advantages of MEW Chip Evacuation Escidoendom4-iceadlgDeoIunbseler-t!! Chipbreaker Workpiece fz=0.15mm/t fz=0.2mm/t Material GM SCM435 Vc=120m/min ap×ae=20×15mm Dry GM SS400 SM M Chips are evacuated constantly to the opposite direction of cutter feed without causing clogging Surface Finish Comparison Milling MEWH Competitor A SCM435 Vc=120m/min ap×ae=45×5mm Inserts fz=0.1mm/t Dry Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° High Feed Better surface quality than competitor A Multi- Function Slot Mill ● Corner-R(rε) 0.4,1.0,1.2,1.6 and 2.0 added to GM chipbreaker lineup Ball-nose 08 Has No Radius Marking of 04 Dimension Marking Marking of 10 Marking of 12 Marking of 16 Marking of 20 Others LOMU100404ER-GM LOMU100408ER-GM LOMU100412ER-GM LOMU100416ER-GM LOMU100420ER-GM LOMU150504ER-GM LOMU150508ER-GM LOMU150510ER-GM LOMU150512ER-GM LOMU150516ER-GM LOMU150520ER-GM M76
