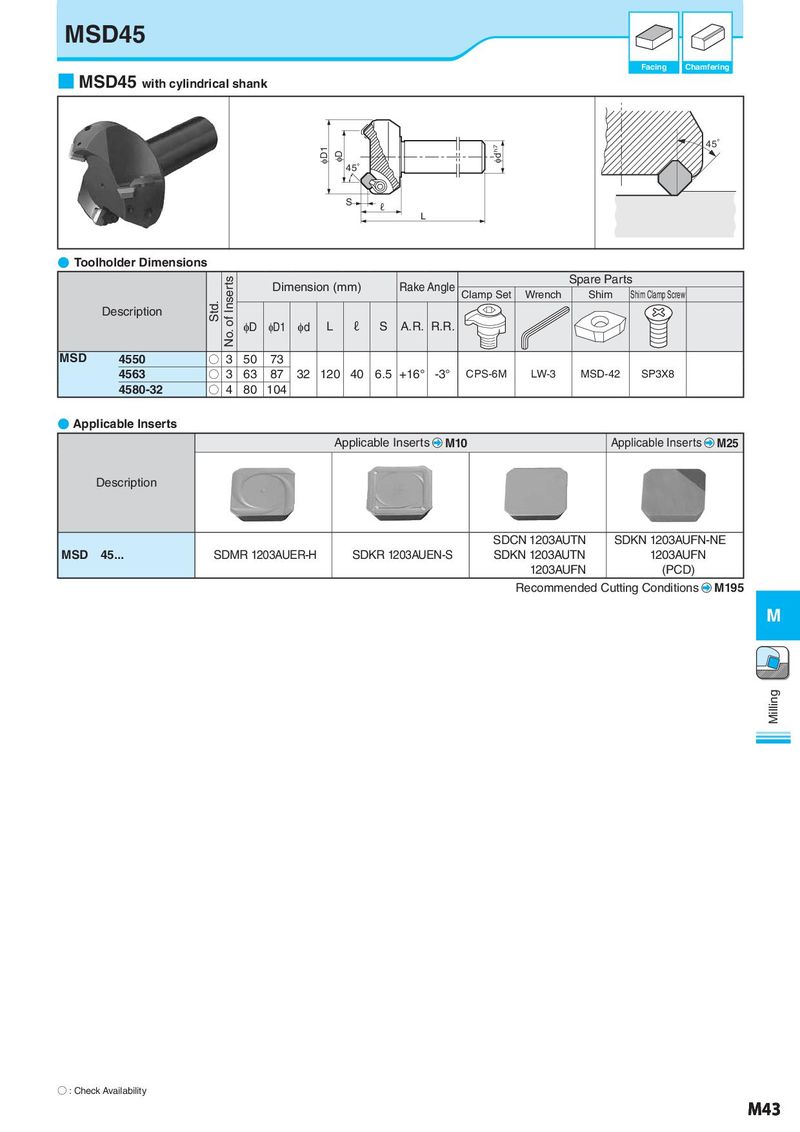

MSD45 Facing Chamfering ■ MSD45 with cylindrical shank φD1 φd h7 45° φD 45° S ℓ L ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Angle Spare Parts Clamp Set Wrench Shim Shim Clamp Screw Description Std. φD φD1 φd L ℓ S A.R. R.R. MSD 4550 ○ 3 50 73 4563 ○ 3 63 87 32 120 40 6.5 +16° -3° CPS-6M LW-3 MSD-42 SP3X8 4580-32 ○ 4 80 104 ● Applicable Inserts Applicable Inserts M10 Applicable Inserts M25 Description SDCN 1203AUTN SDKN 1203AUFN-NE MSD　45... SDMR 1203AUER-H SDKR 1203AUEN-S SDKN 1203AUTN 1203AUFN 1203AUFN (PCD) Recommended Cutting Conditions M195 M Milling ○ : Check Availability M43
