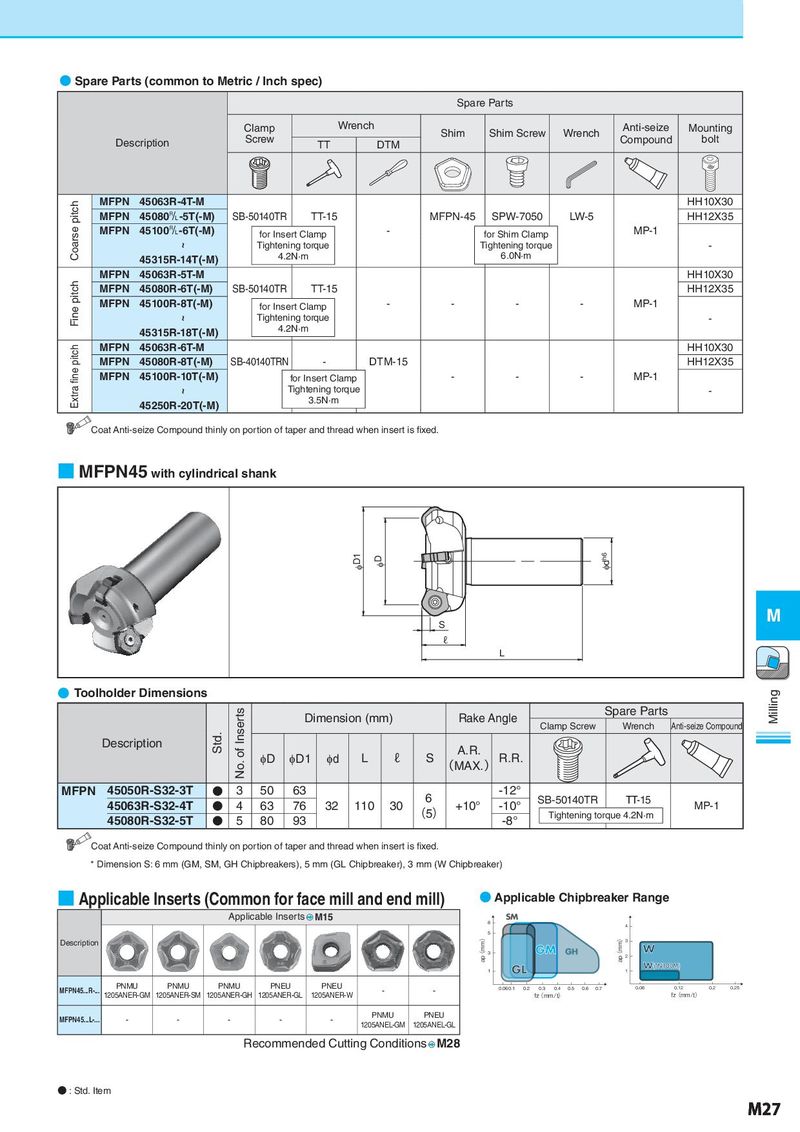

● Spare Parts (common to Metric / Inch spec) Spare Parts Clamp Wrench Shim Shim Screw Wrench Anti-seize Mounting Description Screw TT DTM Compound bolt Coarse pitch MFPN 45063R-4T-M HH10X30 MFPN 45080&-5T(-M) SB-50140TR TT-15 MFPN-45 SPW-7050 LW-5 HH12X35 MFPN 45100&-6T(-M) for Insert Clamp - for Shim Clamp MP-1 ~ Tightening torque Tightening torque - 45315R-14T(-M) 4.2N·m 6.0N·m MFPN 45063R-5T-M HH10X30 Fine pitch MFPN 45080R-6T(-M) SB-50140TR TT-15 HH12X35 MFPN 45100R-8T(-M) for Insert Clamp - - - - MP-1 ~ Tightening torque - 45315R-18T(-M) 4.2N·m Extra fine pitch MFPN 45063R-6T-M HH10X30 MFPN 45080R-8T(-M) SB-40140TRN - DTM-15 HH12X35 MFPN 45100R-10T(-M) for Insert Clamp - - - MP-1 ~ Tightening torque - 45250R-20T(-M) 3.5N·m 　 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. ■ MFPN45 with cylindrical shank ID1 ID Idh6 S M ℓ L ● Toolholder Dimensions Milling No. of Inserts Dimension (mm) Rake Angle Spare Parts Clamp Screw Wrench Anti-seize Compound Description Std. A.R. φD φD1 φd L ℓ S （MAX.） R.R. MFPN 45050R-S32-3T ● 3 50 63 6 -12° SB-50140TR TT-15 45063R-S32-4T ● 4 63 76 32 110 30 （5） +10° -10° MP-1 45080R-S32-5T ● 5 80 93 -8° Tightening torque 4.2N·m 　 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. * Dimension S: 6 mm (GM, SM, GH Chipbreakers), 5 mm (GL Chipbreaker), 3 mm (W Chipbreaker) ■ Applicable Inserts (Common for face mill and end mill) ● Applicable Chipbreaker Range Applicable Inserts M15 6 SM 4 ap（mm） 5 ap（mm） Description 3 3 GM GH 2 W 1 GL 1 W(TN100M) MFPN45...R-... PNMU PNMU PNMU PNEU PNEU - - 0.06 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.06 0.12 0.2 0.25 1205ANER-GM 1205ANER-SM 1205ANER-GH 1205ANER-GL 1205ANER-W fz（mm/t） fz（mm/t） MFPN45...L-... - - - - - PNMU PNEU 1205ANEL-GM 1205ANEL-GL Recommended Cutting Conditions M28 ● : Std. Item M27
