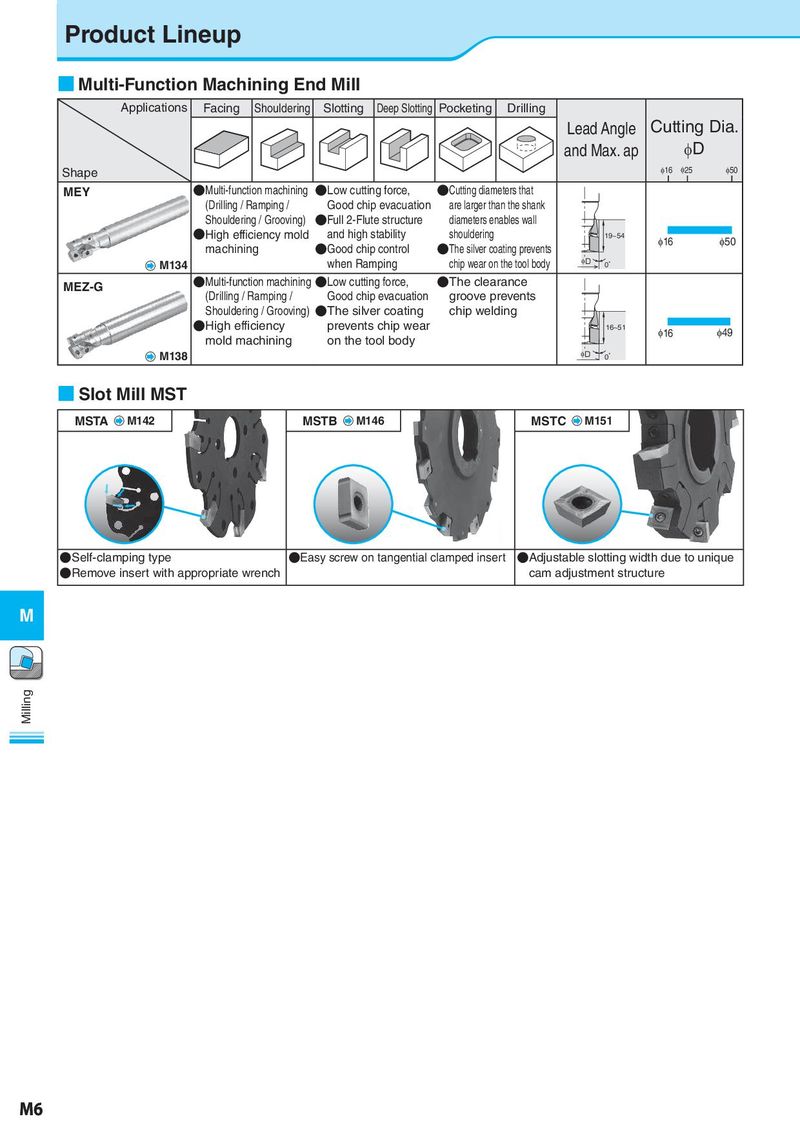

Product Lineup ■ Multi-Function Machining End Mill Applications Facing Shouldering Slotting Deep Slotting Pocketing Drilling Lead Angle Cutting Dia. and Max. ap φD Shape φ16 φ25 φ50 MEY ●Multi-function machining ●Low cutting force, ●Cutting diameters that (Drilling / Ramping / Good chip evacuation are larger than the shank Shouldering / Grooving) ●Full 2-Flute structure diameters enables wall ●High efficiency mold and high stability shouldering 19~54 φ16 φ50 machining ●Good chip control ●The silver coating prevents M134 when Ramping chip wear on the tool body ID 0゜ MEZ-G ●Multi-function machining ●Low cutting force, ●The clearance (Drilling / Ramping / Good chip evacuation groove prevents Shouldering / Grooving) ●The silver coating chip welding ●High efficiency prevents chip wear 16~51 φ16 φ49 mold machining on the tool body M138 ID 0゜ ■ Slot Mill MST MSTA M142 MSTB M146 MSTC M151 ●Self-clamping type ●Easy screw on tangential clamped insert ●Adjustable slotting width due to unique ●Remove insert with appropriate wrench cam adjustment structure M Milling M6
