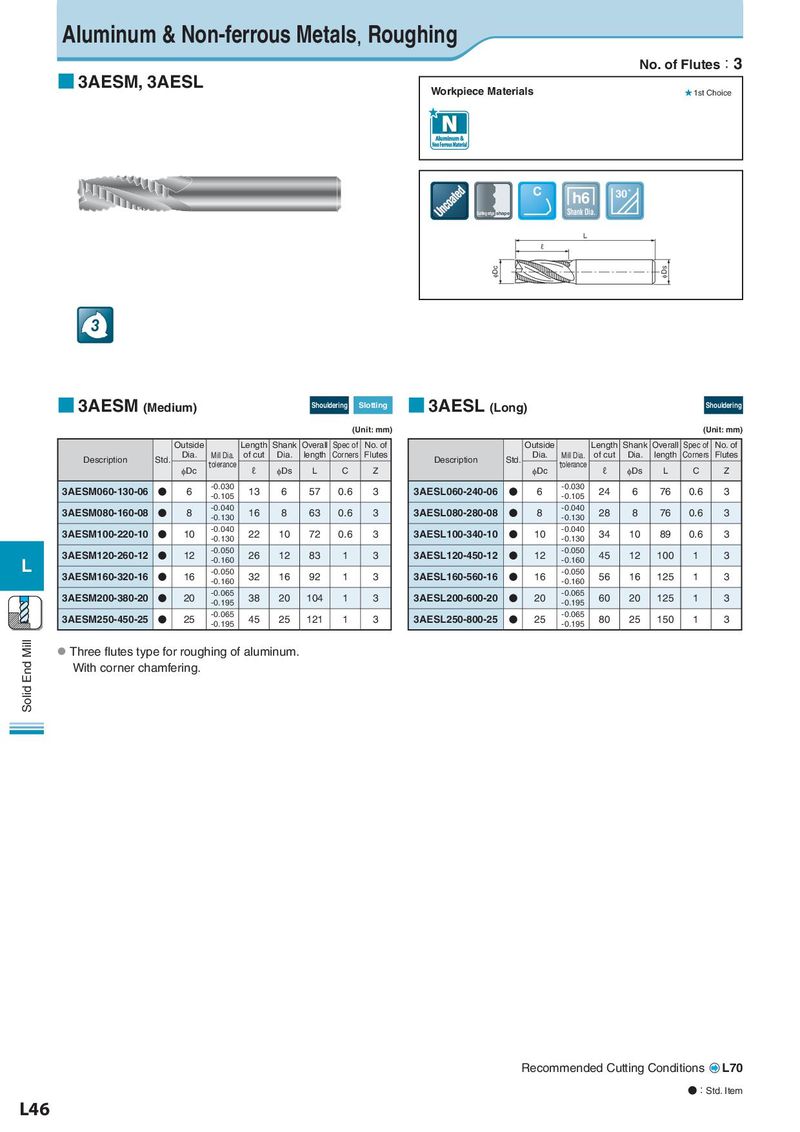

Aluminum & Non-ferrous Metals, Roughing No. of Flutes：3 ■ 3AESM, 3AESL Workpiece Materials ★ 1st Choice C h6 30˚ Cutting edge shape Shank Dia. L ℓ φDc φDs 3 ■ 3AESM (Medium) Shouldering Slotting ■ 3AESL (Long) Shouldering (Unit: mm) (Unit: mm) Outside Length Shank Overall Spec of No. of Outside Length Shank Overall Spec of No. of Description Std. Dia. Mill Dia. of cut Dia. length Corners Flutes Description Std. Dia. Mill Dia. of cut Dia. length Corners Flutes φDc tolerance ℓ φDs L C Z φDc tolerance ℓ φDs L C Z 3AESM060-130-06 N 6 -0.030 13 6 57 0.6 3 3AESL060-240-06 N 6 -0.030 24 6 76 0.6 3 -0.105 -0.105 3AESM080-160-08 N 8 -0.040 16 8 63 0.6 3 3AESL080-280-08 N 8 -0.040 28 8 76 0.6 3 -0.130 -0.130 3AESM100-220-10 N 10 -0.040 22 10 72 0.6 3 3AESL100-340-10 N 10 -0.040 34 10 89 0.6 3 -0.130 -0.130 3AESM120-260-12 N 12 -0.050 26 12 83 1 3 3AESL120-450-12 N 12 -0.050 45 12 100 1 3 L -0.160 -0.160 3AESM160-320-16 N 16 -0.050 32 16 92 1 3 3AESL160-560-16 N 16 -0.050 56 16 125 1 3 -0.160 -0.160 3AESM200-380-20 N 20 -0.065 38 20 104 1 3 3AESL200-600-20 N 20 -0.065 60 20 125 1 3 -0.195 -0.195 3AESM250-450-25 N 25 -0.065 45 25 121 1 3 3AESL250-800-25 N 25 -0.065 80 25 150 1 3 -0.195 -0.195 Solid End Mill ● Three flutes type for roughing of aluminum. With corner chamfering. Recommended Cutting Conditions L70 ●：Std. Item L46
