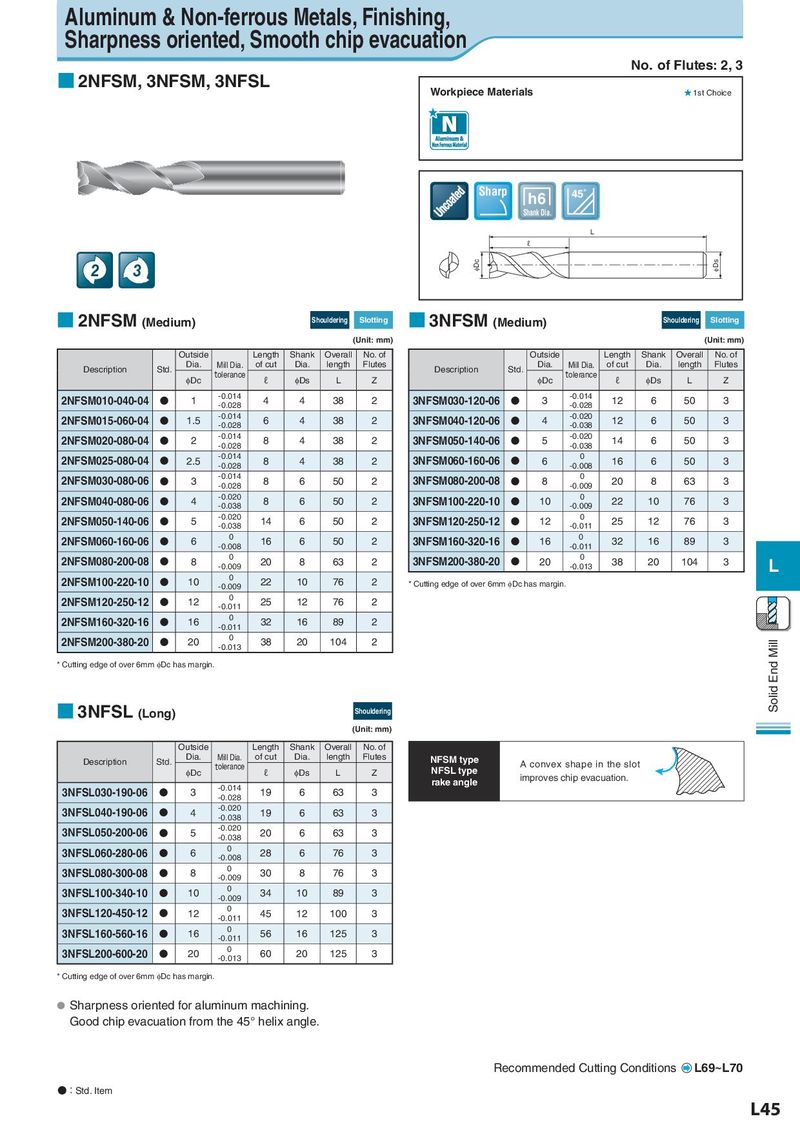

Aluminum & Non-ferrous Metals, Finishing, Sharpness oriented, Smooth chip evacuation No. of Flutes: 2, 3 ■ 2NFSM, 3NFSM, 3NFSL Workpiece Materials ★ 1st Choice Sharp h6 45˚ Shank Dia. L ℓ 2 3 φDc φDs ■ 2NFSM (Medium) Shouldering Slotting ■ 3NFSM (Medium) Shouldering Slotting (Unit: mm) (Unit: mm) Outside Length Shank Overall No. of Outside Length Shank Overall No. of Description Std. Dia. Mill Dia. of cut Dia. length Flutes Description Std. Dia. Mill Dia. of cut Dia. length Flutes φDc tolerance ℓ φDs L Z φDc tolerance ℓ φDs L Z 2NFSM010-040-04 N 1 -0.014 4 4 38 2 3NFSM030-120-06 N 3 -0.014 12 6 50 3 -0.028 -0.028 2NFSM015-060-04 N 1.5 -0.014 6 4 38 2 3NFSM040-120-06 N 4 -0.020 12 6 50 3 -0.028 -0.038 2NFSM020-080-04 N 2 -0.014 8 4 38 2 3NFSM050-140-06 N 5 -0.020 14 6 50 3 -0.028 -0.038 2NFSM025-080-04 N 2.5 -0.014 8 4 38 2 3NFSM060-160-06 N 6 0 16 6 50 3 -0.028 -0.008 2NFSM030-080-06 N 3 -0.014 8 6 50 2 3NFSM080-200-08 N 8 0 20 8 63 3 -0.028 -0.009 2NFSM040-080-06 N 4 -0.020 8 6 50 2 3NFSM100-220-10 N 10 0 22 10 76 3 -0.038 -0.009 2NFSM050-140-06 N 5 -0.020 14 6 50 2 3NFSM120-250-12 N 12 0 25 12 76 3 -0.038 -0.011 2NFSM060-160-06 N 6 0 16 6 50 2 3NFSM160-320-16 N 16 0 32 16 89 3 -0.008 -0.011 2NFSM080-200-08 N 8 0 20 8 63 2 3NFSM200-380-20 N 20 0 38 20 104 3 L -0.009 -0.013 2NFSM100-220-10 N 10 0 22 10 76 2 * Cutting edge of over 6mm φDc has margin. -0.009 2NFSM120-250-12 N 12 0 25 12 76 2 -0.011 2NFSM160-320-16 N 16 0 32 16 89 2 -0.011 2NFSM200-380-20 N 20 0 38 20 104 2 Solid End Mill -0.013 * Cutting edge of over 6mm φDc has margin. ■ 3NFSL (Long) Shouldering (Unit: mm) Outside Length Shank Overall No. of Description Std. Dia. Mill Dia. of cut Dia. length Flutes NFSM type A convex shape in the slot φDc tolerance ℓ φDs L Z NFSL type rake angle improves chip evacuation. 3NFSL030-190-06 N 3 -0.014 19 6 63 3 -0.028 3NFSL040-190-06 N 4 -0.020 19 6 63 3 -0.038 3NFSL050-200-06 N 5 -0.020 20 6 63 3 -0.038 3NFSL060-280-06 N 6 0 28 6 76 3 -0.008 3NFSL080-300-08 N 8 0 30 8 76 3 -0.009 3NFSL100-340-10 N 10 0 34 10 89 3 -0.009 3NFSL120-450-12 N 12 0 45 12 100 3 -0.011 3NFSL160-560-16 N 16 0 56 16 125 3 -0.011 3NFSL200-600-20 N 20 0 60 20 125 3 -0.013 * Cutting edge of over 6mm φDc has margin. ● Sharpness oriented for aluminum machining. Good chip evacuation from the 45° helix angle. Recommended Cutting Conditions L69~L70 ●：Std. Item L45
