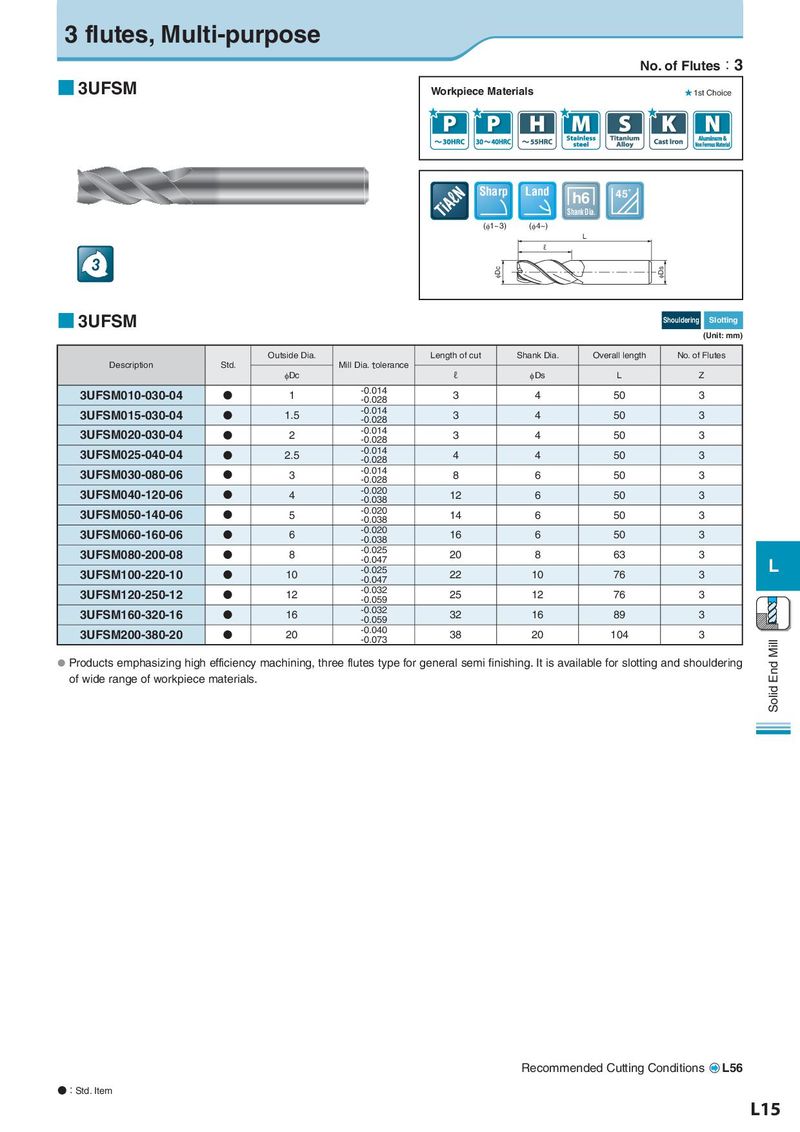

□□□□□□ 3 flutes, Multi-purpose No. of Flutes：3 ■ 3UFSM Workpiece Materials ★ 1st Choice Sharp Land h6 45˚ Shank Dia. (φ1~3) (φ4~) L ℓ 3 φDc φDs ■ 3UFSM Shouldering Slotting (Unit: mm) Outside Dia. Length of cut Shank Dia. Overall length No. of Flutes Description Std. Mill Dia. tolerance φDc ℓ φDs L Z 3UFSM010-030-04 N 1 -0.014 3 4 50 3 -0.028 3UFSM015-030-04 N 1.5 -0.014 3 4 50 3 -0.028 3UFSM020-030-04 N 2 -0.014 3 4 50 3 -0.028 3UFSM025-040-04 N 2.5 -0.014 4 4 50 3 -0.028 3UFSM030-080-06 N 3 -0.014 8 6 50 3 -0.028 3UFSM040-120-06 N 4 -0.020 12 6 50 3 -0.038 3UFSM050-140-06 N 5 -0.020 14 6 50 3 -0.038 3UFSM060-160-06 N 6 -0.020 16 6 50 3 -0.038 3UFSM080-200-08 N 8 -0.025 20 8 63 3 -0.047 L 3UFSM100-220-10 N 10 -0.025 22 10 76 3 -0.047 3UFSM120-250-12 N 12 -0.032 25 12 76 3 -0.059 3UFSM160-320-16 N 16 -0.032 32 16 89 3 -0.059 3UFSM200-380-20 N 20 -0.040 38 20 104 3 -0.073 Solid End Mill ● Products emphasizing high efficiency machining, three flutes type for general semi finishing. It is available for slotting and shouldering of wide range of workpiece materials. Recommended Cutting Conditions L56 ●：Std. Item L15
