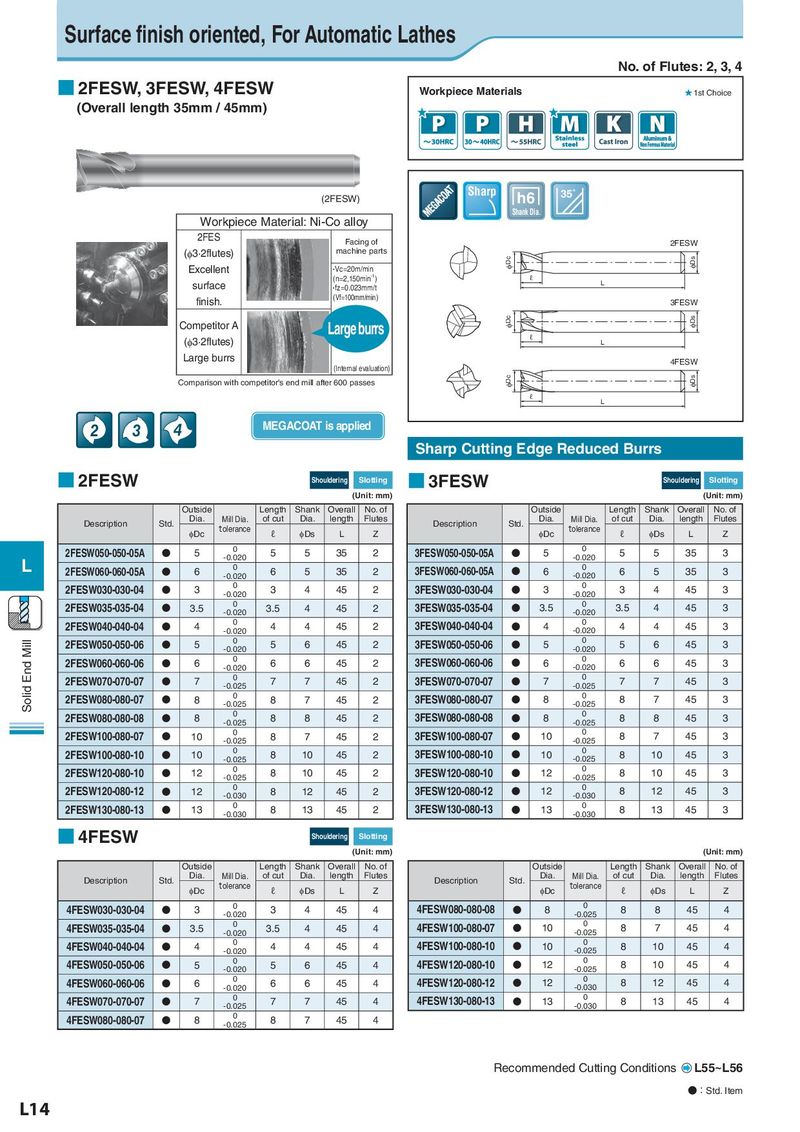

Surface finish oriented, For Automatic Lathes No. of Flutes: 2, 3, 4 ■ 2FESW, 3FESW, 4FESW Workpiece Materials ★ 1st Choice (Overall length 35mm / 45mm) (2FESW) Sharp h6 35˚ Shank Dia. Workpiece Material: Ni-Co alloy 2FES Facing of 2FESW (φ3·2flutes) machine parts Excellent ・Vc=20m/min φDc φDs (n=2,150min-1) ℓ L surface ・fz=0.023mm/t finish. (Vf=100mm/min) 3FESW Competitor A Large burrs φDc φDs (φ3·2flutes) ℓ L Large burrs 4FESW (Internal evaluation) Comparison with competitor's end mill after 600 passes φDc φDs ℓ L 2 3 4 MEGACOAT is applied Sharp Cutting Edge Reduced Burrs ■ 2FESW Shouldering Slotting ■ 3FESW Shouldering Slotting (Unit: mm) (Unit: mm) Outside Length Shank Overall No. of Outside Length Shank Overall No. of Description Std. Dia. Mill Dia. of cut Dia. length Flutes Description Std. Dia. Mill Dia. of cut Dia. length Flutes φDc tolerance ℓ φDs L Z φDc tolerance ℓ φDs L Z 2FESW050-050-05A N 5 0 5 5 35 2 3FESW050-050-05A N 5 0 5 5 35 3 L -0.020 -0.020 2FESW060-060-05A N 6 0 6 5 35 2 3FESW060-060-05A N 6 0 6 5 35 3 -0.020 -0.020 2FESW030-030-04 N 3 0 3 4 45 2 3FESW030-030-04 N 3 0 3 4 45 3 -0.020 -0.020 2FESW035-035-04 N 3.5 0 3.5 4 45 2 3FESW035-035-04 N 3.5 0 3.5 4 45 3 -0.020 -0.020 2FESW040-040-04 N 4 0 4 4 45 2 3FESW040-040-04 N 4 0 4 4 45 3 -0.020 -0.020 Solid End Mill 2FESW050-050-06 N 5 0 5 6 45 2 3FESW050-050-06 N 5 0 5 6 45 3 -0.020 -0.020 2FESW060-060-06 N 6 0 6 6 45 2 3FESW060-060-06 N 6 0 6 6 45 3 -0.020 -0.020 2FESW070-070-07 N 7 0 7 7 45 2 3FESW070-070-07 N 7 0 7 7 45 3 -0.025 -0.025 2FESW080-080-07 N 8 0 8 7 45 2 3FESW080-080-07 N 8 0 8 7 45 3 -0.025 -0.025 2FESW080-080-08 N 8 0 8 8 45 2 3FESW080-080-08 N 8 0 8 8 45 3 -0.025 -0.025 2FESW100-080-07 N 10 0 8 7 45 2 3FESW100-080-07 N 10 0 8 7 45 3 -0.025 -0.025 2FESW100-080-10 N 10 0 8 10 45 2 3FESW100-080-10 N 10 0 8 10 45 3 -0.025 -0.025 2FESW120-080-10 N 12 0 8 10 45 2 3FESW120-080-10 N 12 0 8 10 45 3 -0.025 -0.025 2FESW120-080-12 N 12 0 8 12 45 2 3FESW120-080-12 N 12 0 8 12 45 3 -0.030 -0.030 2FESW130-080-13 N 13 0 8 13 45 2 3FESW130-080-13 N 13 0 8 13 45 3 -0.030 -0.030 ■ 4FESW Shouldering Slotting (Unit: mm) (Unit: mm) Outside Length Shank Overall No. of Outside Length Shank Overall No. of Description Std. Dia. Mill Dia. of cut Dia. length Flutes Description Std. Dia. Mill Dia. of cut Dia. length Flutes φDc tolerance ℓ φDs L Z φDc tolerance ℓ φDs L Z 4FESW030-030-04 N 3 0 3 4 45 4 4FESW080-080-08 N 8 0 8 8 45 4 -0.020 -0.025 4FESW035-035-04 N 3.5 0 3.5 4 45 4 4FESW100-080-07 N 10 0 8 7 45 4 -0.020 -0.025 4FESW040-040-04 N 4 0 4 4 45 4 4FESW100-080-10 N 10 0 8 10 45 4 -0.020 -0.025 4FESW050-050-06 N 5 0 5 6 45 4 4FESW120-080-10 N 12 0 8 10 45 4 -0.020 -0.025 4FESW060-060-06 N 6 0 6 6 45 4 4FESW120-080-12 N 12 0 8 12 45 4 -0.020 -0.030 4FESW070-070-07 N 7 0 7 7 45 4 4FESW130-080-13 N 13 0 8 13 45 4 -0.025 -0.030 4FESW080-080-07 N 8 0 8 7 45 4 -0.025 Recommended Cutting Conditions L55~L56 ●：Std. Item L14
