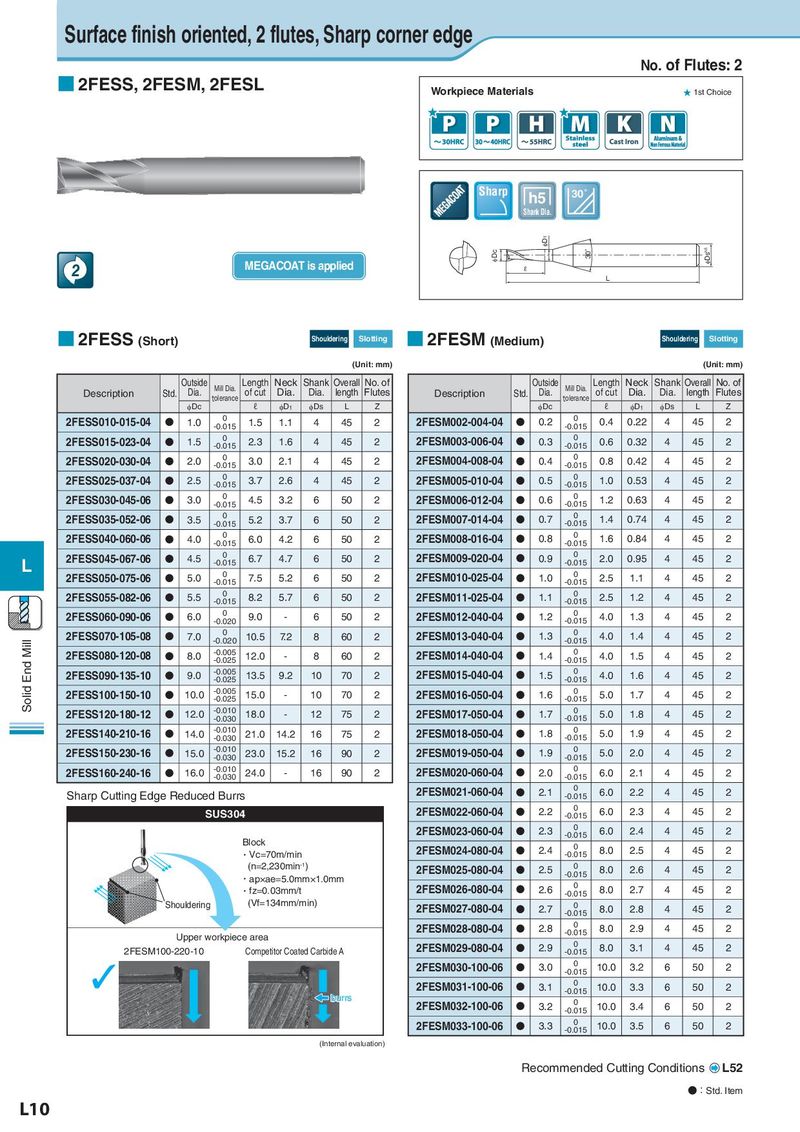

Surface finish oriented, 2 flutes, Sharp corner edge No. of Flutes: 2 ■ 2FESS, 2FESM, 2FESL Workpiece Materials ★ 1st Choice Sharp h5 30˚ Shank Dia. φD1 30° MEGACOAT is applied φDc φDsh5 2 ℓ L ■ 2FESS (Short) Shouldering Slotting ■ 2FESM (Medium) Shouldering Slotting (Unit: mm) (Unit: mm) Outside Mill Dia. Length Neck Shank Overall No. of Outside Mill Dia. Length Neck Shank Overall No. of Description Std. Dia. tolerance of cut Dia. Dia. length Flutes Description Std. Dia. tolerance of cut Dia. Dia. length Flutes φDc ℓ φD1 φDs L Z φDc ℓ φD1 φDs L Z 2FESS010-015-04 N 1.0 0 1.5 1.1 4 45 2 2FESM002-004-04 N 0.2 0 0.4 0.22 4 45 2 -0.015 -0.015 2FESS015-023-04 N 1.5 0 2.3 1.6 4 45 2 2FESM003-006-04 N 0.3 0 0.6 0.32 4 45 2 -0.015 -0.015 2FESS020-030-04 N 2.0 0 3.0 2.1 4 45 2 2FESM004-008-04 N 0.4 0 0.8 0.42 4 45 2 -0.015 -0.015 2FESS025-037-04 N 2.5 0 3.7 2.6 4 45 2 2FESM005-010-04 N 0.5 0 1.0 0.53 4 45 2 -0.015 -0.015 2FESS030-045-06 N 3.0 0 4.5 3.2 6 50 2 2FESM006-012-04 N 0.6 0 1.2 0.63 4 45 2 -0.015 -0.015 2FESS035-052-06 N 3.5 0 5.2 3.7 6 50 2 2FESM007-014-04 N 0.7 0 1.4 0.74 4 45 2 -0.015 -0.015 2FESS040-060-06 N 4.0 0 6.0 4.2 6 50 2 2FESM008-016-04 N 0.8 0 1.6 0.84 4 45 2 -0.015 -0.015 2FESS045-067-06 N 4.5 0 6.7 4.7 6 50 2 2FESM009-020-04 N 0.9 0 2.0 0.95 4 45 2 L -0.015 -0.015 2FESS050-075-06 N 5.0 0 7.5 5.2 6 50 2 2FESM010-025-04 N 1.0 0 2.5 1.1 4 45 2 -0.015 -0.015 2FESS055-082-06 N 5.5 0 8.2 5.7 6 50 2 2FESM011-025-04 N 1.1 0 2.5 1.2 4 45 2 -0.015 -0.015 2FESS060-090-06 N 6.0 0 9.0 - 6 50 2 2FESM012-040-04 N 1.2 0 4.0 1.3 4 45 2 -0.020 -0.015 2FESS070-105-08 N 7.0 0 10.5 7.2 8 60 2 2FESM013-040-04 N 1.3 0 4.0 1.4 4 45 2 Solid End Mill -0.020 -0.015 2FESS080-120-08 N 8.0 -0.005 12.0 - 8 60 2 2FESM014-040-04 N 1.4 0 4.0 1.5 4 45 2 -0.025 -0.015 2FESS090-135-10 N 9.0 -0.005 13.5 9.2 10 70 2 2FESM015-040-04 N 1.5 0 4.0 1.6 4 45 2 -0.025 -0.015 2FESS100-150-10 N 10.0 -0.005 15.0 - 10 70 2 2FESM016-050-04 N 1.6 0 5.0 1.7 4 45 2 -0.025 -0.015 2FESS120-180-12 N 12.0 -0.010 18.0 - 12 75 2 2FESM017-050-04 N 1.7 0 5.0 1.8 4 45 2 -0.030 -0.015 2FESS140-210-16 N 14.0 -0.010 21.0 14.2 16 75 2 2FESM018-050-04 N 1.8 0 5.0 1.9 4 45 2 -0.030 -0.015 2FESS150-230-16 N 15.0 -0.010 23.0 15.2 16 90 2 2FESM019-050-04 N 1.9 0 5.0 2.0 4 45 2 -0.030 -0.015 2FESS160-240-16 N 16.0 -0.010 24.0 - 16 90 2 2FESM020-060-04 N 2.0 0 6.0 2.1 4 45 2 -0.030 -0.015 Sharp Cutting Edge Reduced Burrs 2FESM021-060-04 N 2.1 0 6.0 2.2 4 45 2 -0.015 SUS304 2FESM022-060-04 N 2.2 0 6.0 2.3 4 45 2 -0.015 2FESM023-060-04 N 2.3 0 6.0 2.4 4 45 2 Block -0.015 2FESM024-080-04 N 2.4 0 8.0 2.5 4 45 2 ・Vc=70m/min -0.015 (n=2,230min-1) 2FESM025-080-04 N 2.5 0 8.0 2.6 4 45 2 ・ap×ae=5.0mm×1.0mm -0.015 ・fz=0.03mm/t 2FESM026-080-04 N 2.6 0 8.0 2.7 4 45 2 -0.015 Shouldering (Vf=134mm/min) 2FESM027-080-04 N 2.7 0 8.0 2.8 4 45 2 -0.015 2FESM028-080-04 N 2.8 0 8.0 2.9 4 45 2 Upper workpiece area -0.015 2FESM100-220-10 Competitor Coated Carbide A 2FESM029-080-04 N 2.9 0 8.0 3.1 4 45 2 -0.015 2FESM030-100-06 N 3.0 0 10.0 3.2 6 50 2 -0.015 2FESM031-100-06 N 3.1 0 10.0 3.3 6 50 2 burrs -0.015 2FESM032-100-06 N 3.2 0 10.0 3.4 6 50 2 -0.015 2FESM033-100-06 N 3.3 0 10.0 3.5 6 50 2 -0.015 (Internal evaluation) Recommended Cutting Conditions L52 ●：Std. Item L10
