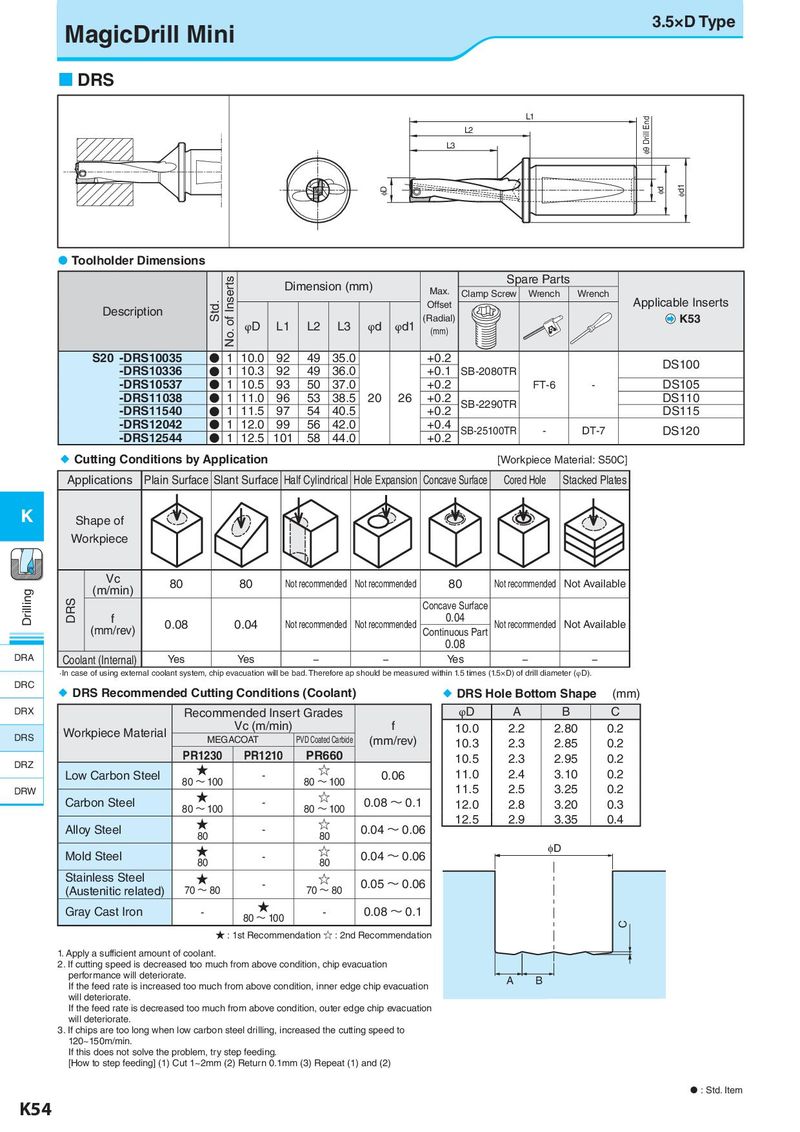

MagicDrill Mini 3.5×D Type  DRS L1 I9 Drill End L2 L3 ID Id Id1  Toolholder Dimensions No. of Inserts Dimension (mm) Spare Parts Max. Clamp Screw Wrench Wrench Description Std. Offset Applicable Inserts φD L1 L2 L3 φd φd1 (Radial) K53 (mm) S20 -DRS10035 ● 1 10.0 92 49 35.0 +0.2 DS100 -DRS10336 ● 1 10.3 92 49 36.0 +0.1 SB-2080TR -DRS10537 ● 1 10.5 93 50 37.0 +0.2 FT-6 - DS105 -DRS11038 ● 1 11.0 96 53 38.5 20 26 +0.2 SB-2290TR DS110 -DRS11540 ● 1 11.5 97 54 40.5 +0.2 DS115 -DRS12042 ● 1 12.0 99 56 42.0 +0.4 SB-25100TR - DT-7 DS120 -DRS12544 ● 1 12.5 101 58 44.0 +0.2  Cutting Conditions by Application [Workpiece Material: S50C] Applications Plain Surface Slant Surface Half Cylindrical Hole Expansion Concave Surface Cored Hole Stacked Plates K Shape of Workpiece Vc 80 80 Not recommended Not recommended 80 Not recommended Not Available Drilling (m/min) DRS Concave Surface f 0.08 0.04 Not recommended Not recommended 0.04 Not recommended Not Available (mm/rev) Continuous Part 0.08 DRA Coolant (Internal) Yes Yes − − Yes − − ·In case of using external coolant system, chip evacuation will be bad. Therefore ap should be measured within 1.5 times (1.5×D) of drill diameter (φD). DRC  DRS Recommended Cutting Conditions (Coolant)  DRS Hole Bottom Shape(mm) DRX Recommended Insert Grades φD A B C Workpiece Material Vc (m/min) f 10.0 2.2 2.80 0.2 DRS MEGACOAT PVD Coated Carbide (mm/rev) 10.3 2.3 2.85 0.2 DRZ PR1230 PR1210 PR660 10.5 2.3 2.95 0.2 Low Carbon Steel ★ - ☆ 0.06 11.0 2.4 3.10 0.2 80 〜 100 80 〜 100 11.5 2.5 3.25 0.2 DRW ★ ☆ Carbon Steel 80 〜 100 - 80 〜 100 0.08 〜 0.1 12.0 2.8 3.20 0.3 Alloy Steel ★ - ☆ 0.04 〜 0.06 12.5 2.9 3.35 0.4 80 80 Mold Steel ★ - ☆ 0.04 〜 0.06 ID 80 80 Stainless Steel ★ - ☆ 0.05 〜 0.06 (Austenitic related) 70 〜 80 70 〜 80 Gray Cast Iron - ★ - 0.08 〜 0.1 80 〜 100 C ★ : 1st Recommendation ☆ : 2nd Recommendation 1. Apply a sufficient amount of coolant. 2. If cutting speed is decreased too much from above condition, chip evacuation performance will deteriorate. A B If the feed rate is increased too much from above condition, inner edge chip evacuation will deteriorate. If the feed rate is decreased too much from above condition, outer edge chip evacuation will deteriorate. 3. If chips are too long when low carbon steel drilling, increased the cutting speed to 120~150m/min. If this does not solve the problem, try step feeding. [How to step feeding] (1) Cut 1~2mm (2) Return 0.1mm (3) Repeat (1) and (2)  : Std. Item K54
