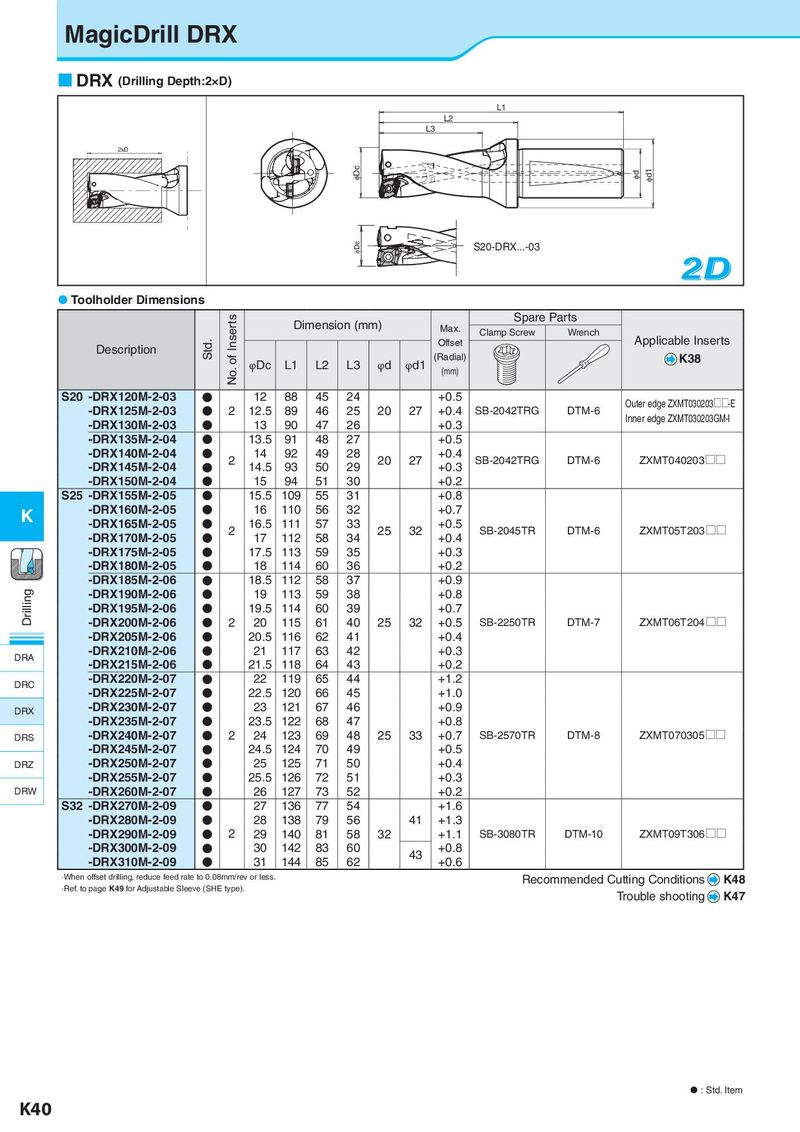

MagicDrill DRX  DRX (Drilling Depth:2×D) L1 2xD L2 L3 L1 2xD L2 L3 L1 2xD L2 L3 φDφcDc φd1 φd φd1 φDc φd φd φd1 φDc φφDDcc S20-DRX...-03 2D  Toolholder Dimensions No. of Inserts Dimension (mm) Spare Parts Max. Clamp Screw Wrench Description Std. Offset Applicable Inserts φDc L1 L2 L3 φd φd1 (Radial) K38 (mm) S20 -DRX120M-2-03 ● 12 88 45 24 +0.5 Outer edge ZXMT030203UU-E -DRX125M-2-03 ● 2 12.5 89 46 25 20 27 +0.4 SB-2042TRG DTM-6 Inner edge ZXMT030203GM-I -DRX130M-2-03 ● 13 90 47 26 +0.3 -DRX135M-2-04 ● 13.5 91 48 27 +0.5 -DRX140M-2-04 ● 2 14 92 49 28 20 27 +0.4 SB-2042TRG DTM-6 ZXMT040203 U U -DRX145M-2-04 ● 14.5 93 50 29 +0.3 -DRX150M-2-04 ● 15 94 51 30 +0.2 S25 -DRX155M-2-05 ● 15.5 109 55 31 +0.8 K -DRX160M-2-05 ● 16 110 56 32 +0.7 -DRX165M-2-05 ● 2 16.5 111 57 33 25 32 +0.5 SB-2045TR DTM-6 ZXMT05T203 U U -DRX170M-2-05 ● 17 112 58 34 +0.4 -DRX175M-2-05 ● 17.5 113 59 35 +0.3 -DRX180M-2-05 ● 18 114 60 36 +0.2 -DRX185M-2-06 ● 18.5 112 58 37 +0.9 Drilling -DRX190M-2-06 ● 19 113 59 38 +0.8 -DRX195M-2-06 ● 19.5 114 60 39 +0.7 -DRX200M-2-06 ● 2 20 115 61 40 25 32 +0.5 SB-2250TR DTM-7 ZXMT06T204 U U -DRX205M-2-06 ● 20.5 116 62 41 +0.4 DRA -DRX210M-2-06 ● 21 117 63 42 +0.3 -DRX215M-2-06 ● 21.5 118 64 43 +0.2 DRC -DRX220M-2-07 ● 22 119 65 44 +1.2 -DRX225M-2-07 ● 22.5 120 66 45 +1.0 DRX -DRX230M-2-07 ● 23 121 67 46 +0.9 -DRX235M-2-07 ● 23.5 122 68 47 +0.8 DRS -DRX240M-2-07 ● 2 24 123 69 48 25 33 +0.7 SB-2570TR DTM-8 ZXMT070305 U U -DRX245M-2-07 ● 24.5 124 70 49 +0.5 DRZ -DRX250M-2-07 ● 25 125 71 50 +0.4 -DRX255M-2-07 ● 25.5 126 72 51 +0.3 DRW -DRX260M-2-07 ● 26 127 73 52 +0.2 S32 -DRX270M-2-09 ● 27 136 77 54 +1.6 -DRX280M-2-09 ● 28 138 79 56 41 +1.3 -DRX290M-2-09 ● 2 29 140 81 58 32 +1.1 SB-3080TR DTM-10 ZXMT09T306 U U -DRX300M-2-09 ● 30 142 83 60 43 +0.8 -DRX310M-2-09 ● 31 144 85 62 +0.6 ·When offset drilling, reduce feed rate to 0.08mm/rev or less. Recommended Cutting Conditions K48 ·Ref. to page K49 for Adjustable Sleeve (SHE type). Trouble shooting K47  : Std. Item K40
