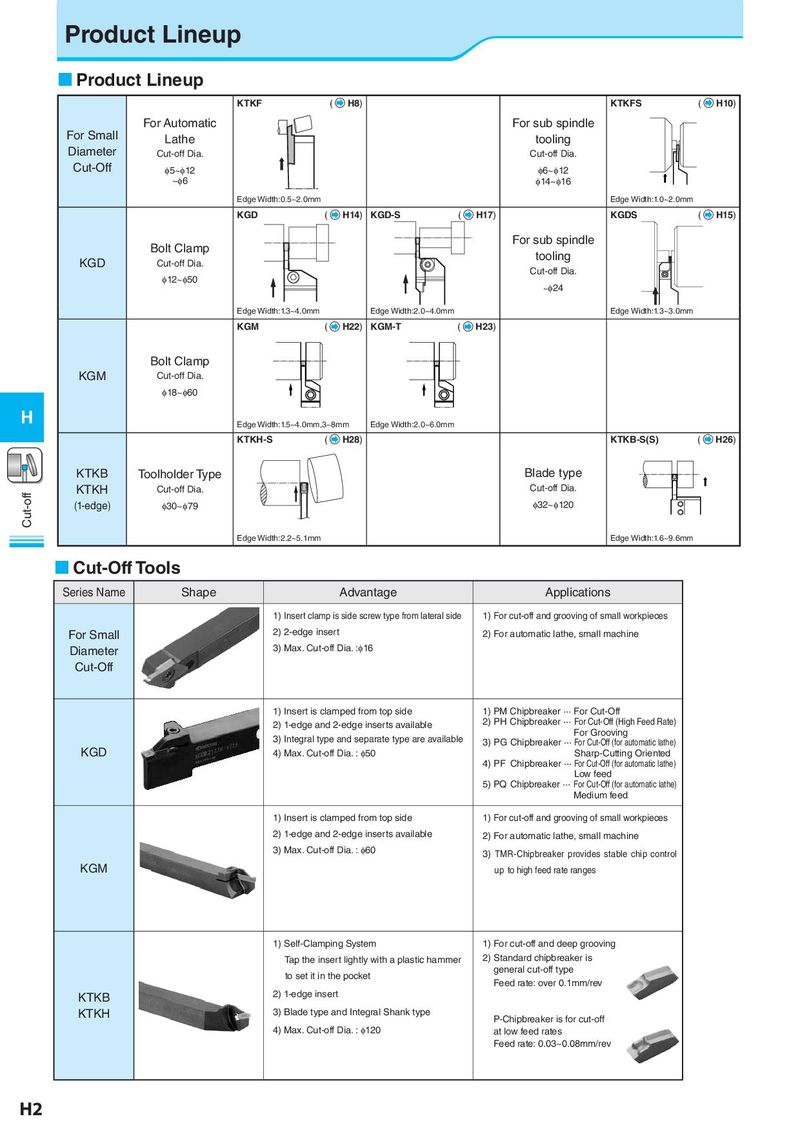

Product Lineup  Product Lineup KTKF ( H8) KTKFS ( H10) For Automatic For sub spindle For Small Lathe tooling Diameter Cut-off Dia. Cut-off Dia. Cut-Off φ5~φ12 φ6~φ12 ~φ6 φ14~φ16 Edge Width:0.5~2.0mm Edge Width:1.0~2.0mm KGD ( H14) KGD-S ( H17) KGDS ( H15) Bolt Clamp For sub spindle KGD Cut-off Dia. tooling Cut-off Dia. φ12~φ50 ~φ24 Edge Width:1.3~4.0mm Edge Width:2.0~4.0mm Edge Width:1.3~3.0mm KGM ( H22) KGM-T ( H23) Bolt Clamp KGM Cut-off Dia. φ18~φ60 H Edge Width:1.5~4.0mm,3~8mm Edge Width:2.0~6.0mm KTKH-S ( H28) KTKB-S(S) ( H26) KTKB Toolholder Type Blade type Cut-off KTKH Cut-off Dia. Cut-off Dia. (1-edge) φ30~φ79 φ32~φ120 Edge Width:2.2~5.1mm Edge Width:1.6~9.6mm  Cut-Off Tools Series Name Shape Advantage Applications 1) Insert clamp is side screw type from lateral side 1) For cut-off and grooving of small workpieces For Small 2) 2-edge insert 2) For automatic lathe, small machine Diameter 3) Max. Cut-off Dia. :φ16 Cut-Off 1) Insert is clamped from top side 1) PM Chipbreaker ··· For Cut-Off 2) 1-edge and 2-edge inserts available 2) PH Chipbreaker ···For Cut-Off (High Feed Rate) 3) Integral type and separate type are available For Grooving 3) PG Chipbreaker ···For Cut-Off (for automatic lathe) KGD 4) Max. Cut-off Dia. : φ50 Sharp-Cutting Oriented 4) PF Chipbreaker ···For Cut-Off (for automatic lathe) Low feed 5) PQ Chipbreaker ···For Cut-Off (for automatic lathe) Medium feed 1) Insert is clamped from top side 1) For cut-off and grooving of small workpieces 2) 1-edge and 2-edge inserts available 2) For automatic lathe, small machine 3) Max. Cut-off Dia. : φ60 3)TMR-Chipbreaker provides stable chip control KGM up to high feed rate ranges 1)Self-Clamping System 1) For cut-off and deep grooving Tap the insert lightly with a plastic hammer 2)Standard chipbreaker is to set it in the pocket general cut-off type Feed rate: over 0.1mm/rev KTKB 2) 1-edge insert KTKH 3) Blade type and Integral Shank type P-Chipbreaker is for cut-off 4) Max. Cut-off Dia. : φ120 at low feed rates Feed rate: 0.03~0.08mm/rev H2
