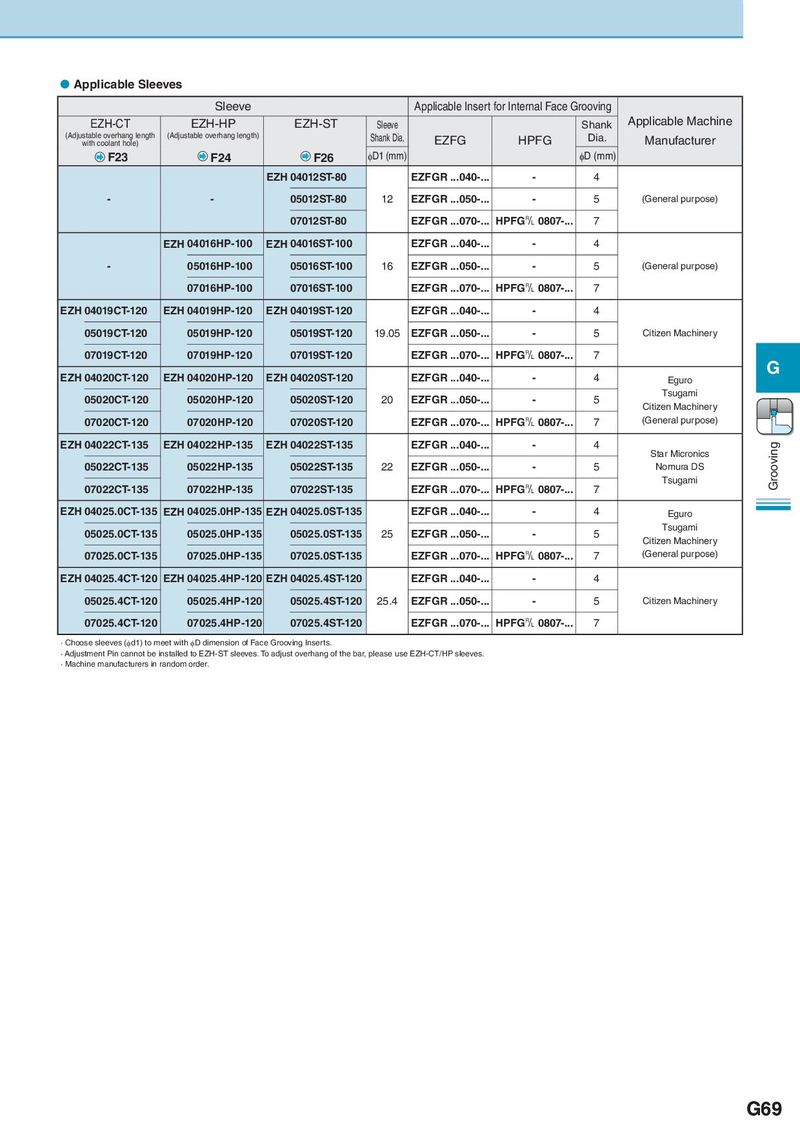

 Applicable Sleeves Sleeve Applicable Insert for Internal Face Grooving EZH-CT EZH-HP EZH-ST Sleeve Shank Applicable Machine (Adjustable overhang length (Adjustable overhang length) Shank Dia. EZFG HPFG Dia. Manufacturer with coolant hole) F23 F24 F26 φD1 (mm) φD (mm) EZH 04012ST-80 EZFGR ...040-... - 4 - - 05012ST-80 12 EZFGR ...050-... - 5 (General purpose) 07012ST-80 EZFGR ...070-... HPFG& 0807-... 7 EZH 04016HP-100 EZH 04016ST-100 EZFGR ...040-... - 4 - 05016HP-100 05016ST-100 16 EZFGR ...050-... - 5 (General purpose) 07016HP-100 07016ST-100 EZFGR ...070-... HPFG& 0807-... 7 EZH 04019CT-120 EZH 04019HP-120 EZH 04019ST-120 EZFGR ...040-... - 4 05019CT-120 05019HP-120 05019ST-120 19.05 EZFGR ...050-... - 5 Citizen Machinery 07019CT-120 07019HP-120 07019ST-120 EZFGR ...070-... HPFG& 0807-... 7 EZH 04020CT-120 EZH 04020HP-120 EZH 04020ST-120 EZFGR ...040-... - 4 Eguro G 05020CT-120 05020HP-120 05020ST-120 20 EZFGR ...050-... - 5 Tsugami Citizen Machinery 07020CT-120 07020HP-120 07020ST-120 EZFGR ...070-... HPFG& 0807-... 7 (General purpose) EZH 04022CT-135 EZH 04022HP-135 EZH 04022ST-135 EZFGR ...040-... - 4 Star Micronics Grooving 05022CT-135 05022HP-135 05022ST-135 22 EZFGR ...050-... - 5 Nomura DS 07022CT-135 07022HP-135 07022ST-135 EZFGR ...070-... HPFG& 0807-... 7 Tsugami EZH 04025.0CT-135 EZH 04025.0HP-135 EZH 04025.0ST-135 EZFGR ...040-... - 4 Eguro 05025.0CT-135 05025.0HP-135 05025.0ST-135 25 EZFGR ...050-... - 5 Tsugami Citizen Machinery 07025.0CT-135 07025.0HP-135 07025.0ST-135 EZFGR ...070-... HPFG& 0807-... 7 (General purpose) EZH 04025.4CT-120 EZH 04025.4HP-120 EZH 04025.4ST-120 EZFGR ...040-... - 4 05025.4CT-120 05025.4HP-120 05025.4ST-120 25.4 EZFGR ...050-... - 5 Citizen Machinery 07025.4CT-120 07025.4HP-120 07025.4ST-120 EZFGR ...070-... HPFG& 0807-... 7 · Choose sleeves (φd1) to meet with φD dimension of Face Grooving Inserts. · Adjustment Pin cannot be installed to EZH-ST sleeves. To adjust overhang of the bar, please use EZH-CT/HP sleeves. · Machine manufacturers in random order. G69
