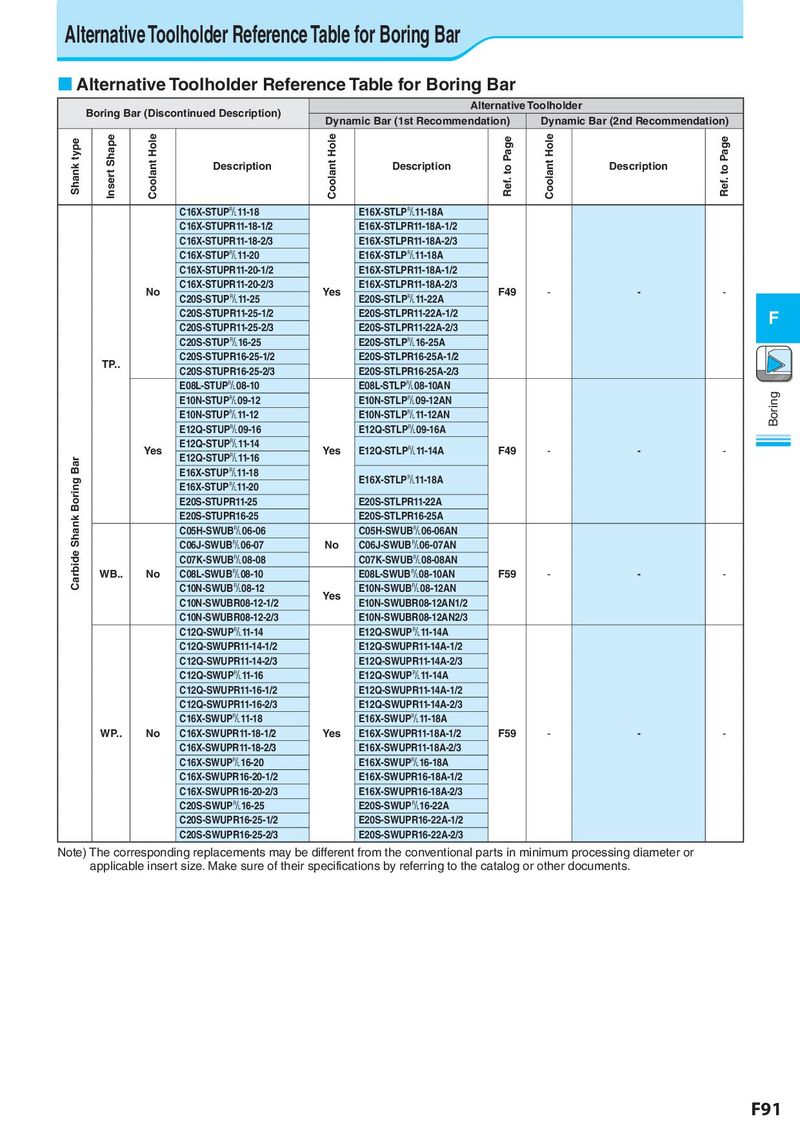

Alternative Toolholder Reference Table for Boring Bar  Alternative Toolholder Reference Table for Boring Bar Boring Bar (Discontinued Description) Alternative Toolholder Dynamic Bar (1st Recommendation) Dynamic Bar (2nd Recommendation) Shank type Insert Shape Coolant Hole Description Coolant Hole Description Ref. to Page Coolant Hole Description Ref. to Page C16X-STUP&11-18 E16X-STLP&11-18A C16X-STUPR11-18-1/2 E16X-STLPR11-18A-1/2 C16X-STUPR11-18-2/3 E16X-STLPR11-18A-2/3 C16X-STUP&11-20 E16X-STLP&11-18A C16X-STUPR11-20-1/2 E16X-STLPR11-18A-1/2 No C16X-STUPR11-20-2/3 Yes E16X-STLPR11-18A-2/3 F49 - - - C20S-STUP&11-25 E20S-STLP&11-22A C20S-STUPR11-25-1/2 E20S-STLPR11-22A-1/2 F C20S-STUPR11-25-2/3 E20S-STLPR11-22A-2/3 C20S-STUP&16-25 E20S-STLP&16-25A TP.. C20S-STUPR16-25-1/2 E20S-STLPR16-25A-1/2 C20S-STUPR16-25-2/3 E20S-STLPR16-25A-2/3 E08L-STUP&08-10 E08L-STLP&08-10AN E10N-STUP&09-12 E10N-STLP&09-12AN Boring E10N-STUP&11-12 E10N-STLP&11-12AN E12Q-STUP&09-16 E12Q-STLP&09-16A Yes E12Q-STUP&11-14 Yes E12Q-STLP&11-14A F49 - - - Carbide Shank Boring Bar E12Q-STUP&11-16 E16X-STUP&11-18 E16X-STLP&11-18A E16X-STUP&11-20 E20S-STUPR11-25 E20S-STLPR11-22A E20S-STUPR16-25 E20S-STLPR16-25A C05H-SWUB&06-06 C05H-SWUB&06-06AN C06J-SWUB&06-07 No C06J-SWUB&06-07AN C07K-SWUB&08-08 C07K-SWUB&08-08AN WB.. No C08L-SWUB&08-10 E08L-SWUB&08-10AN F59 - - - C10N-SWUB&08-12 Yes E10N-SWUB&08-12AN C10N-SWUBR08-12-1/2 E10N-SWUBR08-12AN1/2 C10N-SWUBR08-12-2/3 E10N-SWUBR08-12AN2/3 C12Q-SWUP&11-14 E12Q-SWUP&11-14A C12Q-SWUPR11-14-1/2 E12Q-SWUPR11-14A-1/2 C12Q-SWUPR11-14-2/3 E12Q-SWUPR11-14A-2/3 C12Q-SWUP&11-16 E12Q-SWUP&11-14A C12Q-SWUPR11-16-1/2 E12Q-SWUPR11-14A-1/2 C12Q-SWUPR11-16-2/3 E12Q-SWUPR11-14A-2/3 C16X-SWUP&11-18 E16X-SWUP&11-18A WP.. No C16X-SWUPR11-18-1/2 Yes E16X-SWUPR11-18A-1/2 F59 - - - C16X-SWUPR11-18-2/3 E16X-SWUPR11-18A-2/3 C16X-SWUP&16-20 E16X-SWUP&16-18A C16X-SWUPR16-20-1/2 E16X-SWUPR16-18A-1/2 C16X-SWUPR16-20-2/3 E16X-SWUPR16-18A-2/3 C20S-SWUP&16-25 E20S-SWUP&16-22A C20S-SWUPR16-25-1/2 E20S-SWUPR16-22A-1/2 C20S-SWUPR16-25-2/3 E20S-SWUPR16-22A-2/3 Note)The corresponding replacements may be different from the conventional parts in minimum processing diameter or applicable insert size. Make sure of their specifications by referring to the catalog or other documents. F91
