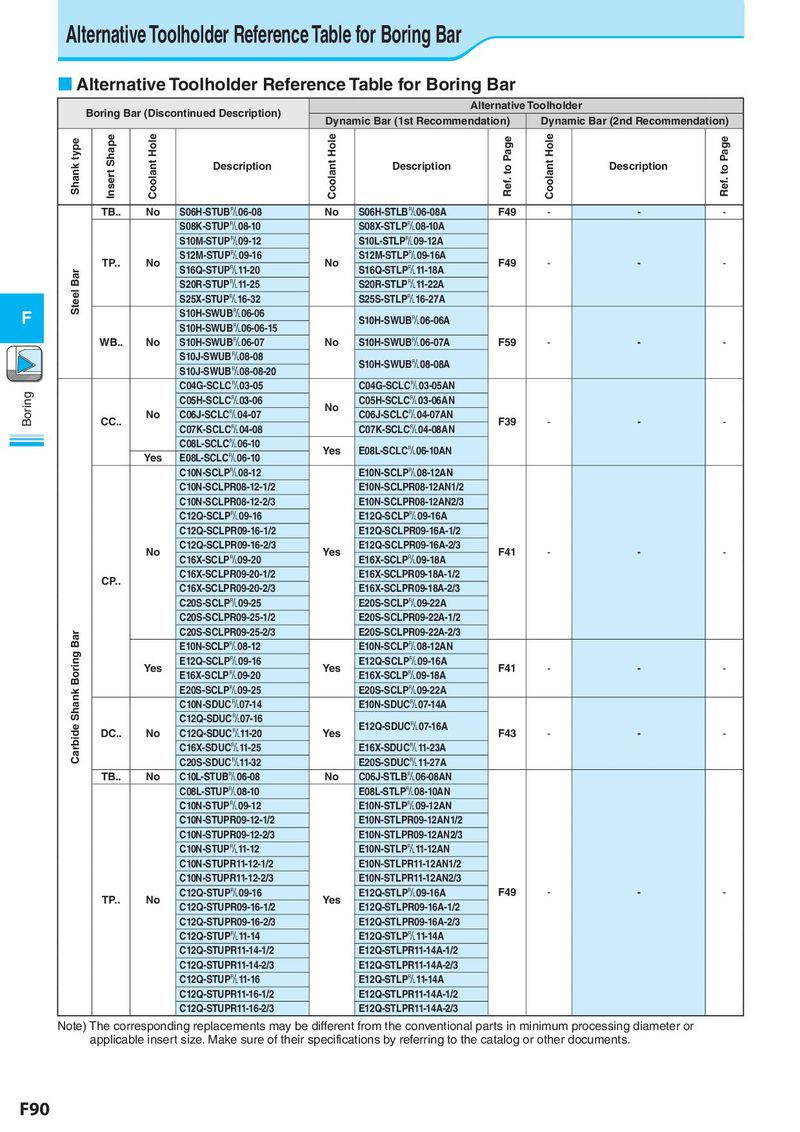

Alternative Toolholder Reference Table for Boring Bar  Alternative Toolholder Reference Table for Boring Bar Boring Bar (Discontinued Description) Alternative Toolholder Dynamic Bar (1st Recommendation) Dynamic Bar (2nd Recommendation) Shank type Insert Shape Coolant Hole Description Coolant Hole Description Ref. to Page Coolant Hole Description Ref. to Page TB.. No S06H-STUB&06-08 No S06H-STLB&06-08A F49 - - - S08K-STUP&08-10 S08X-STLP&08-10A S10M-STUP&09-12 S10L-STLP&09-12A TP.. No S12M-STUP&09-16 No S12M-STLP&09-16A F49 - - - Steel Bar S16Q-STUP&11-20 S16Q-STLP&11-18A S20R-STUP&11-25 S20R-STLP&11-22A S25X-STUP&16-32 S25S-STLP&16-27A F S10H-SWUB&06-06 S10H-SWUB&06-06A S10H-SWUB&06-06-15 WB.. No S10H-SWUB&06-07 No S10H-SWUB&06-07A F59 - - - S10J-SWUB&08-08 S10H-SWUB&08-08A S10J-SWUB&08-08-20 C04G-SCLC&03-05 C04G-SCLC&03-05AN Boring C05H-SCLC&03-06 No C05H-SCLC&03-06AN CC.. No C06J-SCLC&04-07 C06J-SCLC&04-07AN F39 - - - C07K-SCLC&04-08 C07K-SCLC&04-08AN C08L-SCLC&06-10 Yes E08L-SCLC&06-10AN Yes E08L-SCLC&06-10 C10N-SCLP&08-12 E10N-SCLP&08-12AN C10N-SCLPR08-12-1/2 E10N-SCLPR08-12AN1/2 C10N-SCLPR08-12-2/3 E10N-SCLPR08-12AN2/3 C12Q-SCLP&09-16 E12Q-SCLP&09-16A C12Q-SCLPR09-16-1/2 E12Q-SCLPR09-16A-1/2 No C12Q-SCLPR09-16-2/3 Yes E12Q-SCLPR09-16A-2/3 F41 - - - C16X-SCLP&09-20 E16X-SCLP&09-18A CP.. C16X-SCLPR09-20-1/2 E16X-SCLPR09-18A-1/2 C16X-SCLPR09-20-2/3 E16X-SCLPR09-18A-2/3 C20S-SCLP&09-25 E20S-SCLP&09-22A C20S-SCLPR09-25-1/2 E20S-SCLPR09-22A-1/2 Carbide Shank Boring Bar C20S-SCLPR09-25-2/3 E20S-SCLPR09-22A-2/3 E10N-SCLP&08-12 E10N-SCLP&08-12AN Yes E12Q-SCLP&09-16 Yes E12Q-SCLP&09-16A F41 - - - E16X-SCLP&09-20 E16X-SCLP&09-18A E20S-SCLP&09-25 E20S-SCLP&09-22A C10N-SDUC&07-14 E10N-SDUC&07-14A C12Q-SDUC&07-16 E12Q-SDUC&07-16A DC.. No C12Q-SDUC&11-20 Yes F43 - - - C16X-SDUC&11-25 E16X-SDUC&11-23A C20S-SDUC&11-32 E20S-SDUC&11-27A TB.. No C10L-STUB&06-08 No C06J-STLB&06-08AN C08L-STUP&08-10 E08L-STLP&08-10AN C10N-STUP&09-12 E10N-STLP&09-12AN C10N-STUPR09-12-1/2 E10N-STLPR09-12AN1/2 C10N-STUPR09-12-2/3 E10N-STLPR09-12AN2/3 C10N-STUP&11-12 E10N-STLP&11-12AN C10N-STUPR11-12-1/2 E10N-STLPR11-12AN1/2 C10N-STUPR11-12-2/3 E10N-STLPR11-12AN2/3 TP.. No C12Q-STUP&09-16 Yes E12Q-STLP&09-16A F49 - - - C12Q-STUPR09-16-1/2 E12Q-STLPR09-16A-1/2 C12Q-STUPR09-16-2/3 E12Q-STLPR09-16A-2/3 C12Q-STUP&11-14 E12Q-STLP&11-14A C12Q-STUPR11-14-1/2 E12Q-STLPR11-14A-1/2 C12Q-STUPR11-14-2/3 E12Q-STLPR11-14A-2/3 C12Q-STUP&11-16 E12Q-STLP&11-14A C12Q-STUPR11-16-1/2 E12Q-STLPR11-14A-1/2 C12Q-STUPR11-16-2/3 E12Q-STLPR11-14A-2/3 Note)The corresponding replacements may be different from the conventional parts in minimum processing diameter or applicable insert size. Make sure of their specifications by referring to the catalog or other documents. F90
