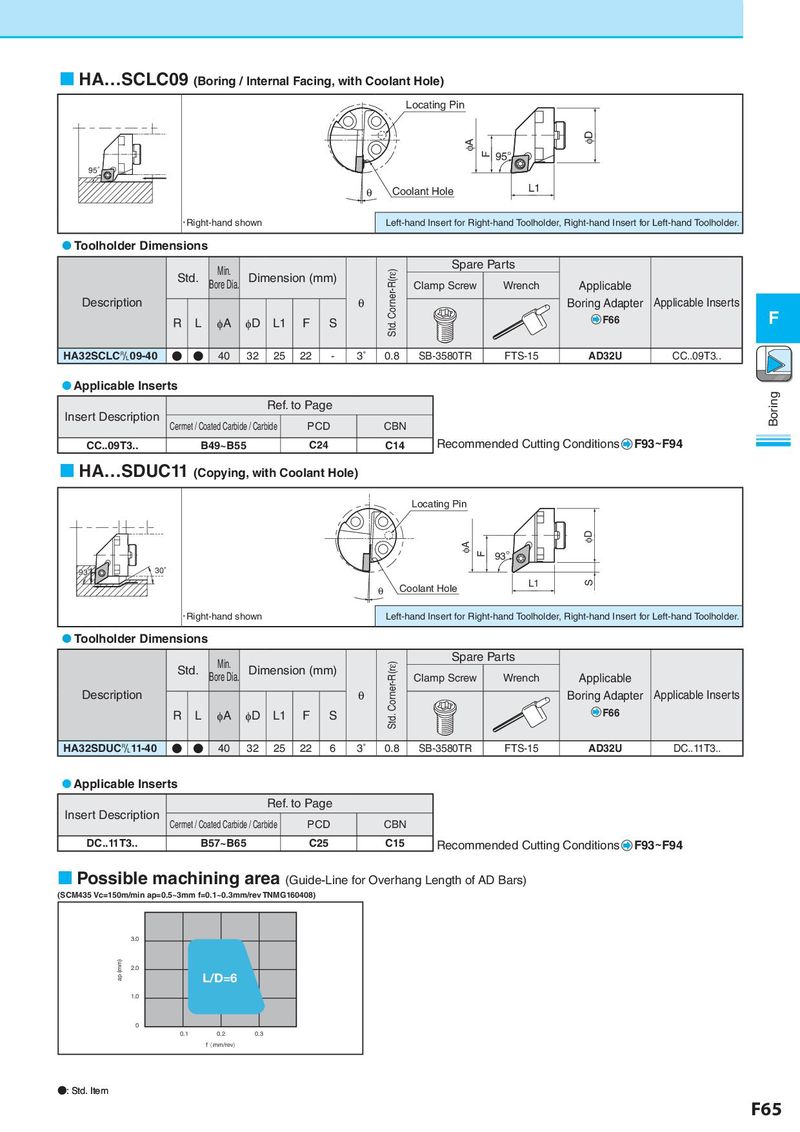

Основной каталог Kyocera 2016-2017 - страница 327

 HA…SCLC09 (Boring / Internal Facing, with Coolant Hole) Locating Pin φA φD F 95° 95ﾟ θ Coolant Hole L1 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dia. Dimension (mm) Clamp Screw Wrench Applicable Description θ Boring Adapter Applicable Inserts R L φA φD L1 F S F66 F HA32SCLC&09-40 ● ● 40 32 25 22 - 3˚ 0.8 SB-3580TR FTS-15 AD32U CC..09T3.. Applicable Inserts Boring Ref. to Page Insert Description Cermet / Coated Carbide / Carbide PCD CBN CC..09T3.. B49~B55 C24 C14 Recommended Cutting Conditions F93~F94  HA…SDUC11 (Copying, with Coolant Hole) Locating Pin φA φD F 93° 93ﾟ 30ﾟ Coolant Hole L1 S θ • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dia. Dimension (mm) Clamp Screw Wrench Applicable Description θ Boring Adapter Applicable Inserts R L φA φD L1 F S F66 HA32SDUC&11-40 ● ● 40 32 25 22 6 3˚ 0.8 SB-3580TR FTS-15 AD32U DC..11T3.. Applicable Inserts Ref. to Page Insert Description Cermet / Coated Carbide / Carbide PCD CBN DC..11T3.. B57~B65 C25 C15 Recommended Cutting Conditions F93~F94  Possible machining area (Guide-Line for Overhang Length of AD Bars) (SCM435 Vc=150m/min ap=0.5~3mm f=0.1~0.3mm/rev TNMG160408) 3.0 ap (mm) 2.0 L/D=6 1.0 0 0.1 0.2 0.3 f（mm/rev） ●: Std. Item F65
