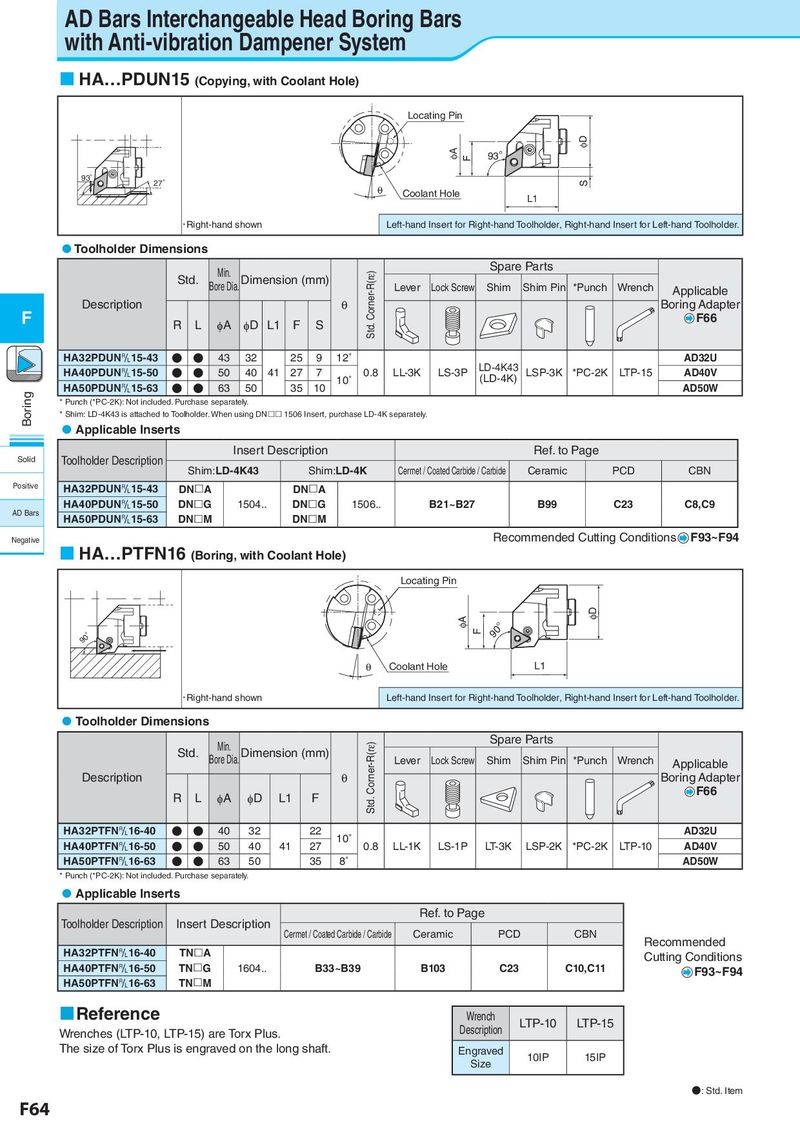

AD Bars Interchangeable Head Boring Bars with Anti-vibration Dampener System  HA…PDUN15 (Copying, with Coolant Hole) Locating Pin φD φA F 93° 93ﾟ 27ﾟ S θ Coolant Hole L1 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dia. Dimension (mm) Lever Lock Screw Shim Shim Pin *Punch Wrench Applicable Description θ Boring Adapter F R L φA φD L1 F S F66 HA32PDUN&15-43 ● ● 43 32 25 9 12˚ AD32U HA40PDUN&15-50 ● ● 50 40 41 27 7 0.8 LL-3K LS-3P LD-4K43 LSP-3K *PC-2K LTP-15 AD40V ● ● 10˚ (LD-4K) Boring HA50PDUN&15-63 63 50 35 10 AD50W * Punch (*PC-2K): Not included. Purchase separately. * Shim: LD-4K43 is attached to Toolholder. When using DN 1506 Insert, purchase LD-4K separately.  Applicable Inserts Toolholder Description Insert Description Ref. to Page Solid Shim:LD-4K43 Shim:LD-4K Cermet / Coated Carbide / Carbide Ceramic PCD CBN Positive HA32PDUN&15-43 DNA DNA HA40PDUN&15-50 DNG 1504.. DNG 1506.. B21~B27 B99 C23 C8,C9 AD Bars HA50PDUN&15-63 DNM DNM Negative Recommended Cutting Conditions F93~F94  HA…PTFN16 (Boring, with Coolant Hole) Locating Pin φA φD F 90° 90ﾟ θ Coolant Hole L1 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dia. Dimension (mm) Lever Lock Screw Shim Shim Pin *Punch Wrench Applicable Description θ Boring Adapter R L φA φD L1 F F66 HA32PTFN&16-40 ● ● 40 32 22 10˚ AD32U HA40PTFN&16-50 ● ● 50 40 41 27 0.8 LL-1K LS-1P LT-3K LSP-2K *PC-2K LTP-10 AD40V HA50PTFN&16-63 ● ● 63 50 35 8˚ AD50W * Punch (*PC-2K): Not included. Purchase separately.  Applicable Inserts Ref. to Page Toolholder Description Insert Description Cermet / Coated Carbide / Carbide Ceramic PCD CBN Recommended HA32PTFN&16-40 TNA Cutting Conditions HA40PTFN&16-50 TNG 1604.. B33~B39 B103 C23 C10,C11 F93~F94 HA50PTFN&16-63 TNM  Reference Wrench LTP-10 LTP-15 Wrenches (LTP-10, LTP-15) are Torx Plus. Description The size of Torx Plus is engraved on the long shaft. Engraved 10IP 15IP Size ●: Std. Item F64
