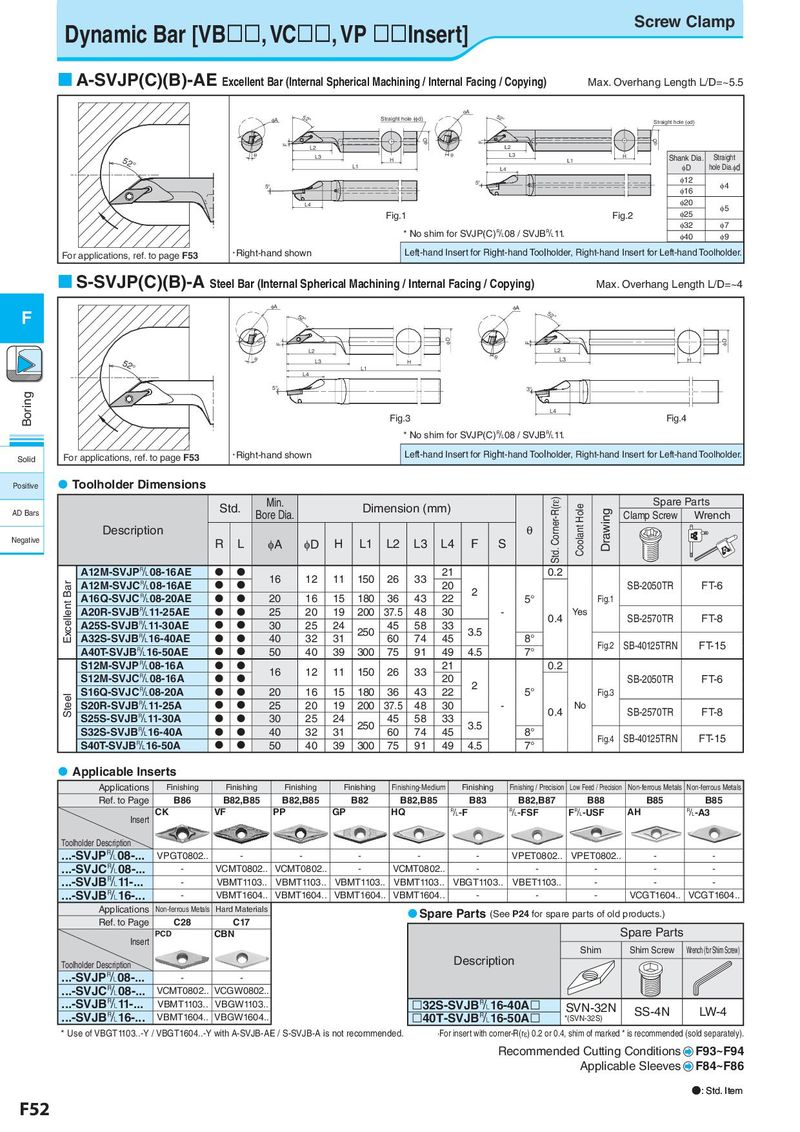

Основной каталог Kyocera 2016-2017 - страница 314

Dynamic Bar [VB, VC, VP Insert] Screw Clamp  A-SVJP(C)(B)-AE Excellent Bar (Internal Spherical Machining / Internal Facing / Copying) Max. Overhang Length L/D=~5.5 A-SVJB-AE型（A32S-SVJBRL16-40AE）　F36　fig2 A-SVJB-AE型（A20R-SVJBRL11-25AE）　F36　fig1 φA 52° φA 52° Straight hole (φd) Straight hole (φd) F φD F φD L2 L2 52° θ L3 θ L3 H Shank Dia. Straight H L1 L1 L4 φD hole Dia.φd 5° φ12 φ4 5° φ16 L4 φ20 φ5 Fig.1 Fig.2 φ25 φ32 φ7 * No shim for SVJP(C)&08 / SVJB&11. φ40 φ9 For applications, ref. to page F53 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  SS--SSVJVB-AJ型P　(FC36　)(B)-A Steel Bar (Internal Spherical Machining / Internal Facing / Copying) Max. Overhang Length L/D=~4 S20R-SVJB-A型（S20R-SVJBL11-25A）　F36　fig3 S-SVJB-A型（S32S-SVJBL16-40A）　F36　fig4 φA φA F 52° 52° F φD F φD L2 L2 52° θ L3 H θ L3 H L1 L4 5° 3° Boring L4 Fig.3 Fig.4 * No shim for SVJP(C)&08 / SVJB&11. Solid For applications, ref. to page F53 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Positive  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Coolant Hole Spare Parts AD Bars Bore Dia. Drawing Clamp Screw Wrench Description θ Negative R L φA φD H L1 L2 L3 L4 F S A12M-SVJP&08-16AE   16 12 11 150 26 33 21 0.2 Excellent Bar A12M-SVJC&08-16AE   20 2 SB-2050TR FT-6 A16Q-SVJC&08-20AE   20 16 15 180 36 43 22 5° Fig.1 A20R-SVJB&11-25AE   25 20 19 200 37.5 48 30 - 0.4 Yes SB-2570TR FT-8 A25S-SVJB&11-30AE   30 25 24 250 45 58 33 3.5 A32S-SVJB&16-40AE   40 32 31 60 74 45 8° Fig.2 SB-40125TRN FT-15 A40T-SVJB&16-50AE   50 40 39 300 75 91 49 4.5 7° S12M-SVJP&08-16A   16 12 11 150 26 33 21 0.2 S12M-SVJC&08-16A   20 2 SB-2050TR FT-6 Steel S16Q-SVJC&08-20A   20 16 15 180 36 43 22 5° Fig.3 S20R-SVJB&11-25A   25 20 19 200 37.5 48 30 - 0.4 No SB-2570TR FT-8 S25S-SVJB&11-30A   30 25 24 250 45 58 33 3.5 S32S-SVJB&16-40A   40 32 31 60 74 45 8° Fig.4 SB-40125TRN FT-15 S40T-SVJB&16-50A   50 40 39 300 75 91 49 4.5 7°  Applicable Inserts Applications Finishing Finishing Finishing Finishing Finishing-Medium Finishing Finishing / Precision Low Feed / Precision Non-ferrous Metals Non-ferrous Metals Ref. to Page B86 B82,B85 B82,B85 B82 B82,B85 B83 B82,B87 B88 B85 B85 Insert CK VF PP GP HQ &-F &-FSF F&-USF AH &-A3 Toolholder Description ...-SVJP&08-... VPGT0802.. - - - - - VPET0802.. VPET0802.. - - ...-SVJC&08-... - VCMT0802.. VCMT0802.. - VCMT0802.. - - - - - ...-SVJB&11-... - VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. - - - ...-SVJB&16-... - VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. - - - VCGT1604.. VCGT1604.. Applications Non-ferrous Metals Hard Materials  Spare Parts (See P24 for spare parts of old products.) Ref. to Page C28 C17 Insert PCD CBN Spare Parts Shim Shim Screw Wrench (for Shim Screw) Toolholder Description Description ...-SVJP&08-... - - ...-SVJC&08-... VCMT0802.. VCGW0802.. ...-SVJB&11-... VBMT1103.. VBGW1103.. 32S-SVJB&16-40A SVN-32N SS-4N LW-4 ...-SVJB&16-... VBMT1604.. VBGW1604.. 40T-SVJB&16-50A *(SVN-32S) * Use of VBGT1103..-Y / VBGT1604..-Y with A-SVJB-AE / S-SVJB-A is not recommended. ·For insert with corner-R(re) 0.2 or 0.4, shim of marked * is recommended (sold separately).  Recommended Cutting Conditions F93~F94  Applicable Sleeves F84~F86 ●: Std. Item F52
