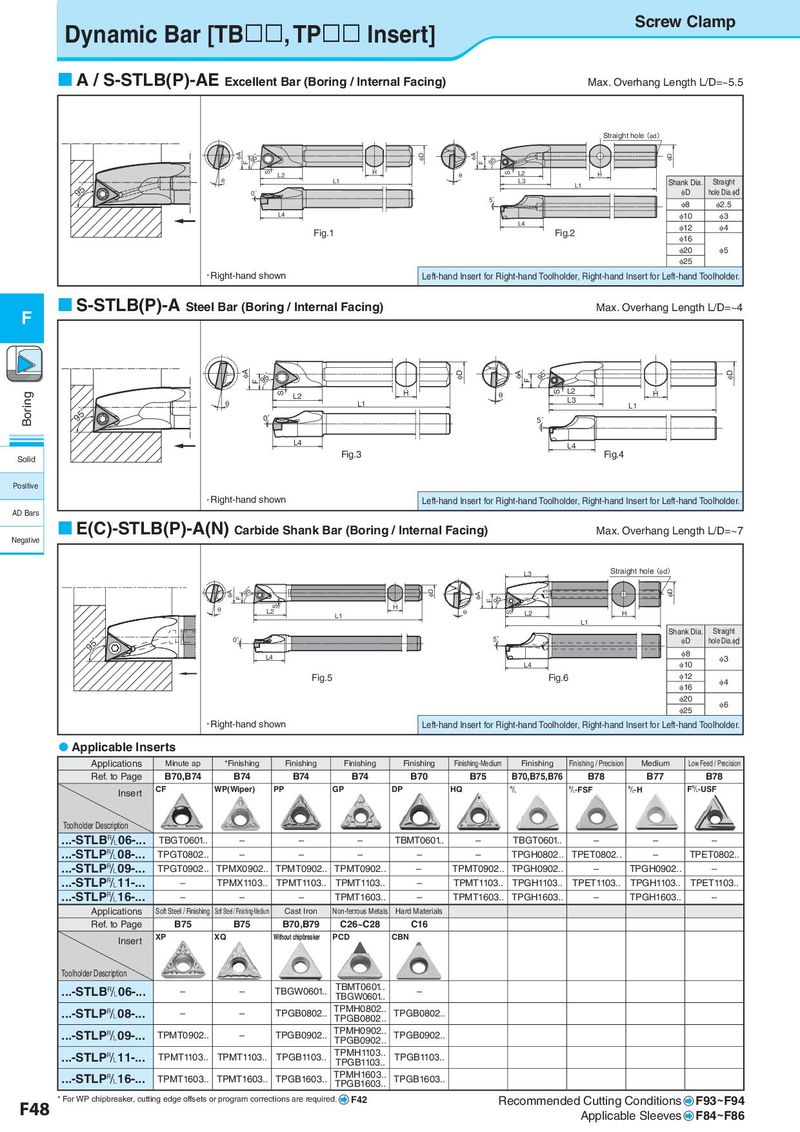

Dynamic Bar [TB, TP Insert] Screw Clamp  A / S-STLB(P)-AE Excellent Bar (Boring / Internal Facing) Max. Overhang Length L/D=~5.5 Straight hole（φd） φA 95ﾟ φD φA 95ﾟ φD F F S L2 H θ S L2 H 95ﾟ θ L1 L3 L1 Shank Dia. Straight 0˚ φD hole Dia.φd 5˚ φ8 φ2.5 L4 φ10 φ3 L4 φ12 φ4 Fig.1 Fig.2 φ16 φ20 φ5 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. F  S-STLB(P)-A Steel Bar (Boring / Internal Facing) Max. Overhang Length L/D=~4 φA 95ﾟ φD φA 95ﾟ φD F F Boring S L2 H θ S L2 H θ L1 L3 L1 95ﾟ 0˚ 5˚ L4 L4 Solid Fig.3 Fig.4 Positive • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. AD Bars  E(C)-STLB(P)-A(N) Carbide Shank Bar (Boring / Internal Facing) Max. Overhang Length L/D=~7 Negative E-STLB-A型（E16X-STLPR11-18A） F32　fig6 C-STLB-A型（C06J-STLBR06-08A） F32　fig5 L3 Straight hole（φd） φA F 95ﾟ φD φA 95ﾟ φD F θ S H L2 L1 θ S L2 H L1 Shank Dia. Straight 95ﾟ 0° 5° φD hole Dia.φd L4 φ8 φ3 L4 φ10 Fig.5 Fig.6 φ12 φ4 φ16 φ20 φ6 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Applicable Inserts Applications Minute ap *Finishing Finishing Finishing Finishing Finishing-Medium Finishing Finishing / Precision Medium Low Feed / Precision Ref. to Page B70,B74 B74 B74 B74 B70 B75 B70,B75,B76 B78 B77 B78 Insert CF WP(Wiper) PP GP DP HQ & &-FSF &-H F&-USF Toolholder Description ...-STLB&06-... TBGT0601.. – – – TBMT0601.. – TBGT0601.. – – – ...-STLP&08-... TPGT0802.. – – – – – TPGH0802.. TPET0802.. – TPET0802.. ...-STLP&09-... TPGT0902.. TPMX0902.. TPMT0902.. TPMT0902.. – TPMT0902.. TPGH0902.. – TPGH0902.. – ...-STLP&11-... – TPMX1103.. TPMT1103.. TPMT1103.. – TPMT1103.. TPGH1103.. TPET1103.. TPGH1103.. TPET1103.. ...-STLP&16-... – – – TPMT1603.. – TPMT1603.. TPGH1603.. – TPGH1603.. – Applications Soft Steel / Finishing Soft Steel / Finishing-Medium Cast Iron Non-ferrous Metals Hard Materials Ref. to Page B75 B75 B70,B79 C26~C28 C16 Insert XP XQ Without chipbreaker PCD CBN Toolholder Description ...-STLB&06-... – – TBGW0601.. TBMT0601.. – TBGW0601.. ...-STLP&08-... – – TPGB0802.. TPMH0802.. TPGB0802.. TPGB0802.. ...-STLP&09-... TPMT0902.. – TPGB0902.. TPMH0902.. TPGB0902.. TPGB0902.. ...-STLP&11-... TPMT1103.. TPMT1103.. TPGB1103.. TPMH1103.. TPGB1103.. TPGB1103.. ...-STLP&16-... TPMT1603.. TPMT1603.. TPGB1603.. TPMH1603.. TPGB1603.. TPGB1603.. F48 * For WP chipbreaker, cutting edge offsets or program corrections are required. F42 Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86
