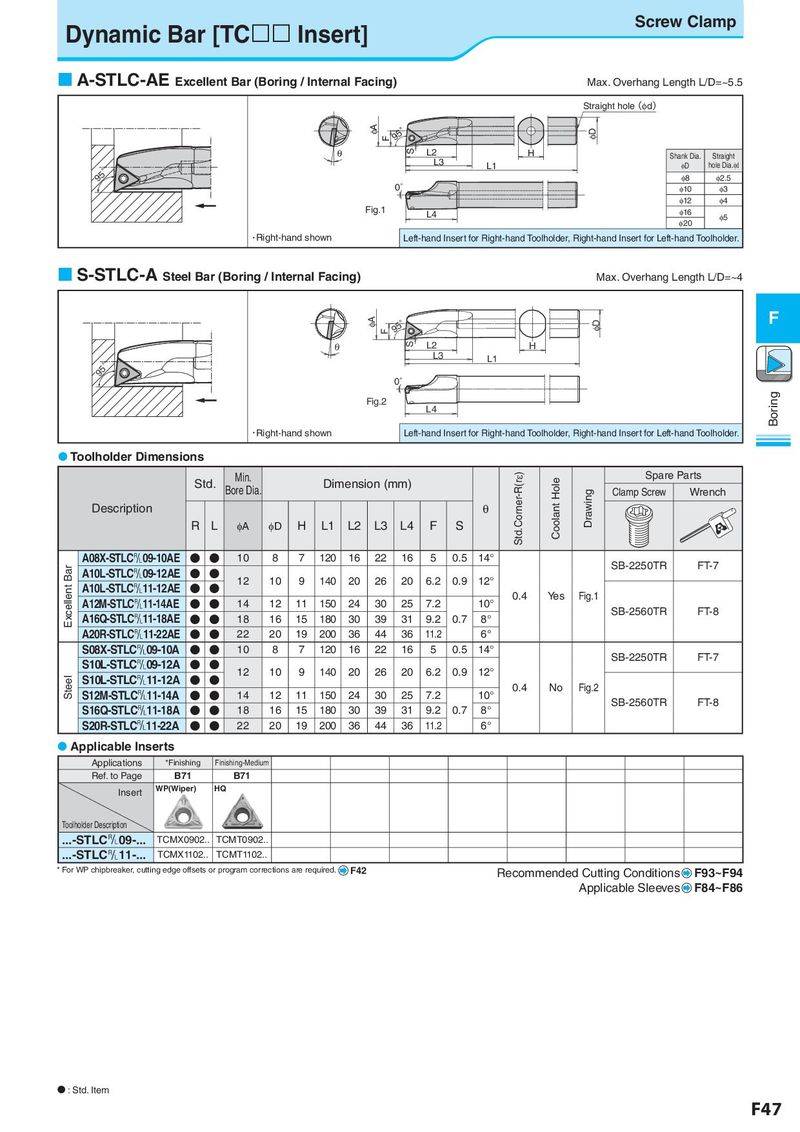

Dynamic Bar [TC Insert] Screw Clamp  A-STLC-AE Excellent Bar (Boring / Internal Facing) Max. Overhang Length L/D=~5.5 Straight hole（φd） φA 95ﾟ φD F θ S L2 H Shank Dia. Straight L3 L1 φD hole Dia.φd 95ﾟ φ8 φ2.5 0˚ φ10 φ3 φ12 φ4 Fig.1 L4 φ16 φ5 φ20 • Right-hand shown Left-hand Inser t for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  S-STLC-A Steel Bar (Boring / Internal Facing) Max. Overhang Length L/D=~4 φA 95ﾟ φD F F θ S L2 H L3 L1 95ﾟ 0˚ Fig.2 L4 Boring • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Std. Min. Dimension (mm) Std.Corner-R(rε) Coolant Hole Spare Parts Bore Dia. Drawing Clamp Screw Wrench Description θ R L φA φD H L1 L2 L3 L4 F S A08X-STLC&09-10AE ● ● 10 8 7 120 16 22 16 5 0.5 14° SB-2250TR FT-7 Excellent Bar A10L-STLC&09-12AE ● ● 12 10 9 140 20 26 20 6.2 0.9 12° A10L-STLC&11-12AE ● ● 0.4 Yes Fig.1 A12M-STLC&11-14AE ● ● 14 12 11 150 24 30 25 7.2 10° SB-2560TR FT-8 A16Q-STLC&11-18AE ● ● 18 16 15 180 30 39 31 9.2 0.7 8° A20R-STLC&11-22AE ● ● 22 20 19 200 36 44 36 11.2 6° S08X-STLC&09-10A ● ● 10 8 7 120 16 22 16 5 0.5 14° SB-2250TR FT-7 S10L-STLC&09-12A ● ● 12 10 9 140 20 26 20 6.2 0.9 12° Steel S10L-STLC&11-12A ● ● 0.4 No Fig.2 S12M-STLC&11-14A ● ● 14 12 11 150 24 30 25 7.2 10° SB-2560TR FT-8 S16Q-STLC&11-18A ● ● 18 16 15 180 30 39 31 9.2 0.7 8° S20R-STLC&11-22A ● ● 22 20 19 200 36 44 36 11.2 6°  Applicable Inserts Applications *Finishing Finishing-Medium Ref. to Page B71 B71 Insert WP(Wiper) HQ Toolholder Description ...-STLC&09-... TCMX0902.. TCMT0902.. ...-STLC&11-... TCMX1102.. TCMT1102.. * For WP chipbreaker, cutting edge offsets or program corrections are required. F42 Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86 N : Std. Item F47
