Основной каталог Kyocera 2016-2017 - страница 306

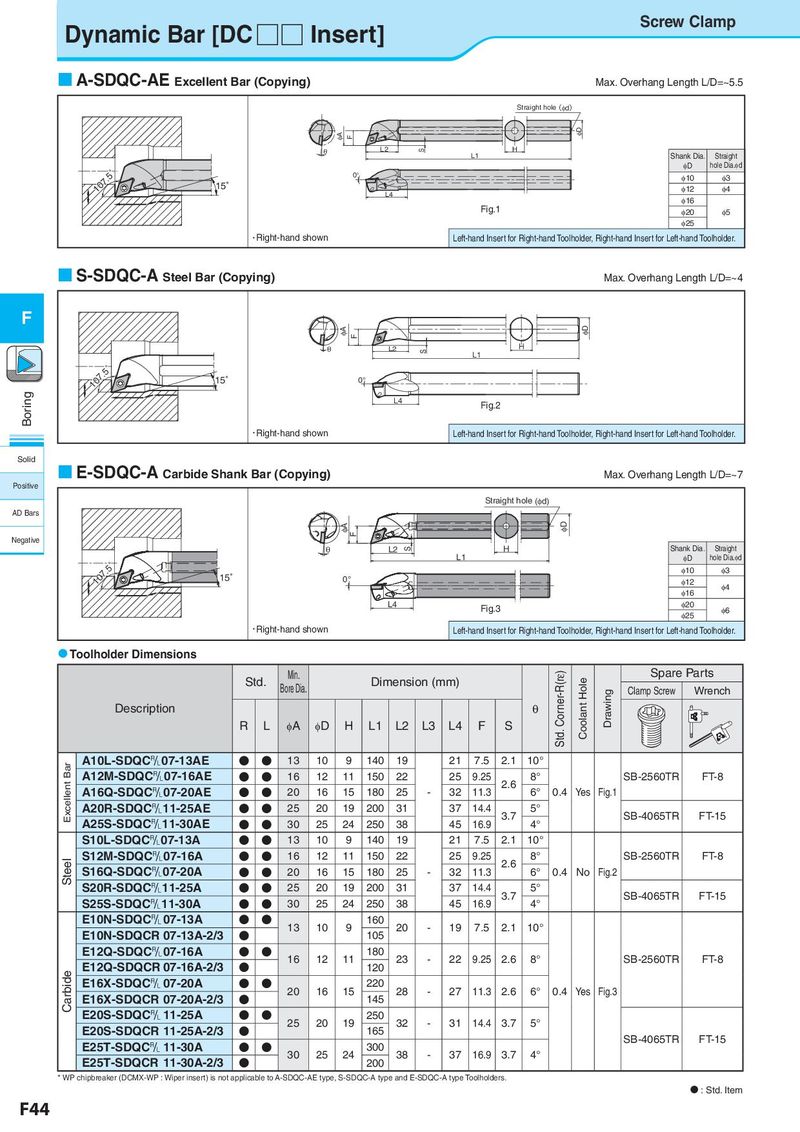

Dynamic Bar [DC □□ Insert] Screw Clamp  A-SDQC-AE Excellent Bar (Copying) Max. Overhang Length L/D=~5.5 A-SDQC-AE型 F30 Straight hole（φd） φA F φD θ L2 S H L1 Shank Dia. Straight 107.5ﾟ φD hole Dia.φd 0° φ10 φ3 15ﾟ φ12 φ4 L4 φ16 Fig.1 φ20 φ5 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  S-SDQC-A Steel Bar (Copying) Max. Overhang Length L/D=~4 S-SDQC-A型 F30 F φA φD F θ L2 S H L1 107.5ﾟ 15ﾟ 0° Boring L4 Fig.2 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Solid  E-SDQC-A Carbide Shank Bar (Copying) Max. Overhang Length L/D=~7 Positive E-SDQC-A型 F30 Straight hole (φd) AD Bars φA φD Negative F θ L2 S H Shank Dia. Straight 1107.5ﾟ L1 φD hole Dia.φd 15ﾟ φ10 φ3 0° φ12 φ16 φ4 L4 Fig.3 φ20 φ6 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Coolant Hole Spare Parts Bore Dia. Drawing Clamp Screw Wrench Description θ R L φA φD H L1 L2 L3 L4 F S Excellent Bar A10L-SDQC&07-13AE ● ● 13 10 9 140 19 21 7.5 2.1 10° A12M-SDQC&07-16AE ● ● 16 12 11 150 22 25 9.25 2.6 8° SB-2560TR FT-8 A16Q-SDQC&07-20AE ● ● 20 16 15 180 25 - 32 11.3 6° 0.4 Yes Fig.1 A20R-SDQC&11-25AE ● ● 25 20 19 200 31 37 14.4 3.7 5° SB-4065TR FT-15 A25S-SDQC&11-30AE ● ● 30 25 24 250 38 45 16.9 4° S10L-SDQC&07-13A ● ● 13 10 9 140 19 21 7.5 2.1 10° Steel S12M-SDQC&07-16A ● ● 16 12 11 150 22 25 9.25 2.6 8° SB-2560TR FT-8 S16Q-SDQC&07-20A ● ● 20 16 15 180 25 - 32 11.3 6° 0.4 No Fig.2 S20R-SDQC&11-25A ● ● 25 20 19 200 31 37 14.4 3.7 5° SB-4065TR FT-15 S25S-SDQC&11-30A ● ● 30 25 24 250 38 45 16.9 4° E10N-SDQC& 07-13A ● ● 13 10 9 160 20 - 19 7.5 2.1 10° E10N-SDQCR 07-13A-2/3 ● 105 E12Q-SDQC& 07-16A ● ● 16 12 11 180 23 - 22 9.25 2.6 8° SB-2560TR FT-8 Carbide E12Q-SDQCR 07-16A-2/3 ● 120 E16X-SDQC& 07-20A ● ● 20 16 15 220 28 - 27 11.3 2.6 6° 0.4 Yes Fig.3 E16X-SDQCR 07-20A-2/3 ● 145 E20S-SDQC& 11-25A ● ● 25 20 19 250 32 - 31 14.4 3.7 5° E20S-SDQCR 11-25A-2/3 ● 165 SB-4065TR FT-15 E25T-SDQC& 11-30A ● ● 30 25 24 300 38 - 37 16.9 3.7 4° E25T-SDQCR 11-30A-2/3 ● 200 * WP chipbreaker (DCMX-WP : Wiper insert) is not applicable to A-SDQC-AE type, S-SDQC-A type and E-SDQC-A type Toolholders. N : Std. Item F44
