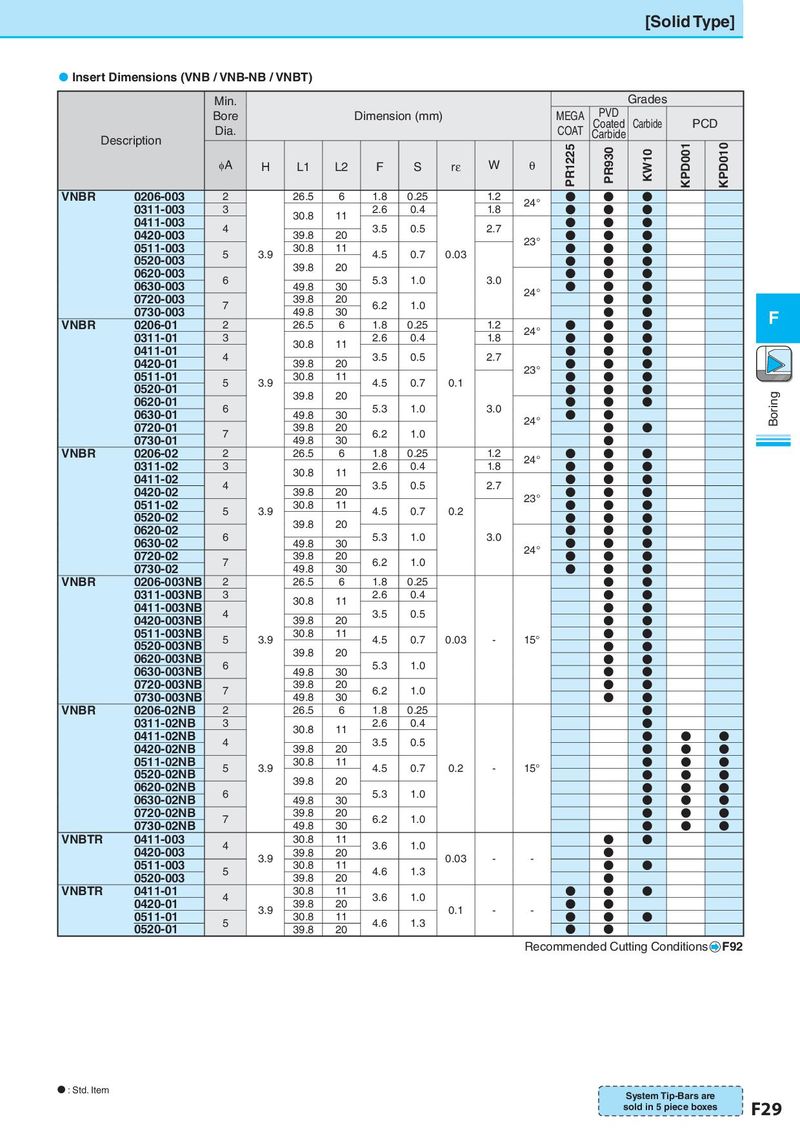

[Solid Type]  Insert Dimensions (VNB / VNB-NB / VNBT) Min. Grades Bore Dimension (mm) MEGA PVD Coated Carbide PCD Dia. COAT Carbide Description PR1225 PR930 KPD001 KPD010 φA H L1 L2 F S rε W θ KW10 VNBR 0206-003 2 26.5 6 1.8 0.25 1.2 24° ● ● ● 0311-003 3 30.8 11 2.6 0.4 1.8 ● ● ● 0411-003 4 3.5 0.5 2.7 ● ● ● 0420-003 39.8 20 23° ● ● ● 0511-003 5 3.9 30.8 11 4.5 0.7 0.03 ● ● ● 0520-003 39.8 20 ● ● ● 0620-003 6 5.3 1.0 3.0 ● ● ● 0630-003 49.8 30 24° ● ● ● 0720-003 7 39.8 20 6.2 1.0 ● ● 0730-003 49.8 30 ● ● F VNBR 0206-01 2 26.5 6 1.8 0.25 1.2 24° ● ● ● 0311-01 3 30.8 11 2.6 0.4 1.8 ● ● ● 0411-01 4 3.5 0.5 2.7 ● ● ● 0420-01 39.8 20 23° ● ● ● 0511-01 5 3.9 30.8 11 4.5 0.7 0.1 ● ● ● 0520-01 39.8 20 ● ● ● Boring 0620-01 6 5.3 1.0 3.0 ● ● ● 0630-01 49.8 30 24° ● ● 0720-01 7 39.8 20 6.2 1.0 ● ● 0730-01 49.8 30 ● VNBR 0206-02 2 26.5 6 1.8 0.25 1.2 24° ● ● ● 0311-02 3 30.8 11 2.6 0.4 1.8 ● ● ● 0411-02 4 3.5 0.5 2.7 ● ● ● 0420-02 39.8 20 23° ● ● ● 0511-02 5 3.9 30.8 11 4.5 0.7 0.2 ● ● ● 0520-02 39.8 20 ● ● ● 0620-02 6 5.3 1.0 3.0 ● ● ● 0630-02 49.8 30 24° ● ● ● 0720-02 7 39.8 20 6.2 1.0 ● ● ● 0730-02 49.8 30 ● ● ● VNBR 0206-003NB 2 26.5 6 1.8 0.25 ● ● 0311-003NB 3 30.8 11 2.6 0.4 ● ● 0411-003NB 4 3.5 0.5 ● ● 0420-003NB 39.8 20 ● ● 0511-003NB 5 3.9 30.8 11 4.5 0.7 0.03 - 15° ● ● 0520-003NB 39.8 20 ● ● 0620-003NB 6 5.3 1.0 ● ● 0630-003NB 49.8 30 ● ● 0720-003NB 7 39.8 20 6.2 1.0 ● ● 0730-003NB 49.8 30 ● ● VNBR 0206-02NB 2 26.5 6 1.8 0.25 ● 0311-02NB 3 30.8 11 2.6 0.4 ● 0411-02NB 4 3.5 0.5 ● ● ● 0420-02NB 39.8 20 ● ● ● 0511-02NB 5 3.9 30.8 11 4.5 0.7 0.2 - 15° ● ● ● 0520-02NB 39.8 20 ● ● ● 0620-02NB 6 5.3 1.0 ● ● ● 0630-02NB 49.8 30 ● ● ● 0720-02NB 7 39.8 20 6.2 1.0 ● ● ● 0730-02NB 49.8 30 ● ● ● VNBTR 0411-003 4 30.8 11 3.6 1.0 ● ● 0420-003 3.9 39.8 20 0.03 - - ● 0511-003 5 30.8 11 4.6 1.3 ● ● 0520-003 39.8 20 ● VNBTR 0411-01 4 30.8 11 3.6 1.0 ● ● ● 0420-01 3.9 39.8 20 0.1 - - ● ● 0511-01 5 30.8 11 4.6 1.3 ● ● ● 0520-01 39.8 20 ● ● Recommended Cutting Conditions F92 N : Std. Item System Tip-Bars are sold in 5 piece boxes F29
