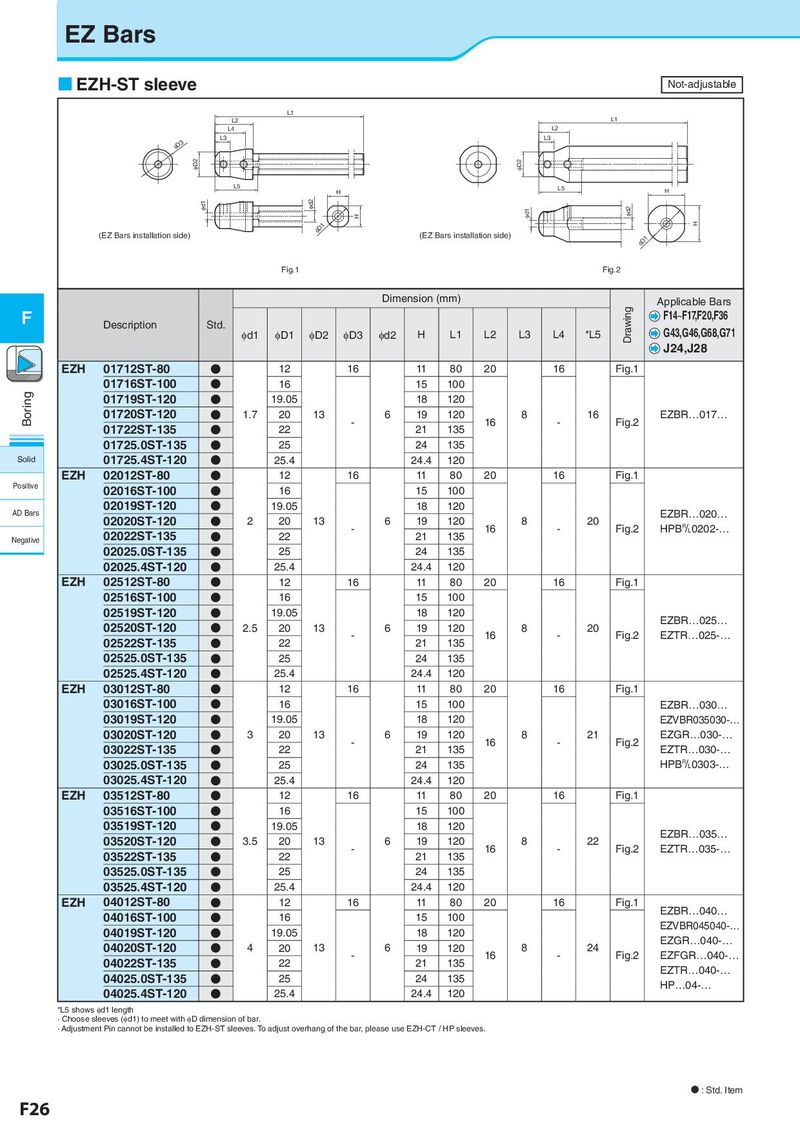

EZ Bars  EZH-ST sleeve Not-adjustable L1 L2 L1 L4 L2 φD3 L3 L3 φD2 φD2 L5 L5 H H φd1 φd2 φd1 φd2 H φD1 H (EZ Bars installation side) (EZ Bars installation side) φD1 Fig.1 Fig.2 Dimension (mm) Applicable Bars F Description Std. Drawing F‌ 14~F17,F20,F36 φd1 φD1 φD2 φD3 φd2 H L1 L2 L3 L4 *L5 ‌G43,G46,G68,G71 J24,J28 EZH 01712ST-80 ● 12 16 11 80 20 16 Fig.1 01716ST-100 ● 16 15 100 Boring 01719ST-120 ● 19.05 18 120 01720ST-120 ● 1.7 20 13 - 6 19 120 16 8 - 16 Fig.2 EZBR…017… 01722ST-135 ● 22 21 135 01725.0ST-135 ● 25 24 135 Solid 01725.4ST-120 ● 25.4 24.4 120 EZH 02012ST-80 ● 12 16 11 80 20 16 Fig.1 Positive 02016ST-100 ● 16 15 100 AD Bars 02019ST-120 ● 19.05 18 120 EZBR…020… 02020ST-120 ● 2 20 13 - 6 19 120 16 8 - 20 Fig.2 HPB&0202-… Negative 02022ST-135 ● 22 21 135 02025.0ST-135 ● 25 24 135 02025.4ST-120 ● 25.4 24.4 120 EZH 02512ST-80 ● 12 16 11 80 20 16 Fig.1 02516ST-100 ● 16 15 100 02519ST-120 ● 19.05 18 120 EZBR…025… 02520ST-120 ● 2.5 20 13 - 6 19 120 16 8 - 20 Fig.2 EZTR…025-… 02522ST-135 ● 22 21 135 02525.0ST-135 ● 25 24 135 02525.4ST-120 ● 25.4 24.4 120 EZH 03012ST-80 ● 12 16 11 80 20 16 Fig.1 03016ST-100 ● 16 15 100 EZBR…030… 03019ST-120 ● 19.05 18 120 EZVBR035030-… 03020ST-120 ● 3 20 13 - 6 19 120 16 8 - 21 Fig.2 EZGR…030-… 03022ST-135 ● 22 21 135 EZTR…030-… 03025.0ST-135 ● 25 24 135 HPB&0303-… 03025.4ST-120 ● 25.4 24.4 120 EZH 03512ST-80 ● 12 16 11 80 20 16 Fig.1 03516ST-100 ● 16 15 100 03519ST-120 ● 19.05 18 120 EZBR…035… 03520ST-120 ● 3.5 20 13 - 6 19 120 16 8 - 22 Fig.2 EZTR…035-… 03522ST-135 ● 22 21 135 03525.0ST-135 ● 25 24 135 03525.4ST-120 ● 25.4 24.4 120 EZH 04012ST-80 ● 12 16 11 80 20 16 Fig.1 EZBR…040… 04016ST-100 ● 16 15 100 EZVBR045040-… 04019ST-120 ● 19.05 18 120 EZGR…040-… 04020ST-120 ● 4 20 13 - 6 19 120 16 8 - 24 Fig.2 EZFGR…040-… 04022ST-135 ● 22 21 135 EZTR…040-… 04025.0ST-135 ● 25 24 135 HP…04-… 04025.4ST-120 ● 25.4 24.4 120 *L5 shows φd1 length · Choose sleeves (φd1) to meet with φD dimension of bar. · Adjustment Pin cannot be installed to EZH-ST sleeves. To adjust overhang of the bar, please use EZH-CT / HP sleeves. N : Std. Item F26
