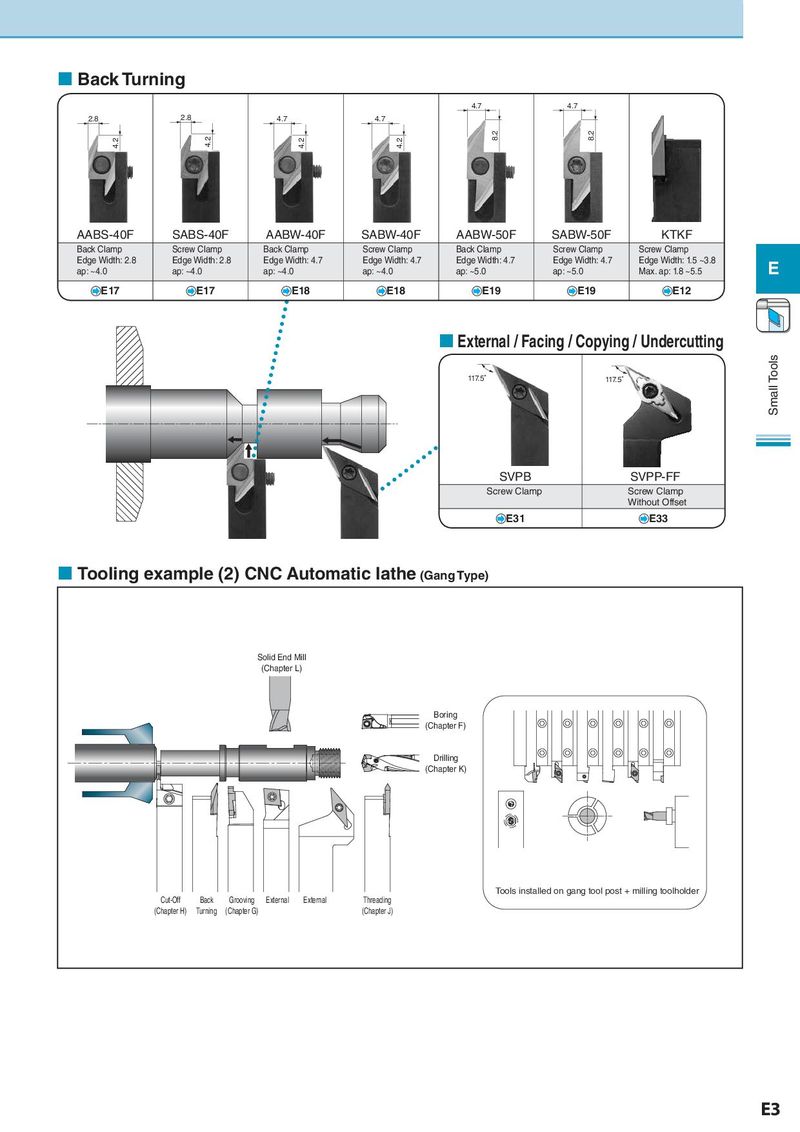

¢ Back Turning 4.7 4.7 2.8 2.8 4.7 4.7 4.2 4.2 4.2 4.2 8.2 8.2 AABS-40F SABS-40F AABW-40F SABW-40F AABW-50F SABW-50F KTKF Back Clamp Screw Clamp Back Clamp Screw Clamp Back Clamp Screw Clamp Screw Clamp Edge Width: 2.8 Edge Width: 2.8 Edge Width: 4.7 Edge Width: 4.7 Edge Width: 4.7 Edge Width: 4.7 Edge Width: 1.5 ~3.8 E ap: ~4.0 ap: ~4.0 ap: ~4.0 ap: ~4.0 ap: ~5.0 ap: ~5.0 Max. ap: 1.8 ~5.5 E17 E17 E18 E18 E19 E19 E12 ¢ External / Facing / Copying / Undercutting 117.5˚ 117.5˚ Small Tools SVPB SVPP-FF Screw Clamp Screw Clamp Without Offset E31 E33 ¢ Tooling example (2) CNC Automatic lathe (Gang Type) Solid End Mill (Chapter L) Boring (Chapter F) Drilling (Chapter K) Tools installed on gang tool post + milling toolholder Cut-Off Back Grooving External External Threading (Chapter H) Turning (Chapter G) (Chapter J) E3
